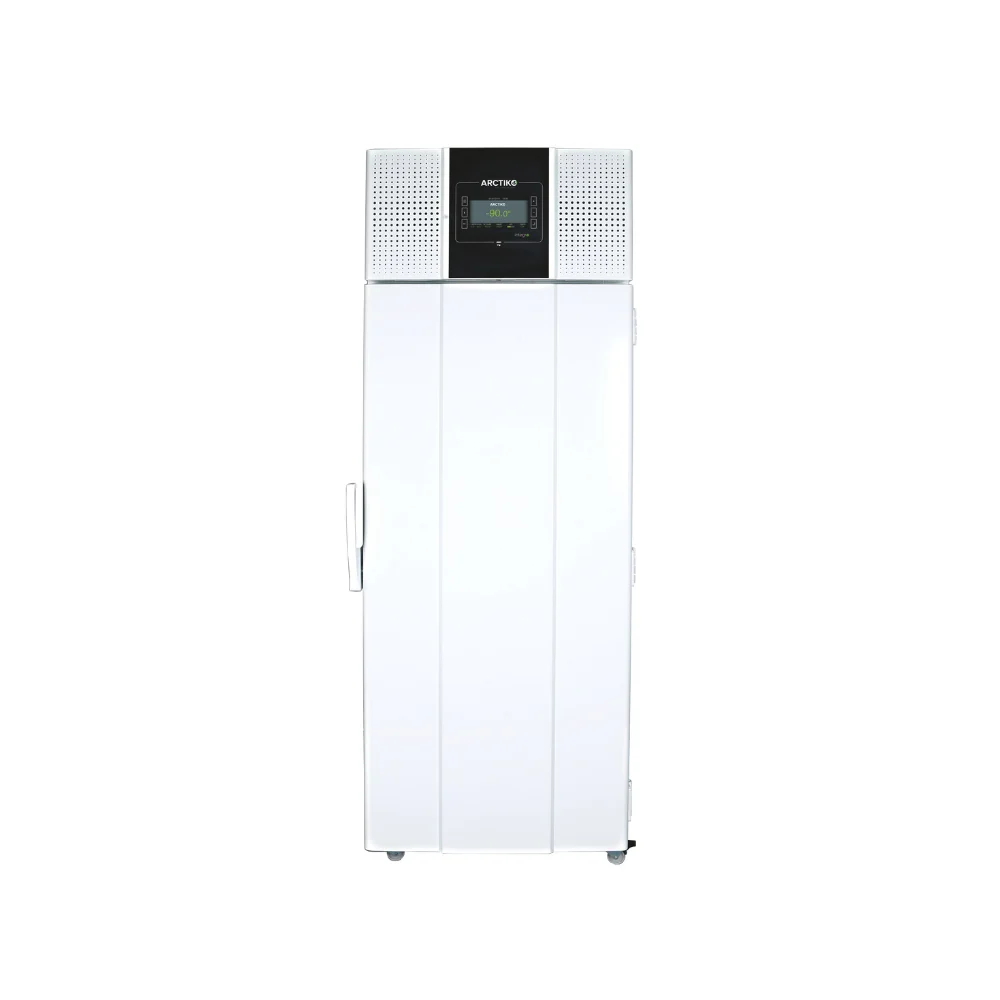

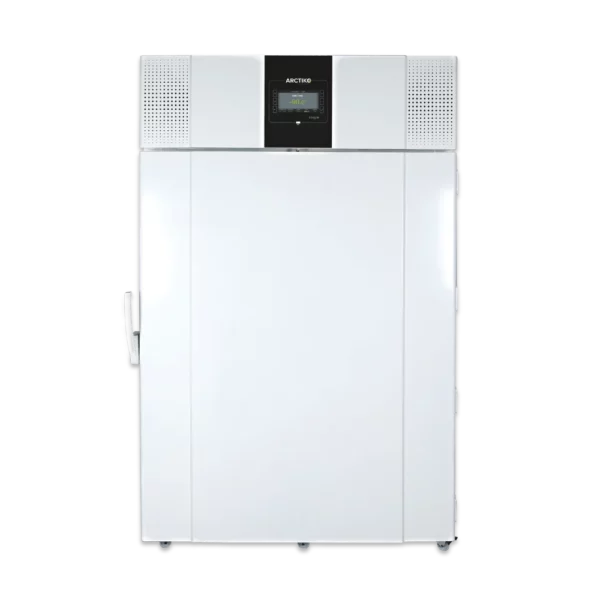

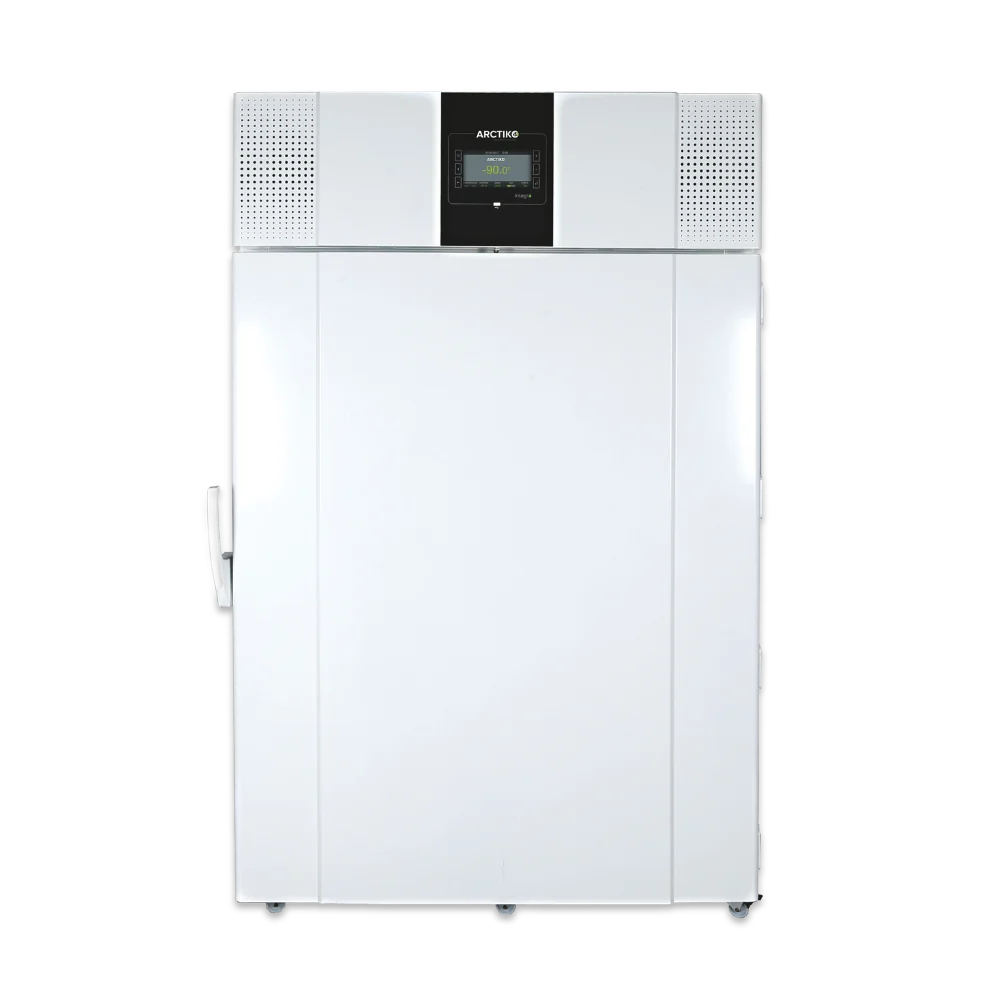

Ultralow Freezer -86°C with Advanced Dual Compressor Technology

The Ultralow Freezer -86°C series by Arctiko—including models P830 MV, P620 MV, P510 MV, and P400 MV—delivers unmatched sample protection and energy efficiency for demanding laboratories across South Africa. With advanced Dual Compressor Technology, these ULT freezers maintain ultra-low temperatures even if one compressor fails. Therefore, your sensitive materials remain secure without interruption.

Rapid Cooling with Reliable Performance

Thanks to its powerful cooling system and thick insulation, the freezer reaches -80 °C in under four hours. Even when the door is opened frequently, the internal temperature recovers quickly and remains stable. Furthermore, Arctiko’s TRUE DUAL™ technology ensures the temperature stays at -70 °C should a compressor malfunction—providing peace of mind for critical research environments.

Eco-Friendly and Energy Efficient

These models use natural refrigerants and include an ECO mode, significantly reducing energy consumption and environmental impact. In addition, vacuum-insulated panels and automatic pressure equalization valves help maintain internal stability while improving day-to-day usability.

MultiVoltage Compatibility for Flexibility

Designed for global compatibility, every Ultralow Freezer -86°C operates within a wide voltage range (100–240V). Moreover, the integrated V700 controller provides intelligent system diagnostics, energy optimization tools, and real-time alarm functions, making it easier to maintain a stable storage environment at all times.

Our Range

More sizes available. Please refer to brochure.

User-Centric Storage Design

These freezers feature Integraline perforated shelves that adjust easily and can support up to 50 kg per level. As a result, they accommodate a wide range of sample types and containers. Whether you work in pharmaceuticals, clinical research, or academia, the internal layout supports your specific workflow requirements.

Accessories

Explore high-performance cold storage solutions with Apex Scientific—your trusted supplier of laboratory equipment in South Africa. Visit our product range or read our Insights article: How to Select the Best Ultra-Low Freezer for Your Laboratory Needs.

Model	P830 MV	P620 MV	P510 MV	P400 MV
Item code	1000050	1000049	1000048	1000047
Temperature range (˚C)	-40˚C to -86˚C
Max. ambient temperature (˚C)	32
Capacity (L)	815	614	500	381
Exterior dimensions WxDxH (mm)	1285 x 859,5 x 1999	1035 x 859,5 x 1999	895 x 859,5 x 1999	755 x 859 x 1999
Interior dimensions WxDxH (mm)	996 x 620 x 1320	746 x 620 x 1320	606 x 620 x 1320	466 x 620 x 1320
Weight (KG)	307	247	233	217
Insulation (mm)	120
Cooling technology	Dual system / static
Controller model / probe type	V700 / PT100
Power supply (V)	100 to 240
Frequency (Hz)	50 / 60
Power consumption (kWh/24h)	8,9	8,4	8,1	7,3

Controller Specifications

Alarm (displayed as text, not codes)	Yes
Visual / acoustic alarm	Yes / Yes
Power failure alarm	Yes
Adjustable high / low-temperature alarm	Yes / Yes
Open door alarm	Yes
Probe failure alarm	Yes
Low battery alarm	Yes
Compressor failure alarm	Yes
Battery backup for alarms (approx. hrs.)	72
Voltage-free contact for remote alarm (e.g. GSM alarm module)	Yes
Electronic data logger	Yes
RS 485 port	Optional
USB port for software update & data download	Yes
Temperature chart recorder	Optional
Display type	7’’ touch screen
Number of optional reference probes	0 (1 reference probe included as standard)
Password protection for turning unit on / off	Yes
Temperature graph on display	Yes

Other Features

Model	P830 MV	P620 MV	P510 MV	P400 MV
Vacuum release port	Yes
Antifreeze function	Yes
Access port for external probe etc. (int. diameter mm)	12
Light	Yes
Lock with key	Yes
Castors (total pcs) / castors with brake (pcs)	5 / 2	4 / 2
Sub lids / inner doors (pcs)	4
Fixed shelves (pcs) / adjustable shelves (pcs)	1 / 2
Max. no. of shelves (pcs) / recommended max. no. of shelves (pcs)	5 / 5
Max. load per shelf (kg)	50
Total capacity of 50 mm boxes 9×9 dividers (pcs)	616	440	352	264
Total capacity of 75 mm boxes 9×9 dividers (pcs)	392	280	224	168
Total capacity of 96 mm boxes 9×9 dividers (pcs)	280	200	160	120
Max. capacity of samples in Arctiko 10×10 boxes (pcs)	61.6	44.2	35.2	26.4

SKU	Description
1000047	ULUF P400/MV Ultra low temperature freezer, Multi-voltage, 381L, Temp range -40/-86°C
1000048	ULUF P510/MV Ultra low temperature freezer, Multi-voltage, 496L, Temp range -40/-86°C
1000049	ULUF P620/MV Ultra low temperature freezer, Multi-voltage, 610L, Temp range -40/-86°C
1000050	ULUF P830/MV Ultra low temperature freezer, Multi-voltage, 815L, Temp range -40/-86°C

SKU	Description	Upright Drawer Rack	Upright Side Rack	Max Qty	Total 2″ boxes
1000047	Large Upright Freezer ULUF P400 MV	UDR50-45 + UDR50-46	USR50-45 + USR50-46	6 + 6	264
1000048	Large Upright Freezer ULUF P510 MV	UDR50-45 + UDR50-46	USR50-45 + USR50-46	8 + 8	352
1000049	Large Upright Freezer ULUF P620 MV	UDR50-45 + UDR50-46	USR50-45 + USR50-46	10 + 10	440
1000050	Large Upright Freezer ULUF P830 MV	UDR50-45 + UDR50-46	USR50-45 + USR50-46	14 + 14	616
