Compact MultiVoltage ULT - Arctiko Ultralow Freezer -86°C

Ultralow Freezer -86°C for Space-Sensitive Laboratory Applications

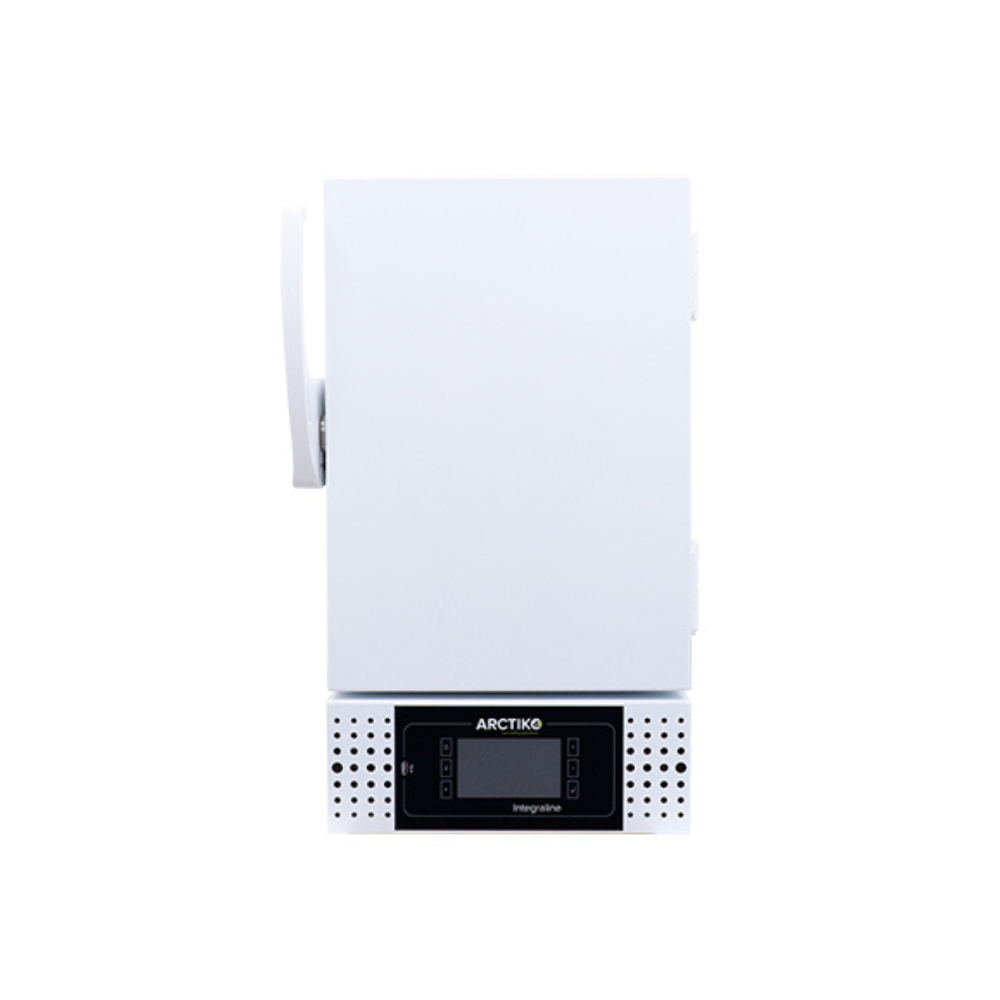

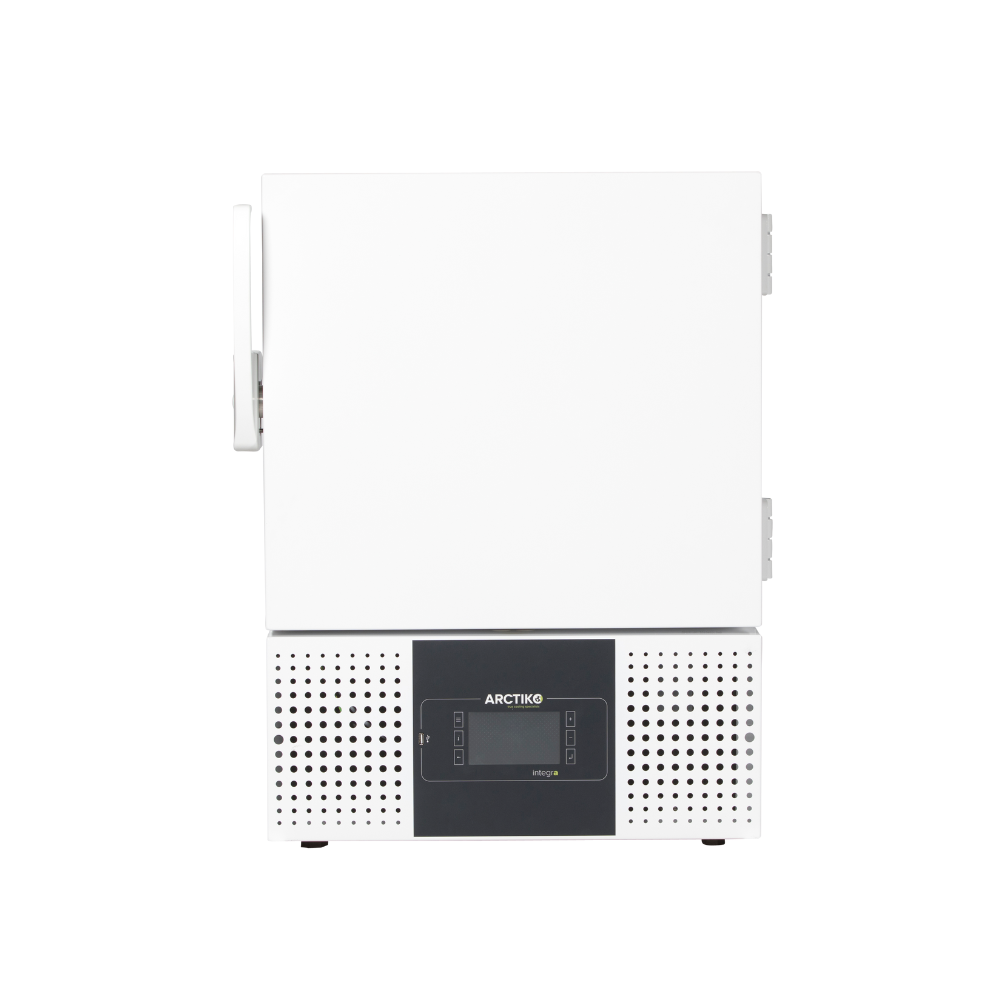

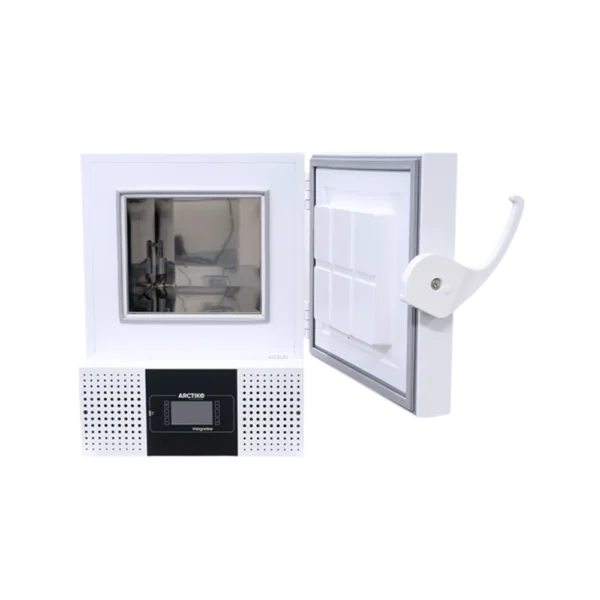

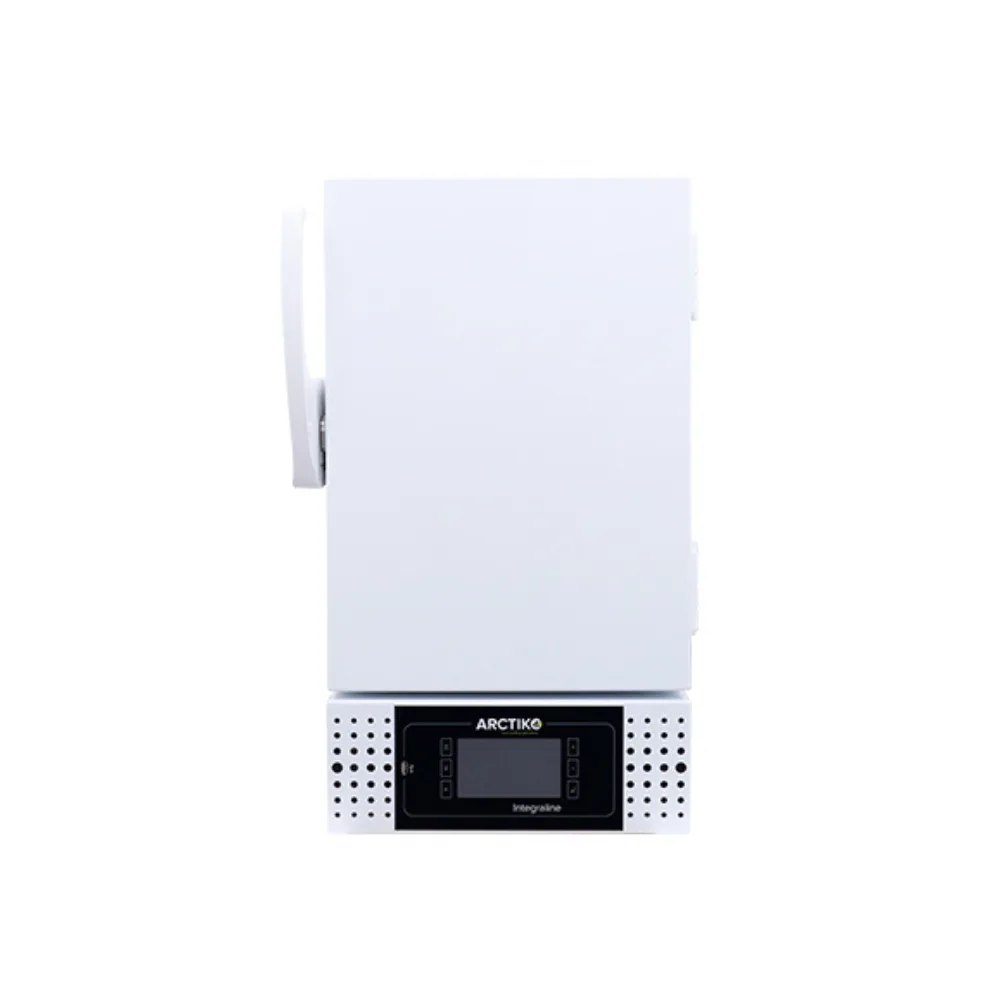

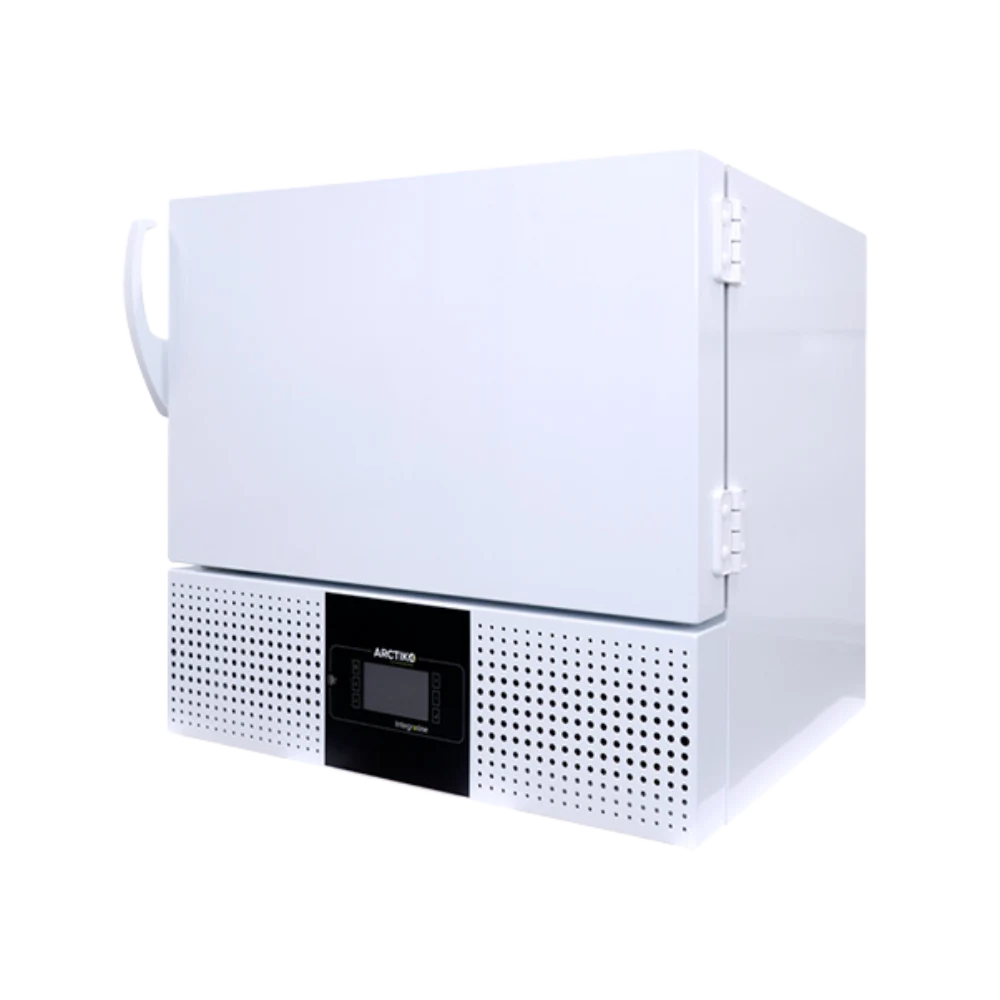

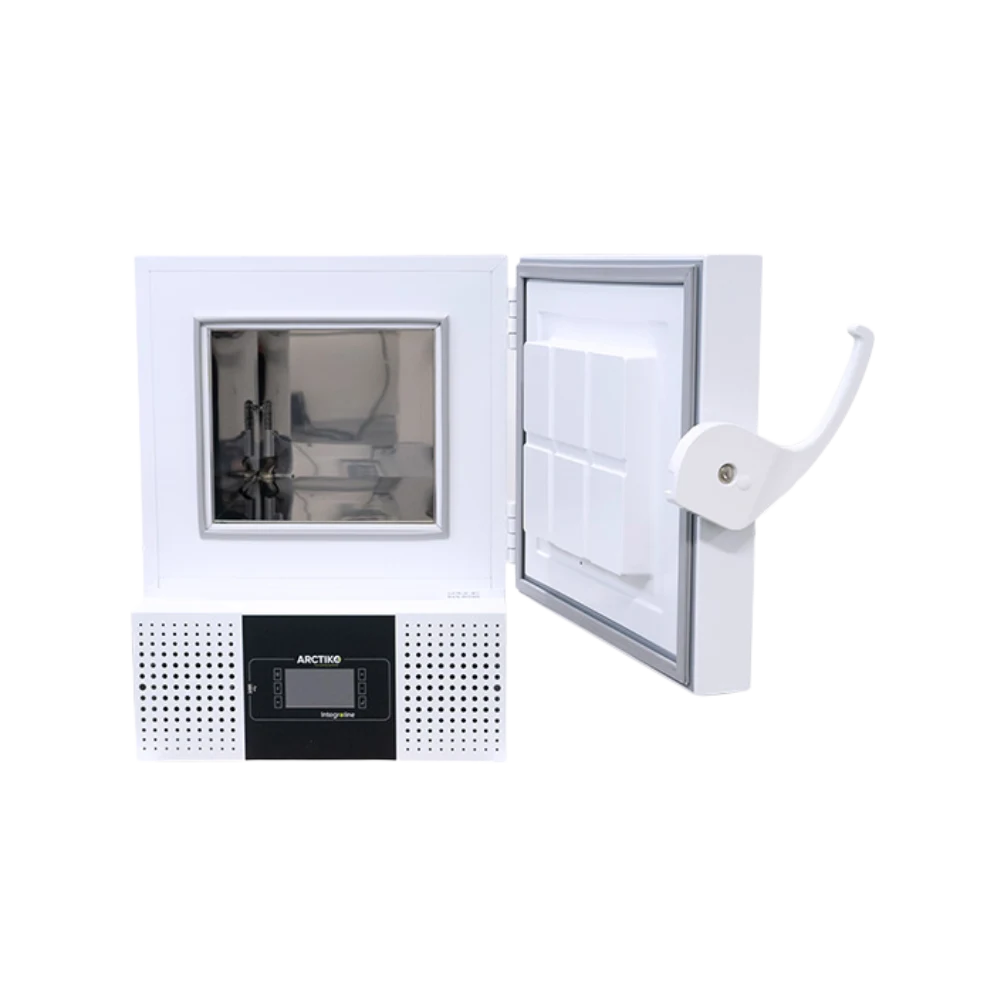

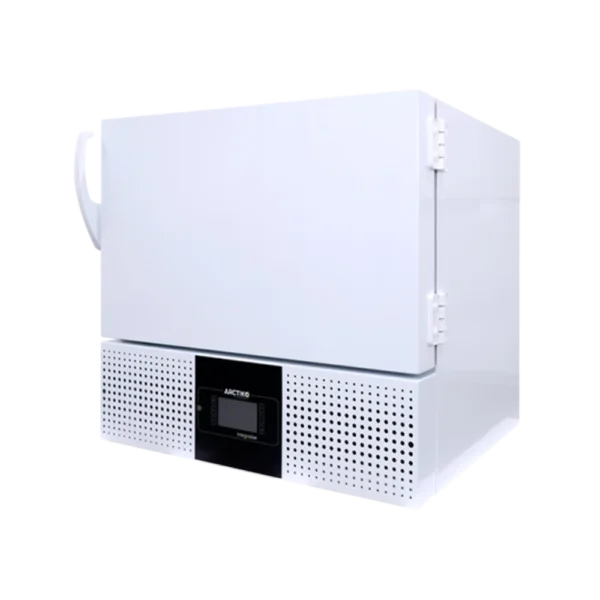

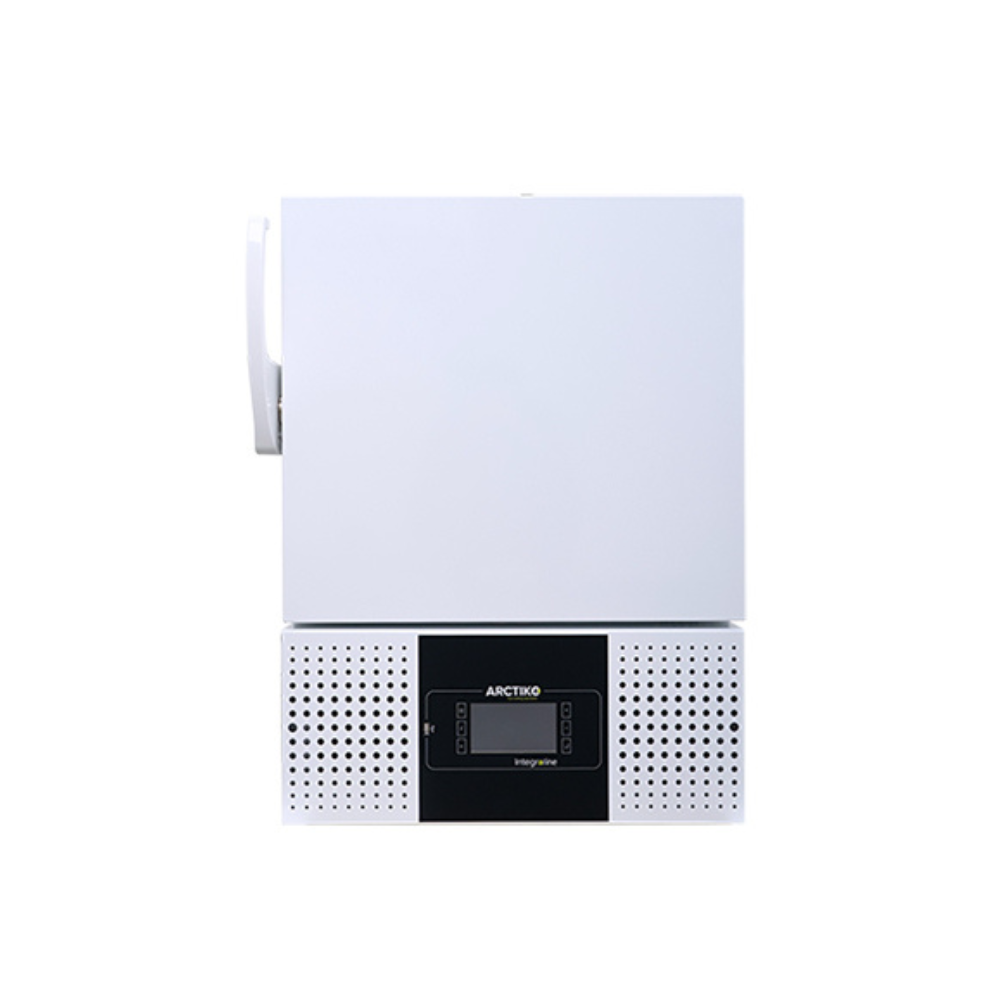

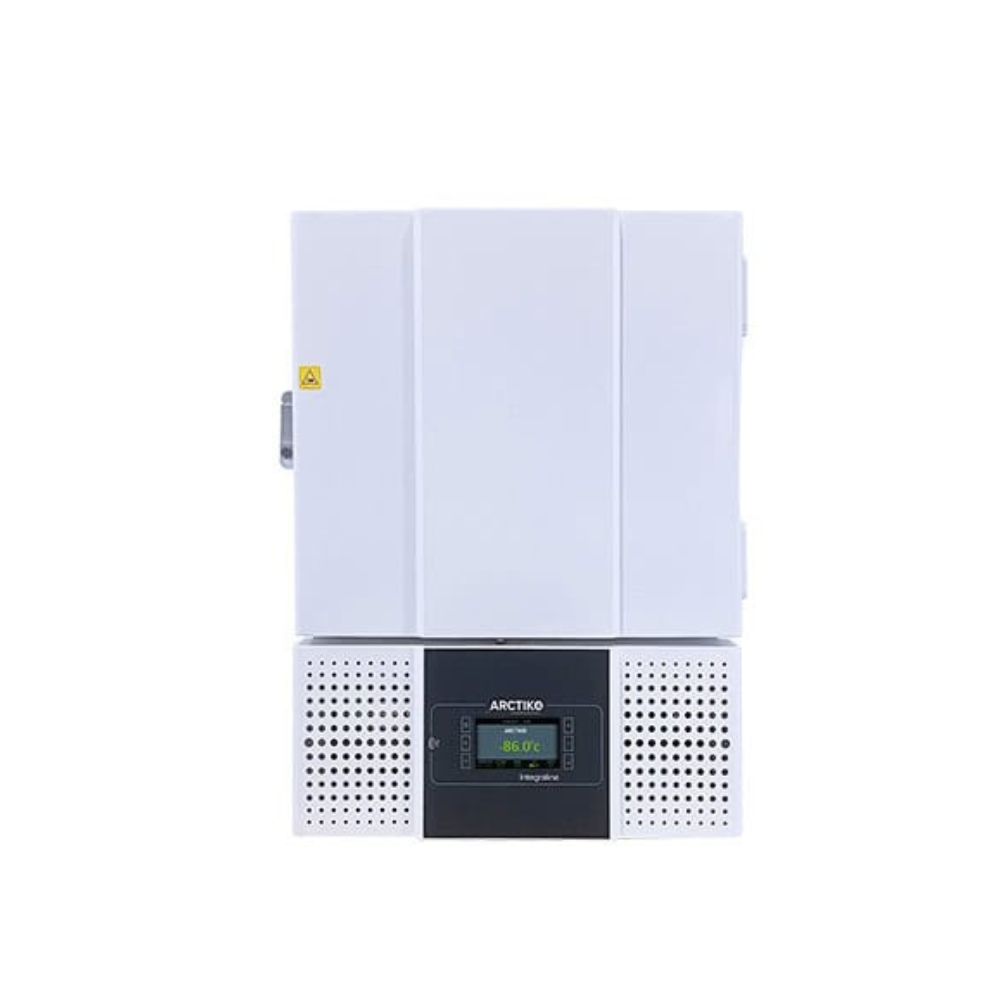

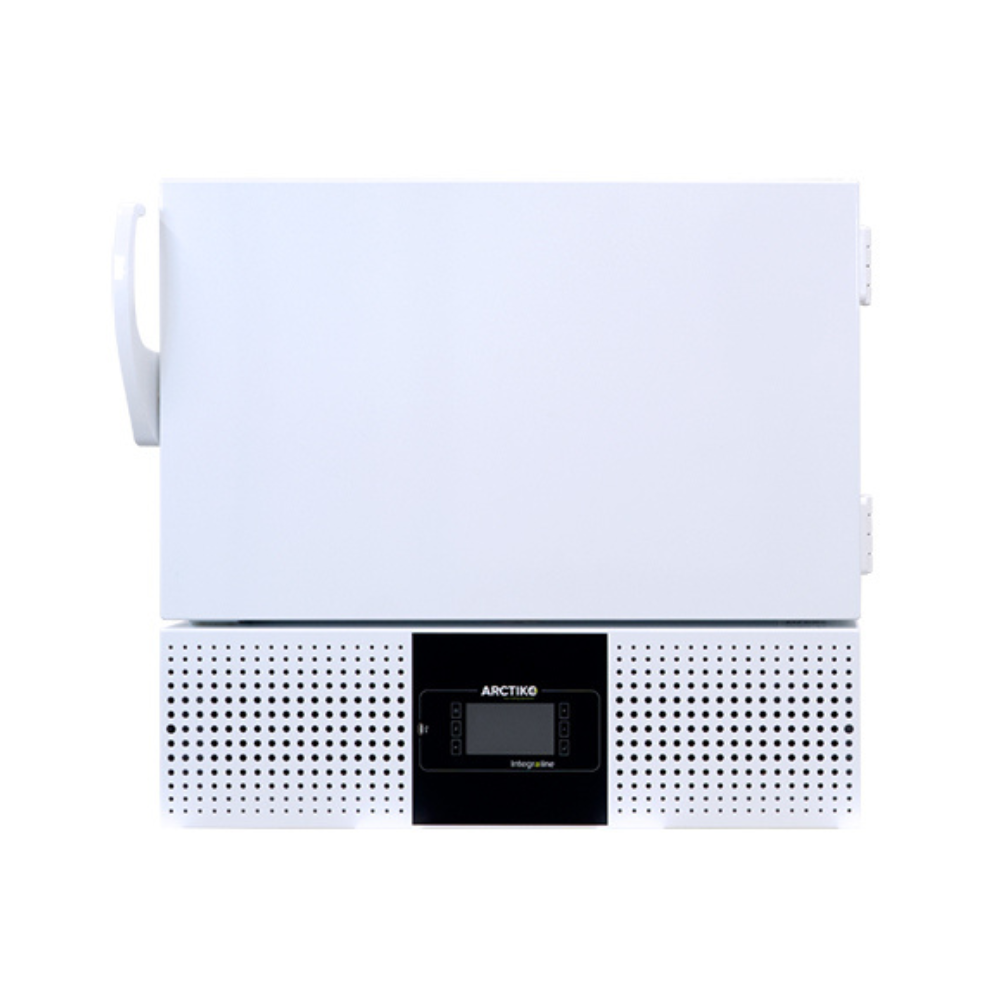

Ultralow Freezer -86°C models from Arctiko—including the ULUF P10 MV, P50 MV, P65 MV, and P90 MV—are precision-engineered for laboratories in South Africa. These freezers provide high-performance cold storage in a compact design. Moreover, their small footprint makes them ideal for undercounter installation or placement near workstations. This ensures convenient access to valuable samples while saving critical bench space.

Energy-Efficient Cooling with Advanced Uniformity

Built with Arctiko’s innovative single compressor technology, these freezers offer stable -86 °C cooling and excellent temperature uniformity. Even with frequent door openings, the performance remains consistent. Additionally, natural refrigerants and vacuum-insulated panels contribute to ultra-low Global Warming Potential (GWP). Thanks to ECO mode, these ULT models further reduce energy usage—supporting sustainable lab operations without compromising performance.

Reliable and Quiet Operation for Busy Labs

The direct cooling system ensures precise temperature control across all internal zones. A heated door frame prevents ice buildup, which protects the gasket and maintains consistent operating conditions. Furthermore, the simple structure of the cooling system allows for easy maintenance and less heat dissipation. As a result, the freezer operates quietly—ideal for maintaining a productive, low-noise research environment.

Our Range

Designed for Modern Laboratory Needs

Whether you are storing critical biological samples or sensitive reagents, these ULT freezers deliver dependable performance. They are tailored for laboratories with limited space. The built-in self-diagnostic alarm system provides peace of mind by constantly verifying system functionality. This ensures maximum protection for your samples.

Accessories

Explore the full range of laboratory equipment available at Apex Scientific, your trusted partner in South Africa. For expert tips, read our article on the Insights page: How to Select the Best Ultra-Low Freezer for Your Laboratory Needs.

Model	P10 MV	P50 MV	P65 MV	P90 MV
Item Code	1000001-01	1000002-01	100051-01	1000003-01
Temperature Range (°C)	-25°C to -86°C	-25°C to -86°C	-40°C to -86°C	-25°C to -86°C
Max. Ambient Temperature (°C)	25°C	32°C	25°C	32°C
Capacity (L)	7	50	54	88
Exterior Dimensions WxDxH (mm)	447 x 709 x 731	657 x 778 x 836	646 x 704 x 820	937 x 778 x 836
Interior Dimensions WxDxH (mm)	147 x 142 x 307	357 x 443 x 307	360 x 484 x 319	637 x 443 x 307
Weight (KG)	63	82	80	102
Insulation (mm)	120
Cooling Technology	Single System / StaticInverter / MV
Controller Model / Probe Type	V500/ PT100
Power Supply (V)	110 – 230
Frequency (Hz)	50 / 60
Power Consumption (KWH/24H)	2.35	3,48	4.2	4,67
AMP (A)	2,2A (110V) /1,1A (230V)	3,0 (110V) / 1,5A (230V)	3,2 (110V) / 1,7A (230V)	3,0 (110V) /1,5A (230V)
Power (Watt)	190	280	300	280
Horse Power (HP)	1/2	3/4	3/4	1

Controller Specifications

Alarm (Display As Text – Not Codes)	Yes
Visual / Acoustic Alarm	Yes / Yes
Power Failure Alarm	Yes
Adjustable High/Low Temperature Alarm	Yes / Yes
Open Door Alarm	Yes
Probe Failure Alarm	Yes
Low Battery Alarm	Yes
Compressor Failure Alarm	Yes
Battery Backup for Alarms (Approx. hrs.)	72
Voltage Free Contact For Remote Alarm (E.G. GSM Alarm Module)	Yes
Electronic Data Logger	Yes
RS 485 Port	Optional
USB Port For Software Update & Data Download	Yes
Temperature Chart Recorder	Optional (External Mounting)
Display Type	5″ with Touch Screen
Number Of Optional Reference Probes	2
Password Protection for Turning On/Off	Optional
Temperature Graph on Display	Yes

Other Features

Model	P10 MV	P50 MV	P65 MV	P90 MV
Automatic Defrost	No
Antifreeze Function	No
Vacuum Release Port	Yes	Yes	No	Yes
Access Port For External Probe Etc. (Int. Diameter mm)	20
Light	No
Lock With Key	Yes
Castors (Total Pcs) / Castors With Brake (Pcs)	0/ Optional	1 / 31	1 / 31	1 / 31
Fixed Feet (Pcs) / Levelling Feet (Pcs)	0 / 4	0 / 2
Sub Lids Or Inner Doors (Pcs)	No
Reversible Door(s)	No
Total Capacity of 50 mm boxes 9×9 dividers (pcs)	6	36	36	72
Total Capacity of 75 mm boxes 9×9 dividers (pcs)	5	24	24	48
Total Capacity of 96mm boxes 9×9 dividers (pcs)	4	18	18	36

SKU	Description
1000001-01	ULUF P10/MV Ultra low temperature freezer, Multi-voltage, 7L, Temp range -25/-86°C
1000002-01	ULUF P50/MV Ultra low temperature freezer, Multi-voltage, 50L, Temp range -25/-86°C
1000003-01	ULUF P65/MV Ultra low temperature freezer, Multi-voltage, 54L, Temp range -25/-86°C
1000051	ULUF P90/MV Ultra low temperature freezer, Multi-voltage, 88L, Temp range -25/-86°C

SKU	Description	Upright Drawer Rack	Upright Side Rack	Max Qty	Total 2″ boxes
1000001-01	ULUF P10 MV	–	–	–	5
1000002-01	ULUF P50 MV	UDR50-35	USR50-35	2	30
100051-01	ULUF P65 MV	UDR50-35	USR50-35	2	30
1000003-01	ULUF P90 MV	UDR50-35	USR50-35	4	60
