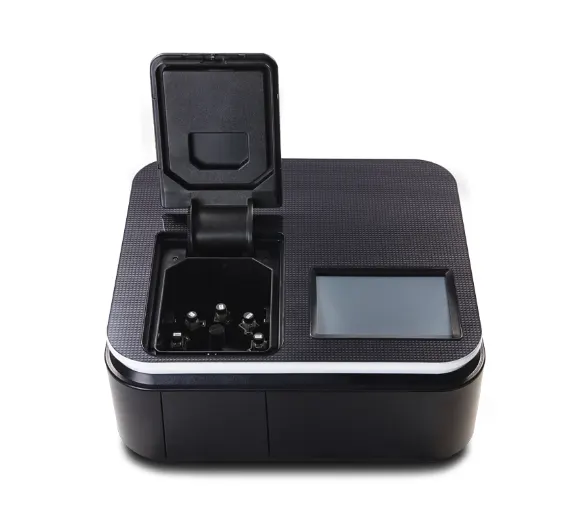

Spectrophotometer – OPTIZEN POP-V

The OPTIZEN POP-V Visible Spectrophotometer by K-Lab is a compact single-beam spectrophotometer that delivers stable performance. With four measurement modes—Photometric, Quantitative, Spectrum, and Kinetics—users can easily select the best mode for their needs.

Its intuitive touch screen and embedded software simplify operation, while features like real-time temperature monitoring enhance functionality. Apex Scientific offers this advanced laboratory equipment in South Africa, ideal for versatile sample measurement. Explore our range and visit our Insights Page for more information.

The OPTIZEN POP-V Visible Spectrophotometer by K-Lab is a state-of-the-art single-beam spectrophotometer designed for reliable and precise laboratory analysis. Apex Scientific presents this advanced laboratory equipment in South Africa, ensuring researchers have access to high-quality tools for their analytical needs. The OPTIZEN POP-V is compact and cost-effective, making it an excellent choice for various laboratory applications.



Superior Performance and Versatility

This instrument features a powerful ARM Cortex™ A8 processor with 16GB of storage, providing stable performance for measuring transmittance and absorbance. The OPTIZEN POP-V includes four distinct measurement modes: Photometric, Quantitative, Spectrum, and Kinetics. Users can easily select the appropriate mode based on their specific requirements.



User-Friendly Interface

The OPTIZEN POP-V is equipped with an intuitive touch screen interface and embedded software that enhances usability. Key functionalities include:

  • Real-Time Temperature Monitoring: The built-in temperature measurement system allows users to check and record the temperature during analysis.
  • Multi-Cell Measurement: Automate the analysis of multiple samples simultaneously using the multi-cell feature.
  • Voice Guidance: Convenient voice service and volume control improve user experience.
  • PC Connectivity: Link the device to a PC with OPTIZEN View for seamless data management.



Enhanced Functionality

The OPTIZEN POP-V also offers graphical help services to assist users in navigating its features. Users can quickly access their favorite measurements, ensuring efficient operation. Additionally, real-time monitoring of equipment status, including lamp warm-up conditions and accumulated usage time, enhances reliability during experiments.

The VIS Spectrophotometer – OPTIZEN POP-V is a trusted tool for laboratories across South Africa, empowering scientists to achieve their analytical objectives with confidence. If you are looking for other products browse our range at Apex Scientific.

Photometrics SystemSingle-beam type
Light Source(s)Tungsten halogen lamp
DetectorSilicon Photodiode
Spectral Bandwidth< 1.8 nm
Wavelength Range340 to 1100 nm
Wavelength Display (setting)0.1 nm
Wavelength Accuracy<± 0.5 nm
Wavelength Repeatability<± 0.2 nm
Wavelength Slew Rate7,800 nm/min
Scanning Speed(Max)4,000 nm/min
Photometric Range3 Abs
Photometric DisplayAbsorbance : -3 A to 3 A
Transmittance : 0% to 300%
Photometric Accuracy<± 0.005 Abs at 0.0 to 0.5 Abs <± 1% Abs at 0.50 to 2.0 Abs (NIST SRM 930e)
Baseline Stability<0.002 Abs/h (700 nm, after one hour warm-up)
Baseline Flatness<0.003 Abs rms (340 to 1,050 nm, after one hour warm-up)
Stray Light< 0.05 % (at 340 nm with 0.5% NaNO2)
Photometric noise< 0.0002 Abs rms (at 700 nm)
MonochromatorCzerny-Turner Monochromator
Standard Cell HolderMulti-cell (8 cells)
Operating System (OS)Android
Display7-inch (Resolution: 1280 x 800)
Control OptionsStand-alone
PC
Dimensions(W*D*H)433 × 381 × 180 mm
Power RequirementAC 100-240V, 50/60Hz, 140VA
Weight10.5kg
PC Software(optional) View for Windows
ConnectivityRJ45 ethernet (PC, printer)
USB A type * 2 (USB Drive)
RS-232 * 2, USB B type * 1 (Debugging & FW update)
SKUDescription
UNT0009OPTIZEN POP-V Spectrophotometer
