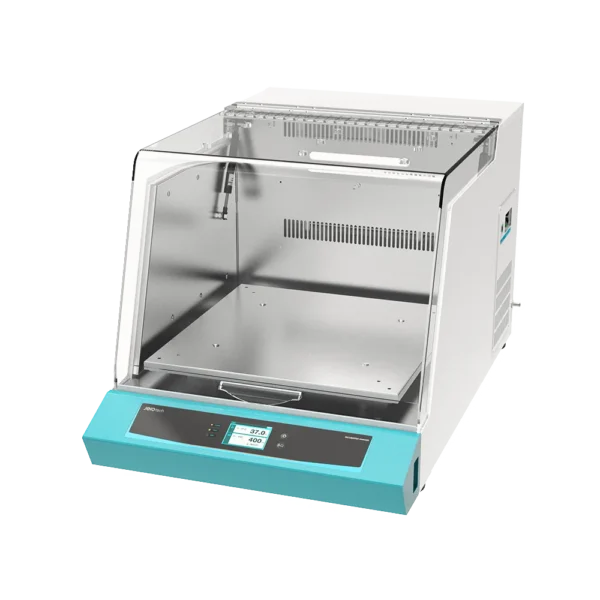

Shaking Incubator – Benchtop

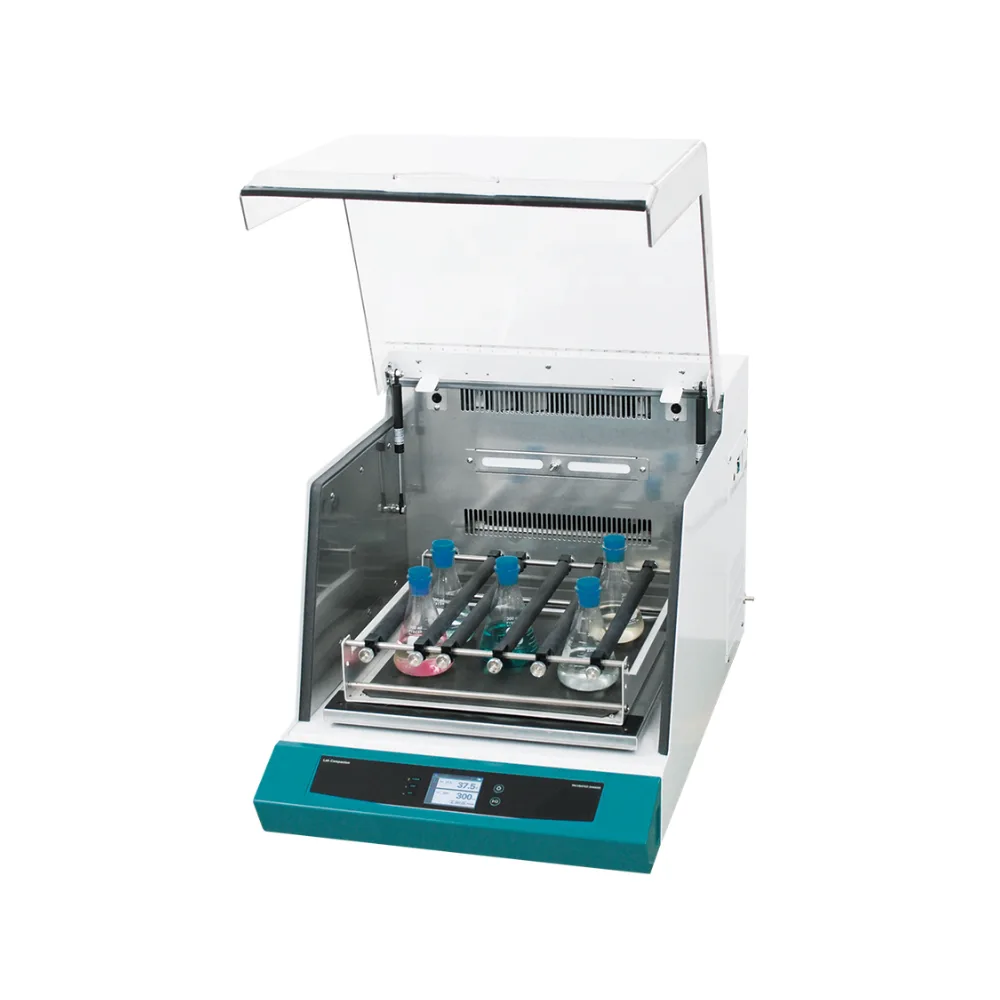

The Benchtop Shaking Incubator by Jeiotech combines advanced technology with user-friendly features, making it an essential piece of laboratory equipment for researchers in South Africa. Its intuitive touch screen LCD controller, complete with easy-to-understand icons and logical menus, simplifies operation. The gas spring lid provides smooth motion for effortless opening and closing.

The platform’s ability to stop at the same position enhances automated dosing and sampling processes. Monitor your experiments anytime, anywhere with the LC Connected mobile app (requires purchase of LC GreenBox). Explore our range of innovative solutions.

The Benchtop Shaking Incubator by Jeiotech is a high-performance solution designed for dynamic laboratory environments in South Africa. Offered by Apex Scientific, this compact unit combines shaking and incubation capabilities to maximize space efficiency. Models IST-3075 and 4075 operate from ambient +5°C to 80°C, while IST-3075R and 4075R include cooling functions from ambient -15°C to 80°C. With a shaking speed of up to 500 rpm and a 19 mm orbital motion, it delivers reliable and consistent mixing for demanding tasks.

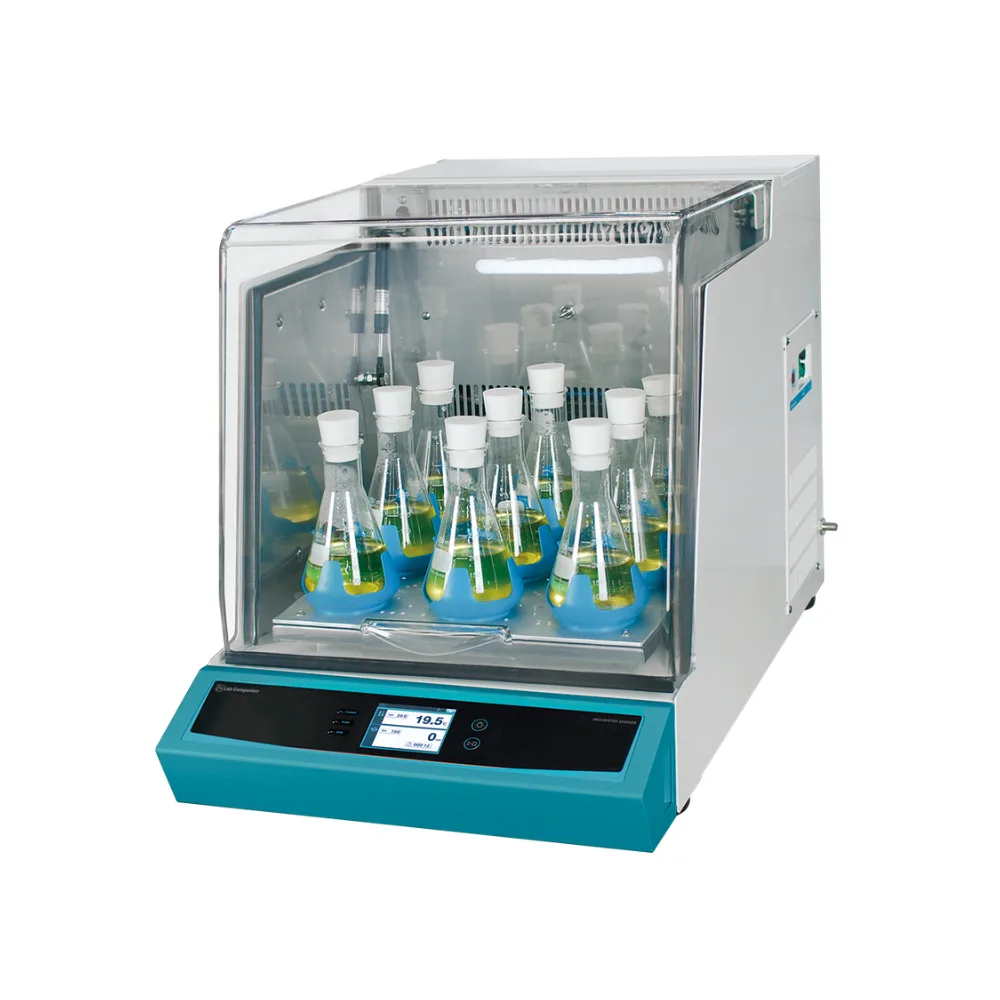

Benchtop Incubated Shaker

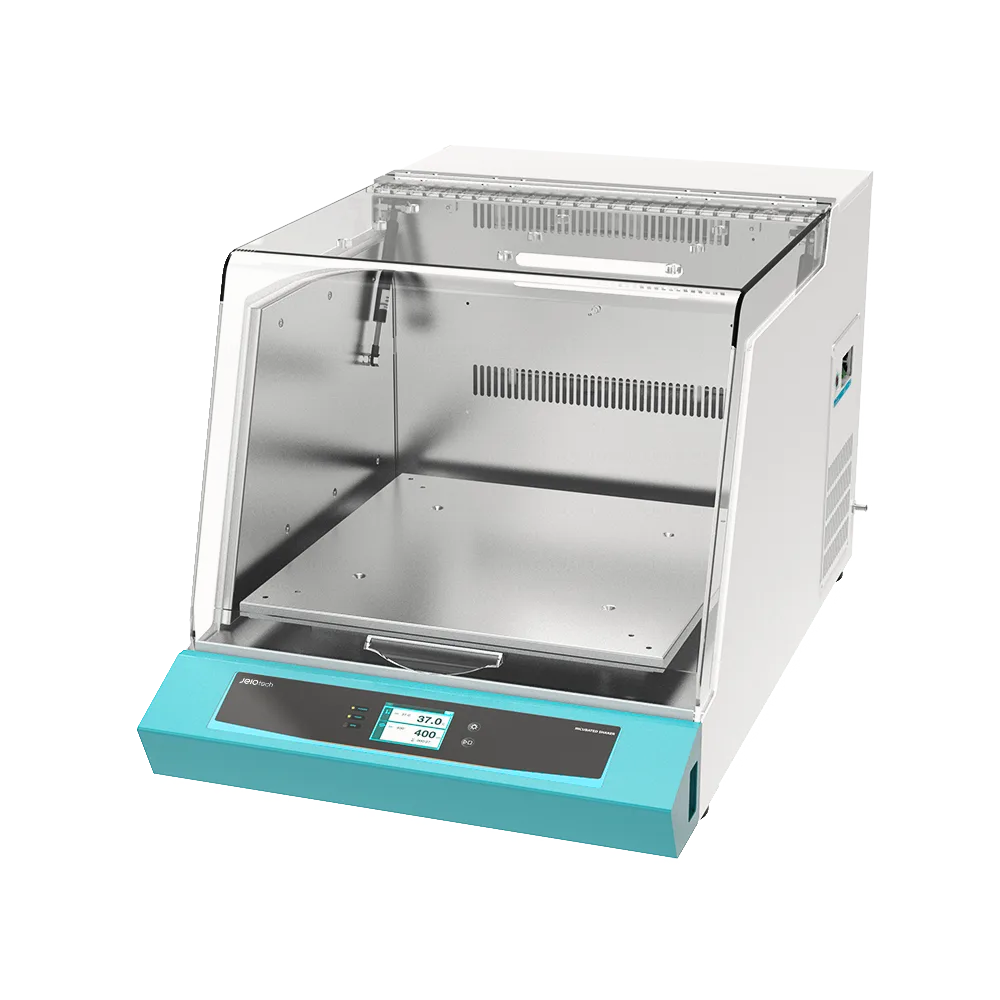

Modern Design
Benchtop Incubated Shaker

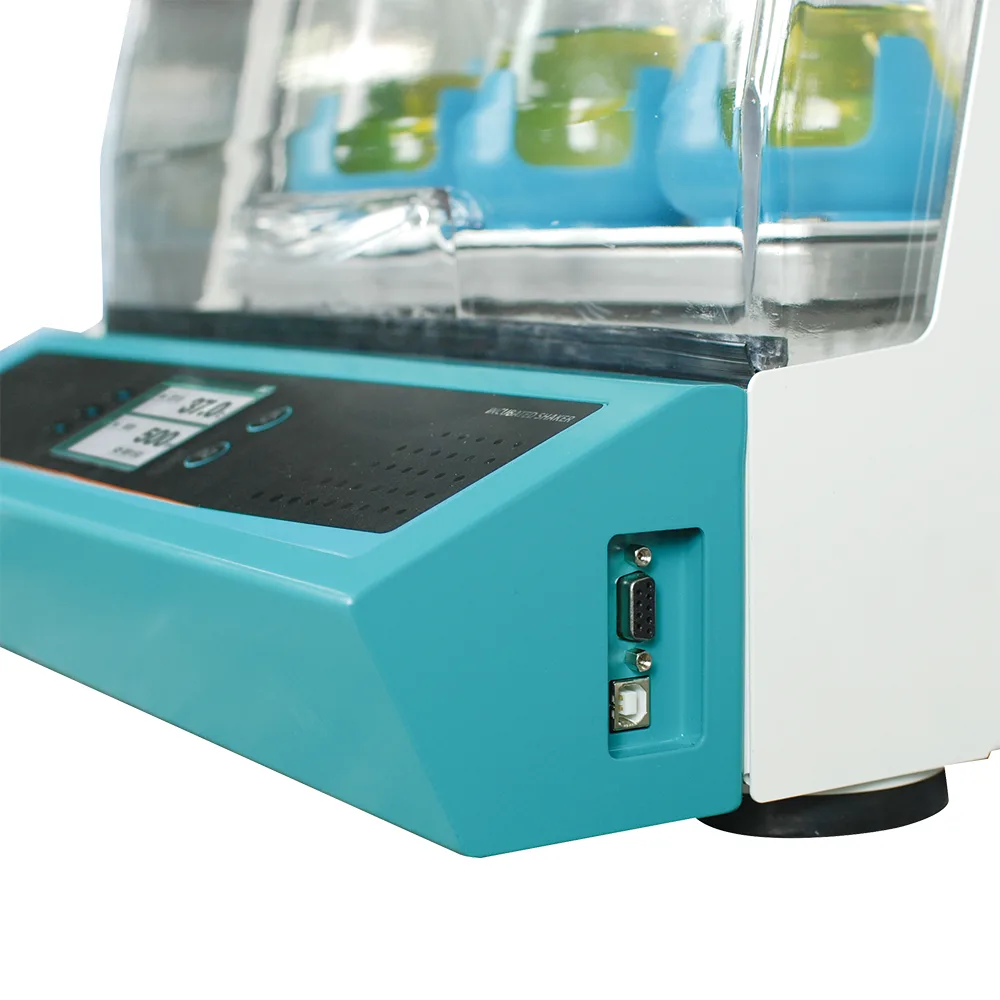

USB Port
Benchtop Incubated Shaker

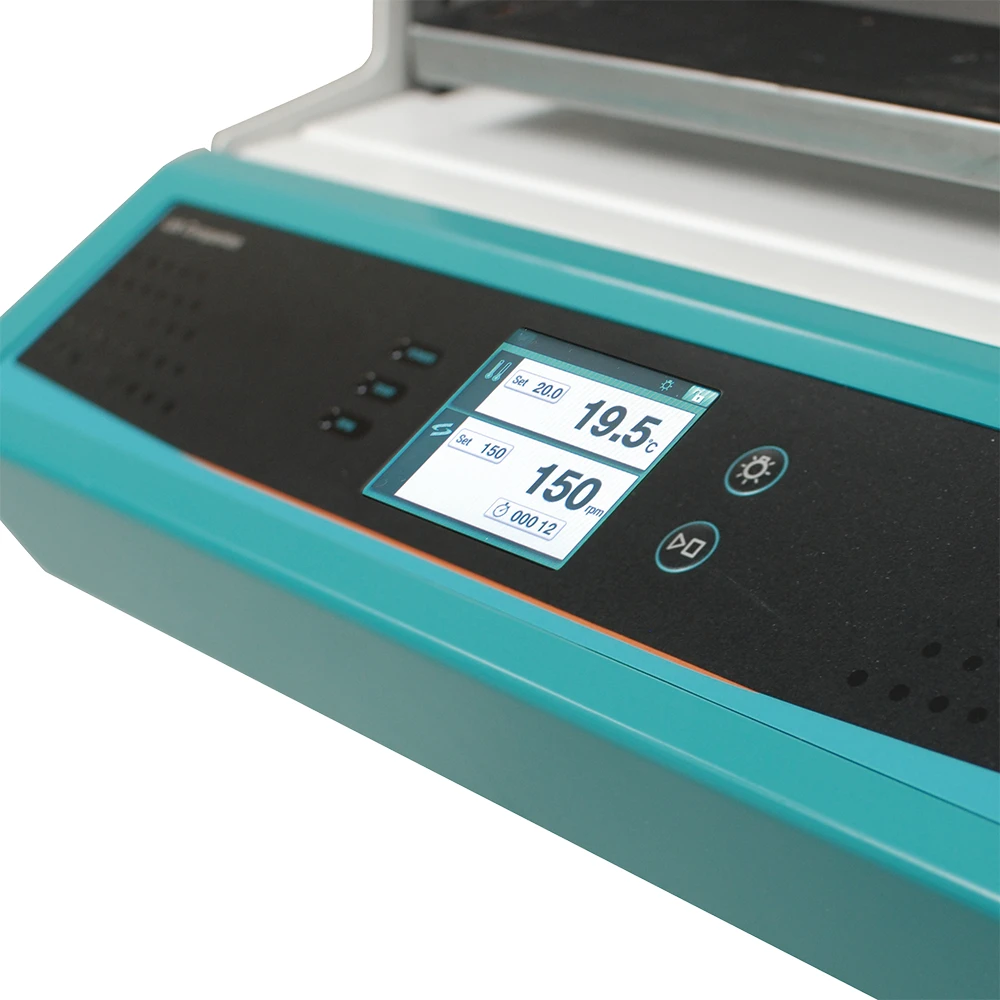

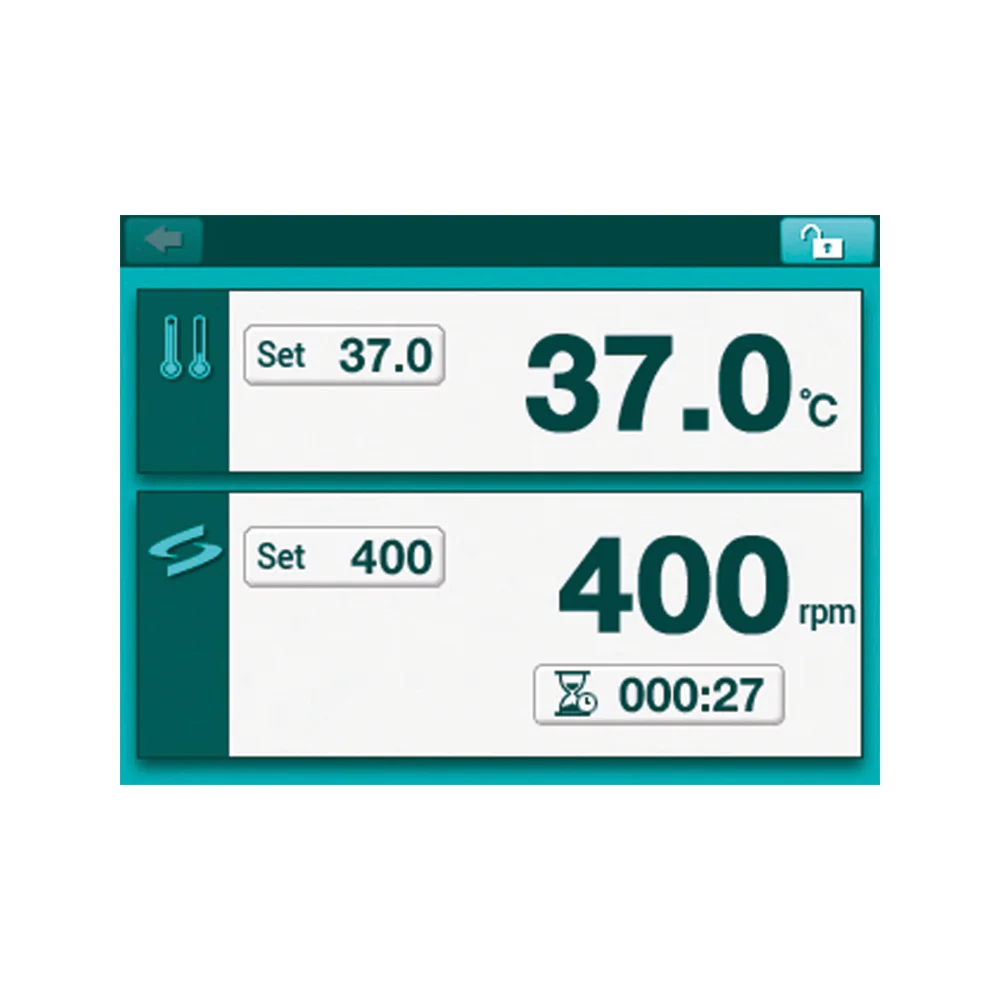

Touch Screen Controller
Benchtop Incubated Shaker

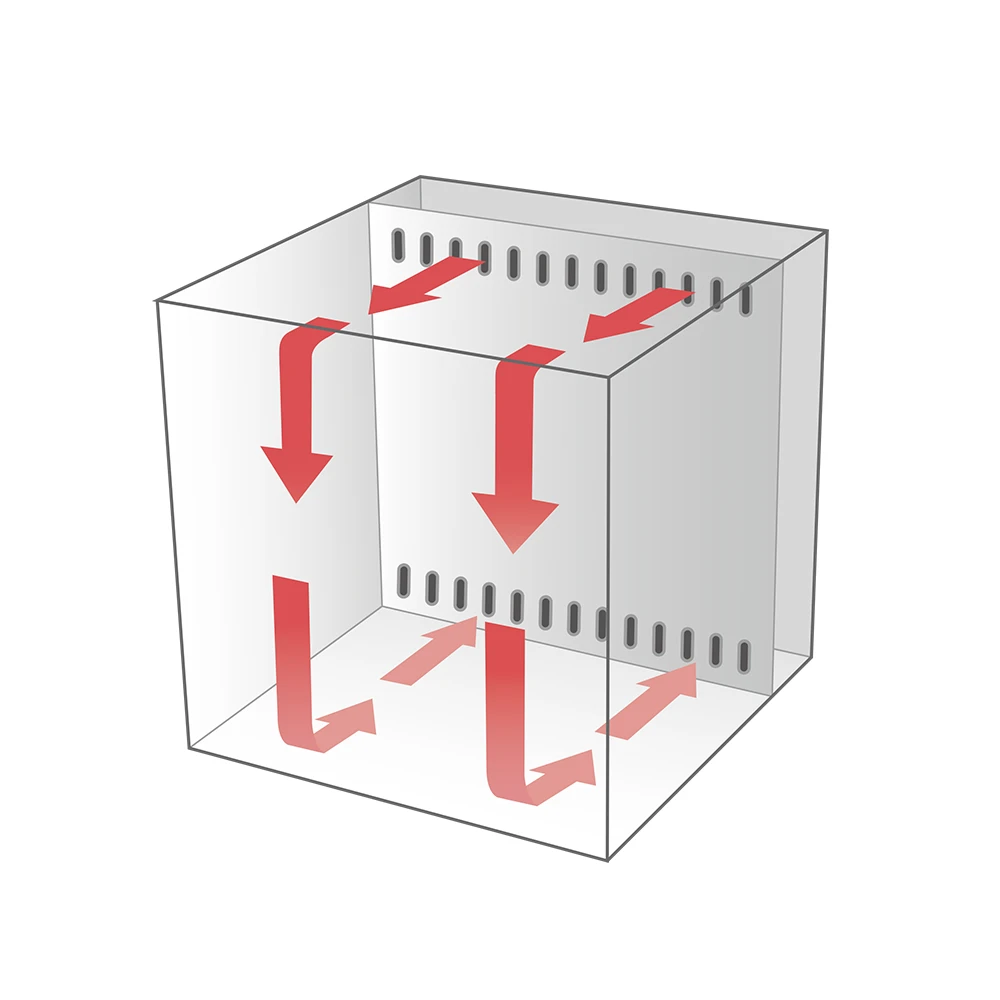

Airflow Pattern



Performance Features

This shaking incubator includes a microprocessor-based PID control system that ensures precise temperature regulation. The system supports three-point calibration and automatic tuning for improved accuracy. Its brushless DC (BLDC) motor generates a smooth, quiet, and powerful shaking motion. Smooth acceleration and deceleration functions prevent spills, protecting samples during operation. A high-velocity fan helps maintain even temperature distribution and speeds up heat recovery after door openings. Additionally, the air-tight silicone door seal improves thermal stability, which is essential for sensitive experiments.



Safety Mechanisms

The unit resumes operation automatically after a power interruption, ensuring continuity in your experiments. It also issues alerts for deviations in temperature or shaking speed. To safeguard your work, over-current protection and a mechanical over-temperature limiter are built in. Refrigerated models use CFC-free refrigerants, aligning with eco-conscious laboratory practices. Audible and visual alarms notify you when the door remains open, helping to maintain a stable internal environment.



Accessories

Accessories



To explore your options further, read our article, Shaking Incubators: The Ultimate Guide to Choosing the Right Laboratory Equipment for Your Needs, available on our insights page. At Apex Scientific, we offer expert advice and a full product range to support your laboratory’s success.

ModelIST-3075IST-3075RIST-4075IST-4075R

Temperature

Range (℃ / ℉)

Amb. +5 to 80

/ Amb. +9 to 176

Amb. -15 (Min. 15) to 80

/Amb. -27 (Min. 27) to 176

Amb. +5 to 80

/ Amb. +9 to 176

Amb. -15 (Min. 15) to 80

/Amb. -27 (Min. 27) to 176

Fluctuationat 37℃ in flask
(±℃ / ℉)

0.1 / 0.18

Variationat 37℃ in flask
(±℃ / ℉)

0.5 / 0.90

Refrigerator (Hp)

1 / 6 HBP

1 / 6 HBP

Shaking system

Motion type

Orbital

Amplitude size (mm / inch, dia.)

19.1 / 0.75

Speed range (RPM)

20 to 500

Accuracy

±1% of set speed (>100rpm) / ±1 (≤100rpm)

Timer

1 min. to 999 hr 59 min.

Max. load (kg / Ibs)

10 / 22.0 at 500 rpm15 / 33.1 at 400 rpm

14 / 30.9 at 500 rpm21 / 46.3 at 400 rpm

Dimension

Volume (L / cu ft)

53 / 1.9

83 / 2.9

Platform (W×D) (mm / inch)

350×350 / 13.8×13.8

450×450 / 17.7×17.7

Interior (W×D×H) (mm / inch)

410×410×320 / 16.1×16.1×12.6

510×510×320 / 20.1×20.1×12.6

Exterior (W×D×H) (mm / inch)

440x785x510 / 17.3×30.9×20.1

540x 890 x510 / 21.3x35x20.1

Net weight (Kg / lbs)

65 / 143.3

73 / 160.9

81 / 178.6

90 / 198.4

Electrical requirements (230V)60Hz, 4A50Hz, 4A60Hz, 5.5A50Hz, 5.5A60Hz, 4A50Hz, 4A60Hz, 5.5A50Hz, 5.5A
Cat. No.AAH

23422K

AAH

23422K

AAH2

3522K

AAH

23522K

AAH

23622K

AAH

23622K

AAH

23722K

AAH2

3722K

Electrical requirements (120V)60Hz, 7.5A60Hz, 10.1A60Hz, 7.5A60Hz, 10.1A
Cat. No.AAH23465UAAH23565UAAH23665UAAH23765U



SKUDescription
AAH23422KIST-3075 Incubated Shaker, 53LT
AAH23522KIST-3075R Incubated Shaker, 53LT, Refrigerated
AAH23622KIST-4075 Incubated Shaker, 83LT
AAH23722KIST-4075R Incubated Shaker, 83L, Refrigerated
