Rotary Evaporator – Strike 385

The Strike 385 Rotary Evaporator by Wiggens is an advanced solution for laboratories in South Africa, ideal for complex distillation and experimental needs. This sophisticated Rotavap features a user-friendly touch screen with a multi-language interface and a turn & push knob for easy operation.

With customizable methods, users can store up to 21 settings for both manual and automatic multistage distillation, streamlining processes effectively. Enhanced safety features, including overheating protection and automatic flask removal during power outages, ensure reliable operation. Explore our range at Apex Scientific or learn more on our Insights page.

The Strike 385 Rotary Evaporator by Wiggens is a high-performance solution for laboratories in South Africa. Built for advanced distillation and demanding applications, it offers upgraded functionality over the STRIKE 285. This rotary evaporator delivers precise, efficient, and safe operation—making it ideal for complex laboratory workflows.



User-Friendly Display

The Strike 385 features a large, multilingual touch screen interface that enhances usability. For added security, the display can be locked. A turn-and-push knob provides intuitive control of key parameters. The multifunctional display shows real-time data including bath temperature, rotation speed, vacuum pressure, vapor temperature, and condenser cooling water temperature.



Advanced Distillation Capabilities

This model supports both manual and automatic multistage distillation, with up to 21 programmable methods. Each method allows for five customizable steps, offering flexibility across various experimental procedures. In addition, the integrated timer enables automatic shutdown at the end of the process, saving time and increasing efficiency.

Our Range

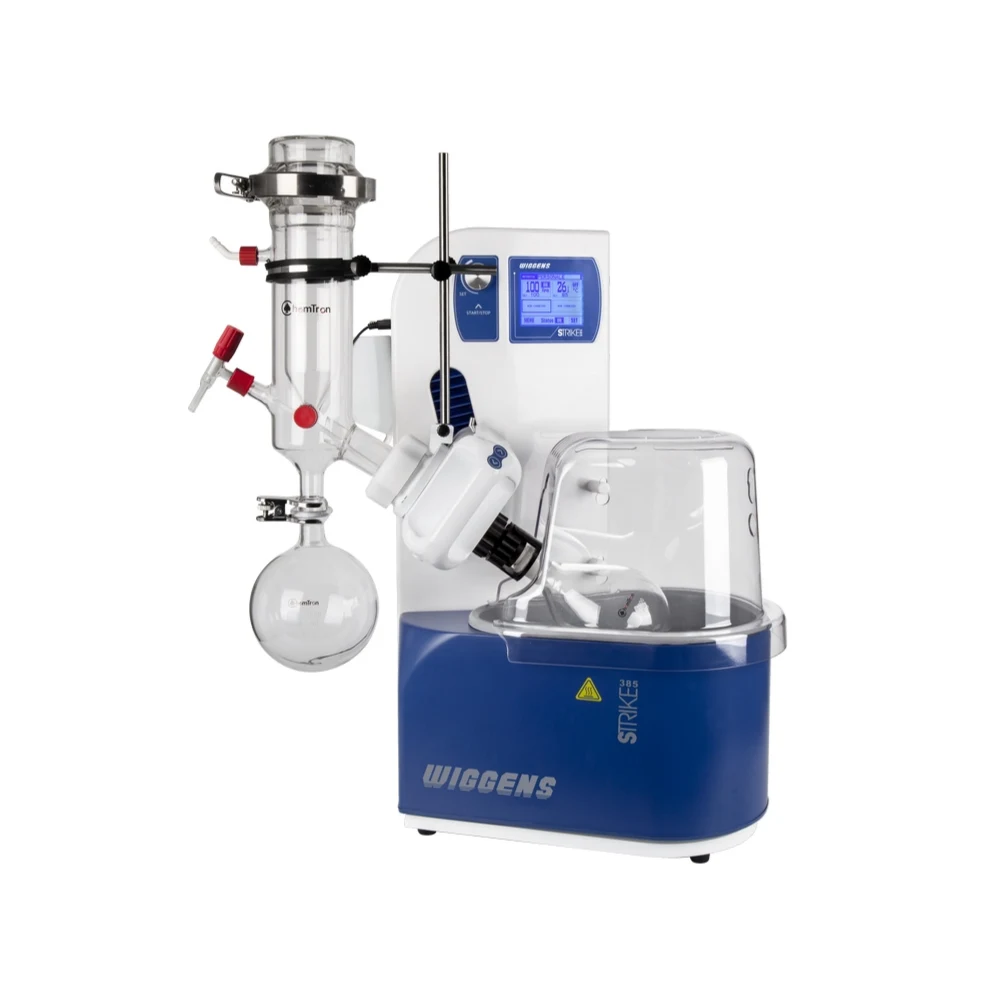

Laboratory Rotary Evaporator Strike 385
Vertical Glassware (Steam Rising)

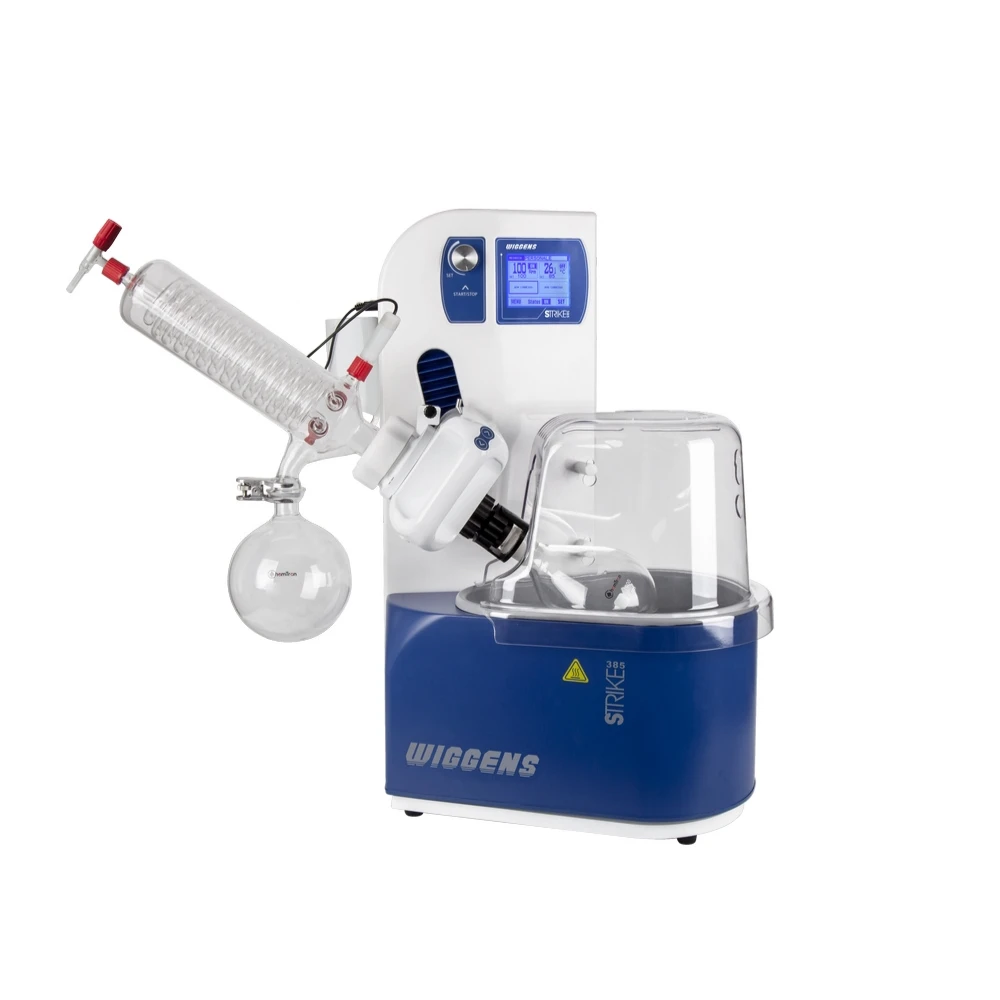

Laboratory Rotary Evaporator Strike 385
Slanting Glassware

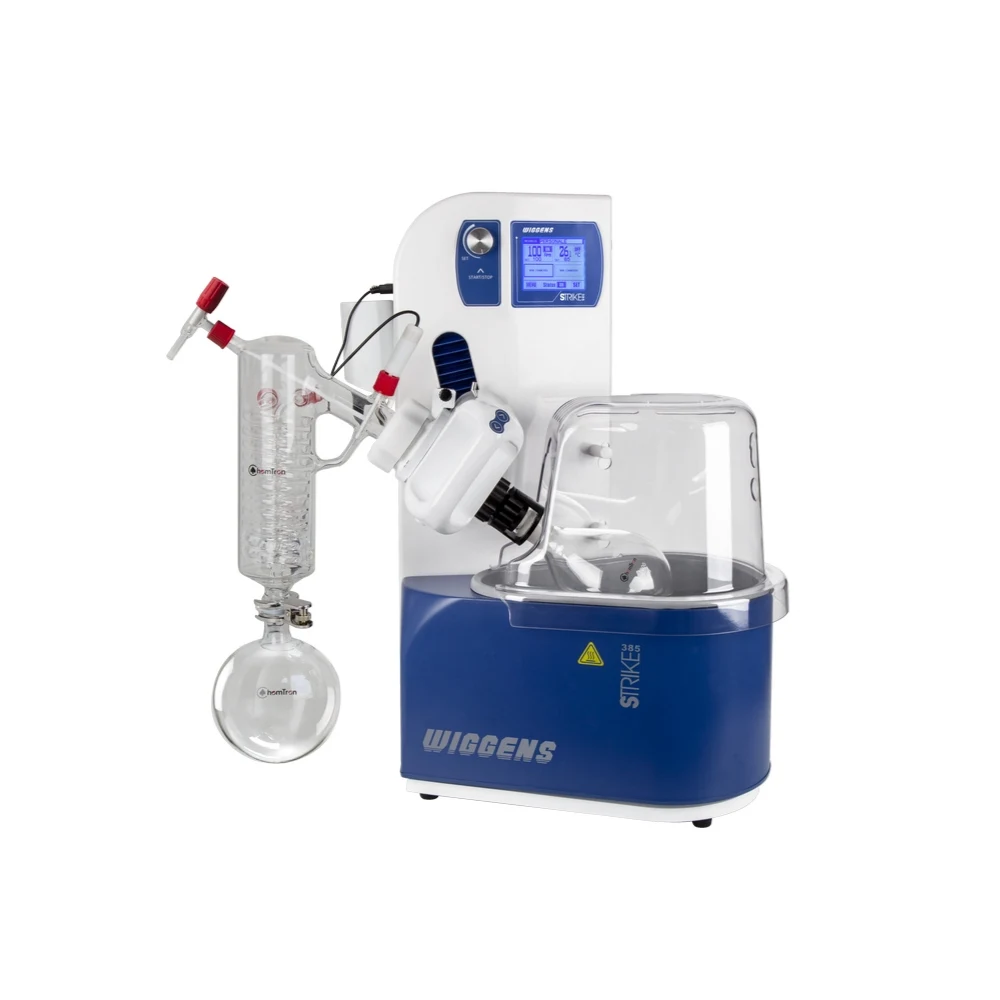

Laboratory Rotary Evaporator Strike 385
Vertical Glassware (Steam Sinking)
Laboratory Rotary Evaporator Strike 385
Dry Ice Glassware

Safety Features

Safety is a key focus of the Strike 385. The heating bath includes overheat and dry-run protection. If a power outage occurs, the automatic electric lift raises the flask from the bath, protecting both users and samples. A removable protective shield is also included with every unit for added operator safety.

Advanced Distillation Made Easy – Strike 385 Rotary Evaporator by Wiggens

The Strike 385 Rotary Evaporator from Wiggens offers a powerful and intuitive distillation solution for research laboratories in South Africa. With a modern touchscreen display, multi-language interface, and a convenient turn-and-push control knob, it simplifies even the most complex workflows. Users can store up to 21 methods for both manual and automated multistage distillation. Safety is prioritised with features like overheating protection and automatic flask lift during power failure, ensuring consistent and secure operation.

Comprehensive Control Settings

The Strike 385 offers detailed control of all major functions, including:

  • Bath Temperature: Adjustable with preheating options for faster start-up.
  • Rotation Speed: Precisely controlled for optimal evaporation rates.
  • Vacuum Settings: Includes advanced controls for allowable fluctuation ranges and vapor temperature monitoring.

Accessories


Looking for more products? Visit our Insights page and read our guide: Rotary Evaporators: Essential Features, Selection Tips, and Applications in the Laboratory.

Technical dataSTRIKE 385
ModelsSlanting glassware, Vertical glassware (Vapor sinking), Vertical glassware (Vapor rising), Dry ice condensation type
GlasswareStandard or plastic-coated glassware
Rotation speed20 to 280 rpm (150W induction motor)
Screen3.5″ monochromatic LCD touch screen
SealingThe exclusive sealing system guarantees perfect vacuum tightness and anti-corrosiveness
ConnectionThe easy clamp is made of highly resistant material which ensures a long life performance
Bath temperature185℃ (2 possible settings: water and oil)
Bath heater1400W
Bath capacity5 liters
Temperature stability±0.2℃
Bath materialPTFE coated molded aluminum tank
Left and right moving distance90mm
DrainingRemovable bath for emptying
Stroke displacement13cm, adjustable, and can be stopped at any position
Head angle adjustable0~15°
Cooling surface1500cm2
Evaporating flasks1000ml (optional 50 to 2000ml)
Collecting flasks1000ml (optional 250 to 2000ml)
Weight26,5 Kg (vertical version), 26 Kg (slanting version)
Overall dimensions690x700x430mm (vertical version,HxDxL) 690x790x430mm (slanting version,HxDxL)
Voltage230 VAC, 50/60Hz
OptionsVapor temperature probe, vacuum controller
Protective shieldGlassware lifting up possible with or without the protective shield
Other featuresPowered glassware lifting up device with safety release (in case of power failure) Quick start/stop control and parameter selector

Models of STRIKE 385:

Order NumberModelTypeVoltageVersion
SQED160113STRIKE 385 M1Slanting glassware220VO
SQED160419STRIKE 385 M4Slanting glassware220VO/P
SKUDescription
SQED160860Rotary Evaporator Strike 385 M0 – Main unit only
SQED160113Rotary Evaporator Strike 385 M1 – Slanting glassware
SQED160112Rotary Evaporator Strike 385 M2 – Vertical glassware, steam sinking type
SQED160111Rotary Evaporator Strike 385 M3 – Vertical glassware, steam rising type
SQED160419Rotary Evaporator Strike 385 M4 – Slanting plastic coated glassware
SQED160418Rotary Evaporator Strike 385 M5 – Vertical plastic coated glassware, steam sinking type
SQED160417Rotary Evaporator Strike 385 M6 – Vertical plastic coated glassware, steam rising type
SQED160420Rotary Evaporator Strike 385 M7 – Dry ice condensation type
ModelDescription
GS1-GS7Glassware set
SQEF05P799Condenser
SQFY051171Borosilicate glass evaporating flask
SQFY146060Evaporating flask for powder
SQUA015797Borosilicate glass collecting flask
SQFW129300Borosilicate glass adapter for collecting flask
SWAD160001Borosilicate glass adapter for connection / extension
SQFW126450Anti-sprinkling bubble in borosilicate glass
SQEF059420PT100 probe
FLMU016720Joint clip, plastic
SQEF162449Discharge valve, vapor tube, sample filling tube
FLMM016694Tightening clamp
KAMY011542Sleeves, PTFE
168001-01Rubber vacuum resistant tube, to connect condensers with chillers
8 970 480Tube clamp

Insights Article: Rotary Evaporators: Essential Features, Selection Tips, and Applications in the Laboratory
