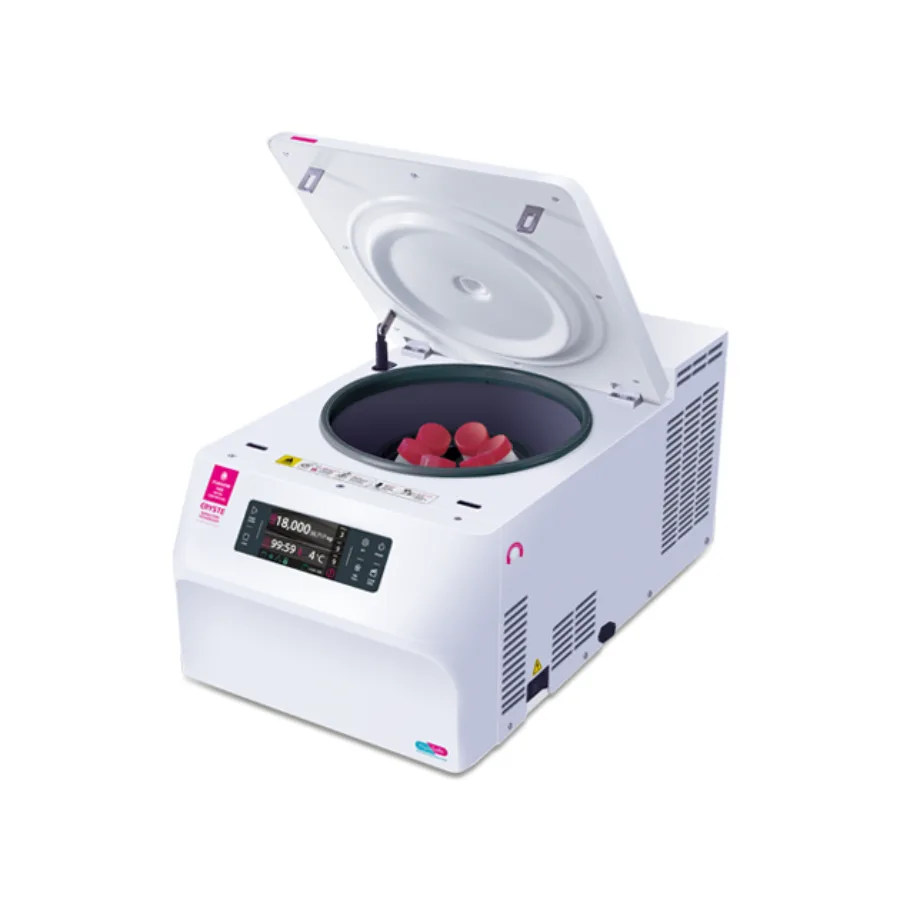

Refrigerated Microcentrifuge - Purispin 18R

The Purispin 18R – Refrigerated Microcentrifuge by Cryste delivers exceptional performance with powerful g-force and high throughput, making it an essential piece of laboratory equipment for scientists in South Africa. With a remarkable speed of 18,000 rpm, it accommodates a wide range of tubes from 0.2 ml to 50 ml conical tubes.

Various tubes available

Tube coverage Purispin 18R: 0.2ml ~ 50ml conical

Energy Saving

As one of the pursuits of ESG values, it supports energy saving functions.

Standby Off function
Eco Shut-off setting for refrigeration – Unnecessary energy use can be avoided.

Wide Range of Application

Various rotor options for multiple purpose in different users.

CRYSTE FLIP Touch Controller

User-friendly 4.3″ full color touch LCD controller helps to set the parameter at modern way. All set points are visible at a glance and setting is easy.
Touch pad lock doesn’t allow misuse during operation avoided.

Biocontainment Accessory Package

Option for handling biohazardous materials
Aerosol tightness angle rotor is certified by TUV NORD in compliance with IEC61010-2-020:2016 Annex AA

Accurate and stable temperature maintenance function

Through efficient refrigeration control technology and internal design that minimizes the frictional heat of the rotor, it guarantees safe testing of temperature-sensitive samples.

Ergonomic Design

Designed with user comfort in mind, the modest working height of the Refrigerated Microcentrifuge – Purispin 18R ensures ease in loading and unloading samples, enhancing overall efficiency in the lab.

Versatile Rotor Options

This centrifuge supports various rotors, allowing for the use of microtubes ranging from PCR tubes to general microtubes. It can handle up to 50 ml conical tubes, making it versatile for different applications.

Advanced Cooling Function

The pre-cooling feature minimizes the risk of degradation for thermally sensitive samples, maintaining a temperature of 4°C at maximum speed. This ensures the integrity of your samples during processing.

Silent and Energy-Efficient Operation

Notably, the Refrigerated Microcentrifuge – Purispin 18R operates quietly, reducing noise in the laboratory environment. Additionally, its energy-saving design contributes to sustainable laboratory practices.

Drainage Capability

The built-in drainage system allows for easy management of excess condensation, ensuring a clean and efficient workspace.

For more information and options, look at our article, The Ultimate Guide to Finding the Right Centrifuge for Your Lab on our Insights page, where you will find detailed articles that assist you in understanding various products and applications.

Max. RPM	18,000RPM (Angle Rotor)	13,000RPM(Swing Rotor)
Max. RCF	30,717 xg	16,343 xg
Max. Capacity	50ml Conical x 6	1.5/2.0 x 24
Accel / Decel phase	0 ~ 9 (10set)
Set Temp.	-10℃ ~ +40℃ (1℃ increments)
Ref. System	Non-CFC
Noise Level	≤60dB
Set Time	99 min 59sec or continuous
Time Count	From start / From set-up RPM
Program	100 memory
Rotor ID	Automatic Recognition
Display	4.3” LCD Touch Screen
RPM Range	400 to 18,000 RPM
Display message on screen	RPM, RCF, Time, Door open/close, Temp ACC, DEC, Rotor ID, Program, Comp. On/Off, Key lock
Available Rotor Quantity	10
Power Supply	AC 230V ± 10%, 50-60Hz, 1Phase
Power Consumption	1,5KW
Dimension (W x D x H)	382 x 669 x 328mm (H:684mm with open lid)
Weight (without rotor)	52kg

Rotor
Rotor	Fixed Angle Rotor ∠ 45′ 48 x 0.2ml Radius(mm) : 83.5		Fixed Angle Rotor ∠ 45′ 24 x 1.5ml Radius(mm) : 84.8
Item	A480.2M		A241.5M
Tube
Volume (ml)	0.2	0.2ml Strips	0.2	0.5	1.5 / 2.0
Adaptor / tube rack
Item			F1.5A-0.2	F1.5A-0.5
Number per rack / rotor	48	6	24	24	24
Adaptor bore (mm)	6.5	6.5	6.5	8	11
Max. height for use(mm)	–	–	44	51	61
RPM	11,000	11,000	18,000	18,000	18,000
Radius (mm)	83.5	83.5	70.3	76.7	84.8
RCF	11,296	11,296	24.465	27.783	30.717

Rotor
Rotor	Swing out rotor Max.RPM : 5,000 Radius(mm): 95		Fixed Angle Rotor ∠ 45° 24 x 1.5ml Radius(mm): 84.8
Item	S2M-MTP		AS241.5MX
Tube
Volume (ml)			0.2	0.5	1.5 / 2.0
Adaptor / tube rack
Item	MTP	DWP	F1.5A-0.2	F1.5A-0.5
Number per rack / rotor	2/4	1/2	24	24	24
Adaptor bore (mm)	–	–	6.5	8	11
Max. height for use(mm)	–	–	43	51	61
RPM	5,000	5,000	18,000	18,000	18,000
Radius (mm)	95	95	70.3	76.7	84.8
RCF	2,655	2,655	24.465	27,465	30.717

Rotor
Rotor	Fixed Angle Rotor ∠ 45′ 30 x 1.5ml Radius(mm) : 94.8			Fixed Angle Rotor ∠ 45′ 18 x 1.5ml Radius(mm) : 74.8
Item	A301.5M			A181.5M H
Tube
Volume (ml)	0.2	0.5	1.5 / 2.0	0.2	0.5	1.5 / 2.0
Adaptor / tube rack
Item	F1.5A-0.2	F1.5A-0.5		F1.5A-0.2	F1.5A-0.5
Number per rack / rotor	30	30	30	18	18	18
Adaptor bore (mm)	6.5	8	11	6.5	8	11
Max. height for use(mm)	44	52	61	44	52	63
RPM	14,000	14,000	14,000	15,000	15,000	15,000
Radius (mm)	80.3	86.7	94.8	60.4	66.3	74.8
RCF	17.596	18.998	20.773	15.194	16.678	18.816

Rotor
Rotor	Fixed Angle Rotor ∠ 45′ 48 x 1.5ml Radius(mm) : 94.8			Fixed Angle rotor ∠ 45° 12 x 5ml Rmax : 92.9mm	Fixed Angle rotor ∠ 30° 6 x 50ml Radius(mm) : 108.3
Item	A481.5M			A125M	A650M
Tube
Volume (ml)	0.2	0.5	1.5 / 2.0	5	15 Conical	15	50 Conical	50 Conical Skirted
Adaptor / tube rack
Item	F1.5A-0.2	F1.5A-0.5			F50CA-15C	S50A-15	S50A-50C *
Number per rack / rotor	48	48	48	12	6	6	6	6
Adaptor bore (mm)	6.5	8	11	17	17	18	30	30
Max. height for use(mm)	In 51 Out 44	In62 Out 54	In70 Out 61	67	120	119	119	119
RPM	13,000	13,000	13,000	14	8,000	8,000	8,000	8,000
Radius (mm)	In 70.3 Out 80.3	In 76.7 Out 86.7	In 84.8 Out 94.8	92.9	92.2	98.9	100.5	100.5
RCF	In 13,283 Out 15,172	In 14,492 Out 16,381	In 16,022 Out 17,912	20.357	6.597	7.076	7.191	7.191

*Included as standard when ordering A650M

Rotor
Rotor	Swing Out Rotor 24 x 1.5ml Radius(mm) : 84.5
Item	S61.5M
Bucket
Item	B1.5
Tube
Volume (ml)	0.2	0.5	1.5/0.2
Adaptor / tube rack
Item	F1.5A-0.2	F1.5A-0.5
Number per rack / rotor	4/24	4/24	4/24
Adaptor bore (mm)	6.5	8	11
Max. height for use(mm)	29	36	47
RPM	13,000	13,000	13,000
Radius (mm)	67	75	86.5
RCF	12,659	14,171	16,343

SKU	Description
CS-C-M18R-MB	PURISPIN 18R – 230V±10%, 50-60Hz, 1Phase, Eu Plug, 382x669x328mm, 52Kg
CS-C-M18R-MB_R1	PURISPIN 18R – 230V±10%, 50-60Hz, 1Phase, Eu Plug, 382x669x328mm, 52Kg, including Eco(lower GWP) refrigerant

Angle Rotor

SKU	Description
CS-C-M-10010	A480.2M – 0.2ml x 48 fixed angle rotor for PCR strips (Max 11,000RPM)
CS-C-M-10020	A241.5M – 1.5-2.0ml x 24 fixed angle rotor (Max 18,000RPM in PURISPIN (L)18R / 15,000RPM in PURISPIN (L)17R)
CS-C-M-10031	A241.5MX – 1.5-2.0ml x 24 fixed aerosol-tightness angle rotor(Axllock, ≤18,000RPM in P18R/≤15,000RPM in P17R)
CS-C-M-10040	A301M – 1.5-2.0ml x 30 fixed angle rotor (Max 14,000RPM)
CS-C-M-10050	A125M – 5.0ml x 12 fixed angle rotor (Max 14,000RPM)
CS-C-M-10078	A181.5MH – 1.5-2.0ml Spin Column x 18 fixed angle rotor (Max 15,000RPM)
CS-C-M-10080	A481.5M – 1.5-2.0ml x 48 fixed angle rotor (Max 13,000RPM)
CS-C-M-10090	A650M – 50ml x 6 fixed angle rotor (Max 8,000RPM) including S50A-50C Set(6EA)

Swing Out Rotor

SKU	Description
CS-C-M-20010	S61.5M – 6-wing swing rotor with ‘built-in 4-place rack for 1.5/2.0ml’ x 6 (Max 13,000RPM)
CS-C-M-20029	S2M-MTP – 2-wing swing rotor with ‘2 MTP x 2′(Max 5,000RPM)
