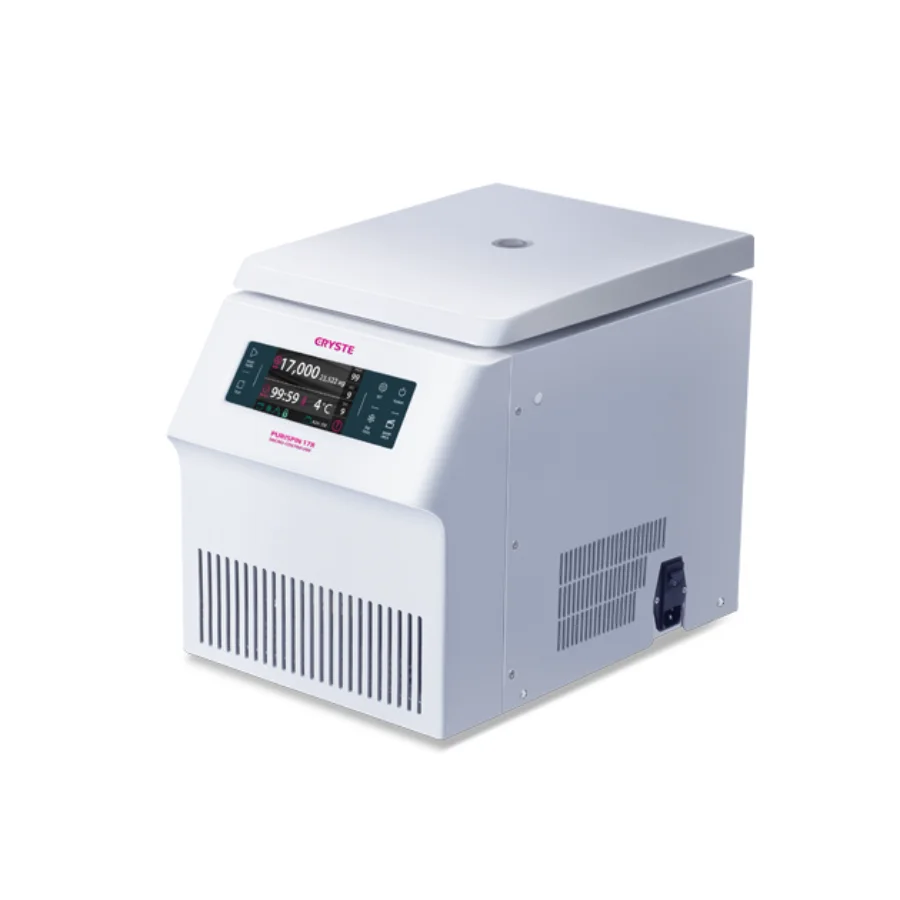

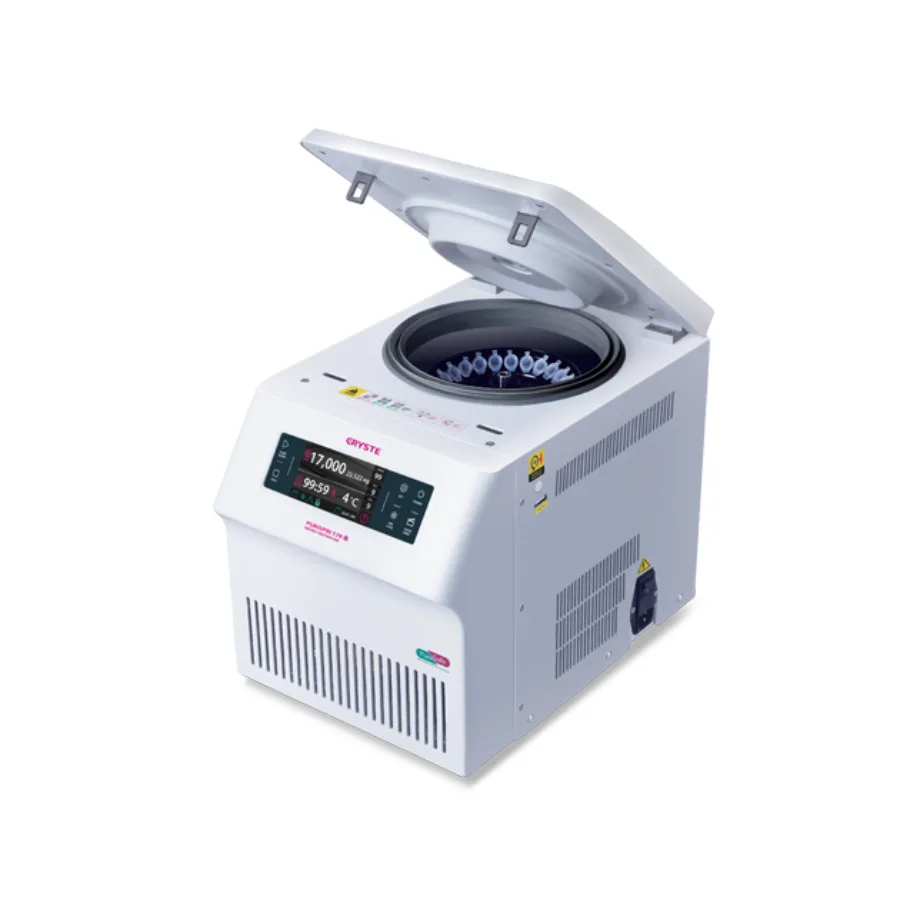

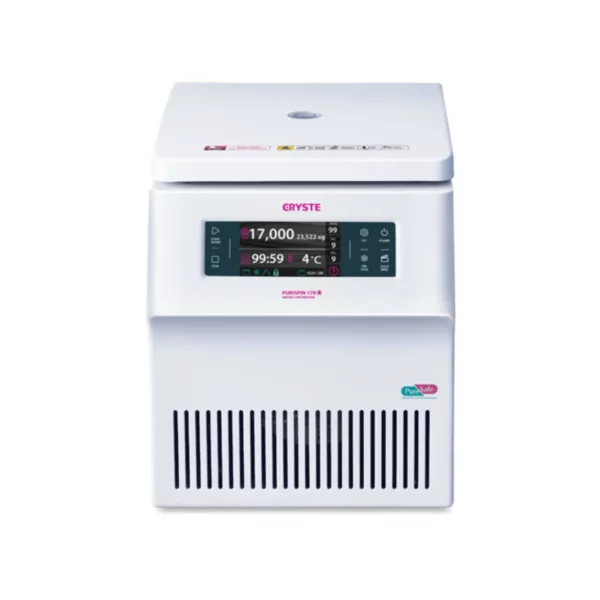

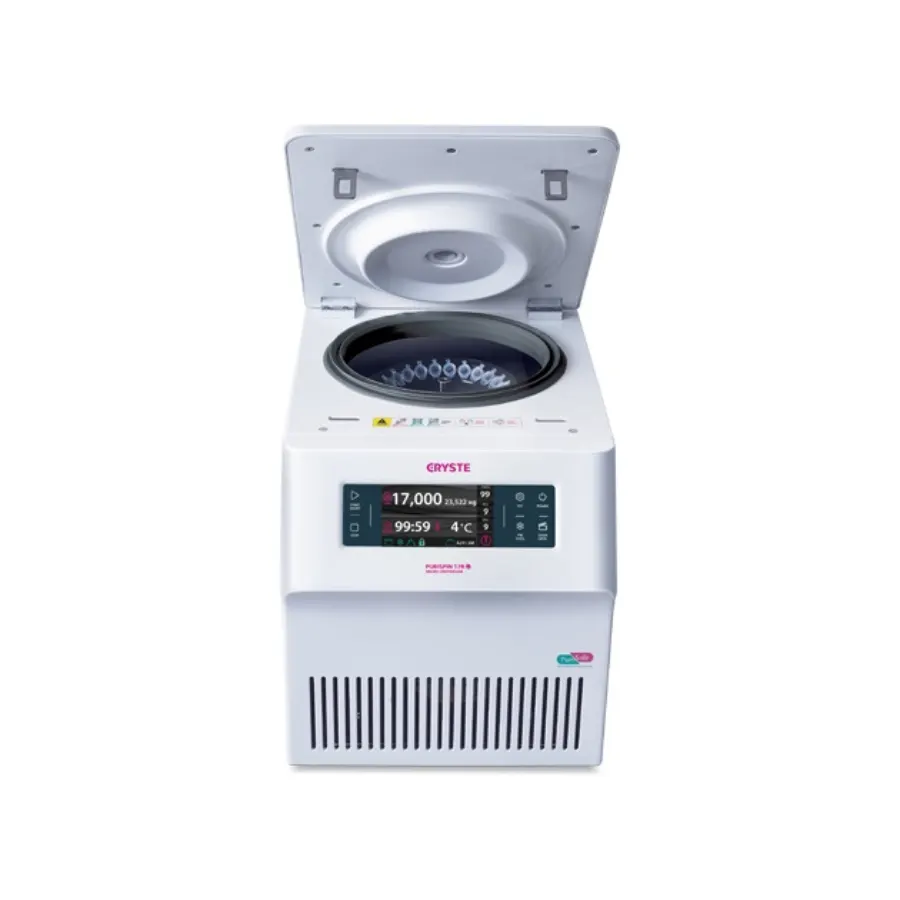

Refrigerated Microcentrifuge – Purispin 17R

The Purispin 17R – Refrigerated Microcentrifuge is a vital instrument for any modern laboratory. Developed by Cryste, this compact and efficient unit delivers powerful performance at 17,000 rpm while maintaining accurate temperature control to safeguard sensitive samples. Its rapid cooling feature quickly brings the chamber down to 4°C, even at top speed, ensuring optimal conditions. The unit supports a range of rotors compatible with different PCR tube types, making it suitable for a wide variety of lab applications. At Apex Scientific, we proudly supply this dependable centrifuge across South Africa. Explore our range to see how the Purispin 17R can support your research needs.

The Purispin 17R – Refrigerated Microcentrifuge by Cryste is a valuable asset for any laboratory setting. Designed with precision, this compact microcentrifuge is ideal for preserving the integrity of temperature-sensitive samples.



Various Tubes Available

The Purispin 17R supports a wide range of tubes, from 0.2 ml to 5 ml, making it versatile for different experimental needs.



Energy Saving

In alignment with ESG values, this unit includes built-in energy-saving features that promote sustainability.

  • Standby Off function helps reduce power usage when idle.
  • Eco Shut-off setting for refrigeration prevents unnecessary energy consumption.



Wide Range of Applications

Thanks to its diverse rotor options, the Purispin 17R accommodates various experimental workflows. As a result, it serves the needs of multiple users with different requirements.



CRYSTE FLIP Touch Controller

  • The intuitive 4.3″ full-color touch LCD controller allows for easy and modern parameter setting. All settings are visible at a glance, which streamlines operation.
  • A secure touchpad lock prevents misuse and accidental changes during operation.



Biocontainment Accessory Package

  • Optional features are available for working safely with biohazardous materials.
  • The aerosol-tight angled rotor is certified by TUV NORD in compliance with IEC61010-2-020:2016 Annex AA, offering peace of mind for sensitive applications.



Compact Design

With one of the smallest footprints in its category, the Purispin 17R can be placed easily on busy laboratory benches. Consequently, it allows you to optimize space without compromising functionality.



Refrigeration & Fast Cooling

The integrated pre-cooling function ensures that samples are kept at optimal conditions. Even at maximum speed, it maintains a consistent 4°C, helping to prevent thermal degradation.



Silent Operation

Because the motor is precisely balanced, vibrations are minimized. This results in ultra-quiet performance, which is essential for maintaining a calm and focused laboratory environment.



Ideal Security

To safeguard your experiments, the Purispin 17R features password-protected access. Therefore, unauthorized users are unable to interfere with sensitive processes.



Efficient Drainage

A built-in drainage system at the bottom of the chamber helps manages condensation. In turn, this feature simplifies cleaning and boosts overall usability.

For more information and options, explore our article, The Ultimate Guide to Finding the Right Centrifuge for Your Lab, located on our Insights page. There, you’ll find detailed resources to help you better understand our products and their applications.

DescriptionPURISPIN 17R
Max. RPM17,000RPM(Angle Rotor)13,000RPM(Swing Rotor)
Max. RCF23,522 xg16,343 xg
Max. Capacity1.5/2.Oml x 301.5/2.OmI x 24
Accel / Decel phaseO • 9 (10 step)
Set Temp.-10℃ ~ +40℃ ( 1℃ increments )
Ref. SystemNon-CFC
Noise Level<_ 60dB
Set Time99 min 59sec or continuous
Time CountFrom start / From set-up RPM
Program100 memory
Rotor IDAutomatic Recognition
Display4.3″ LCD Touch screen
RPM Range400 to 17,000 RPM
Display message on screenRPM, RCF, Time, Door open/close, Temp ACC, DEC, Rotor ID, Progralru Comp. On/off, Key lock
Available Rotor Quantity7
Power SupplyAC 230,10%, 50-60Hz, 1Phase
Power Consumption1.5KW
Dimension(W x D x H)306 x 463 x 373 mm (H:685mm with open lid)
Weight (without rotor)30kg
cat. No.cs-c-M17R-MB
For 100V/110%’, 50-60HzCSC-M17R-MB-V1
For Eco(ovver GWP)CS-C.M17RMB_R1
Rotor
Fixed Angle Rotor ∠ 45′
48 x 0.2ml
Radius(mm) : 83.5
Fixed Angle Rotor ∠ 45′
24 x 1.5ml
Radius(mm) : 84.8
Fixed Angle Rotor ∠ 45′
30 x 1.5ml
Radius(mm) : 94.8
ItemA480.2MA241.5MA301.5M
Tube
Volume (ml)0.20.2ml Strips0.20.51.5 / 2.00.20.51.5 / 2.0
Adaptor / tube rack
ItemF1.5A-0.2F1.5A-0.5F1.5A-0.2F1.5A-0.5
Number per rack / rotor486242424303030
Adaptor bore (mm)6.56.56.58116.5811
Max. height for use(mm)445161445261
RPM11,00011,00015,00015,00015,00014,00014,00014,000
Radius (mm)83.583.570.376.784.880.386.794.8
RCF11,29611,29617,68419,29421,33117,59618,99820,773



Rotor
Fixed Angle Rotor ∠ 45′
18 x 1.5ml
Rmax : 72.8mm
Fixed Angle rotor ∠ 45°
12 x 5ml
Rmax : 92.9mm
Fixed Angle Rotor ∠ 45°
24 x 1.5ml
Radius(mm) : 84.8
ItemA181.5MSA125MAS241.5MX
Tube
Volume (ml)0.20.51.5/0.25ml0.20.51.5 / 2.0
Adaptor / tube rack
ItemF1.5A-0.2F1.5A-0.5F1.5A-0.2F1.5A-0.5
Number per rack / rotor18181812242424
Adaptor bore (mm)6.5811176.5811
Max. height for use(mm)43516167435161
RPM17,00017,00017,00014,00015,00015,00015,000
Radius (mm)58.364.672.892.970.376.784.8
RCF18,83720,87223,52220,35717,68419,29421,331



Rotor
Swing Out Rotor
24 x 1.5ml
Radius(mm) : 84.5
ItemS61.5M
Bucket
ItemB1.5
Tube
Volume (ml)0.20.51.5/0.2
Adaptor / tube rack
ItemF1.5A-0.2F1.5A-0.5
Number per rack / rotor4/244/244/24
Adaptor bore (mm)6.5811
Max. height for use(mm)293647
RPM13,00013,00013,000
Radius (mm)677586.5
RCF12,65914,17116,343
SKUDescription
CS-C-M17R-MBPURISPIN 17R – 230V±10%, 50-60Hz, 1Phase, Eu Plug, 306x463x373mm, 30Kg
CS-C-M17R-MB_R1PURISPIN 17R – 230V±10%, 50-60Hz, 1Phase, Eu Plug, 306x463x373mm, 30Kg, including Eco(lower GWP) refrigerant

Angle Rotor

SKUDescription
CS-C-M-10010A480.2M – 0.2ml x 48 fixed angle rotor for PCR strips (Max 11,000RPM)
CS-C-M-10020A241.5M – 1.5-2.0ml x 24 fixed angle rotor (Max 18,000RPM in PURISPIN (L)18R / 15,000RPM in PURISPIN (L)17R)
CS-C-M-10031AS241.5MX – 1.5-2.0ml x 24 fixed aerosol-tightness angle rotor(Axllock, ≤18,000RPM in P18R/≤15,000RPM in P17R)
CS-C-M-10040A301.5M – 1.5-2.0ml x 30 fixed angle rotor (Max 14,000RPM)
CS-C-M-10050A125M – 5.0ml x 12 fixed angle rotor (Max 14,000RPM)
CS-C-M-10060A181.5M – 1.5-2.0ml x 18 fixed angle rotor (Max 17,000RPM)



Swing Out Rotor

SKUDescription
CS-C-M-20010S61.5M – 6-wing swing rotor with ‘built-in 4-place rack for 1.5/2.0ml’ x 6 (Max 13,000RPM)
