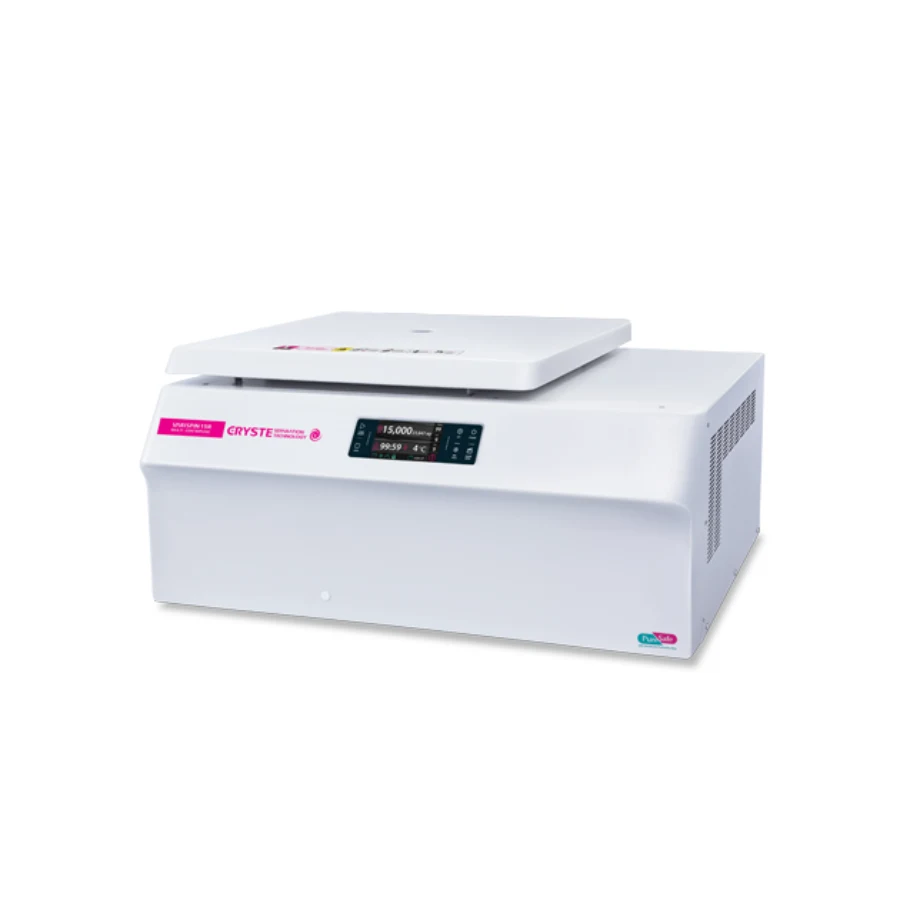

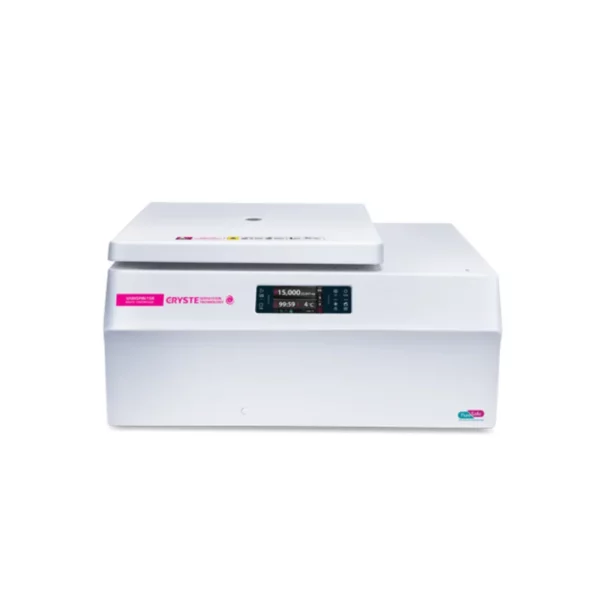

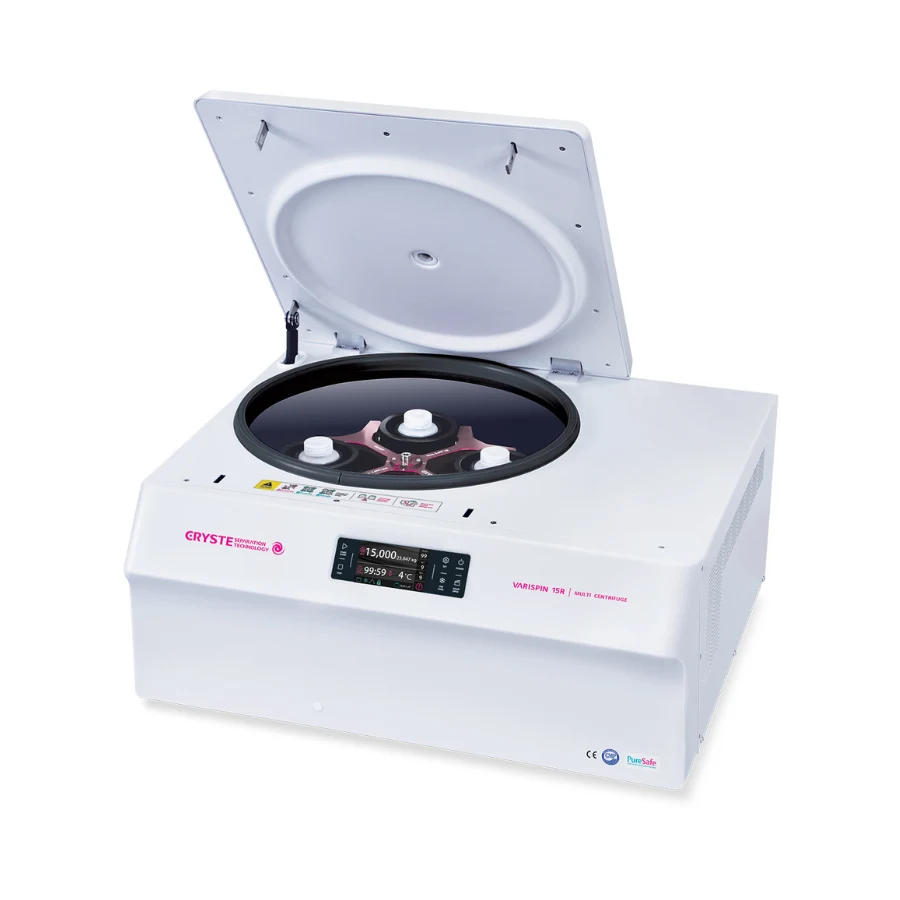

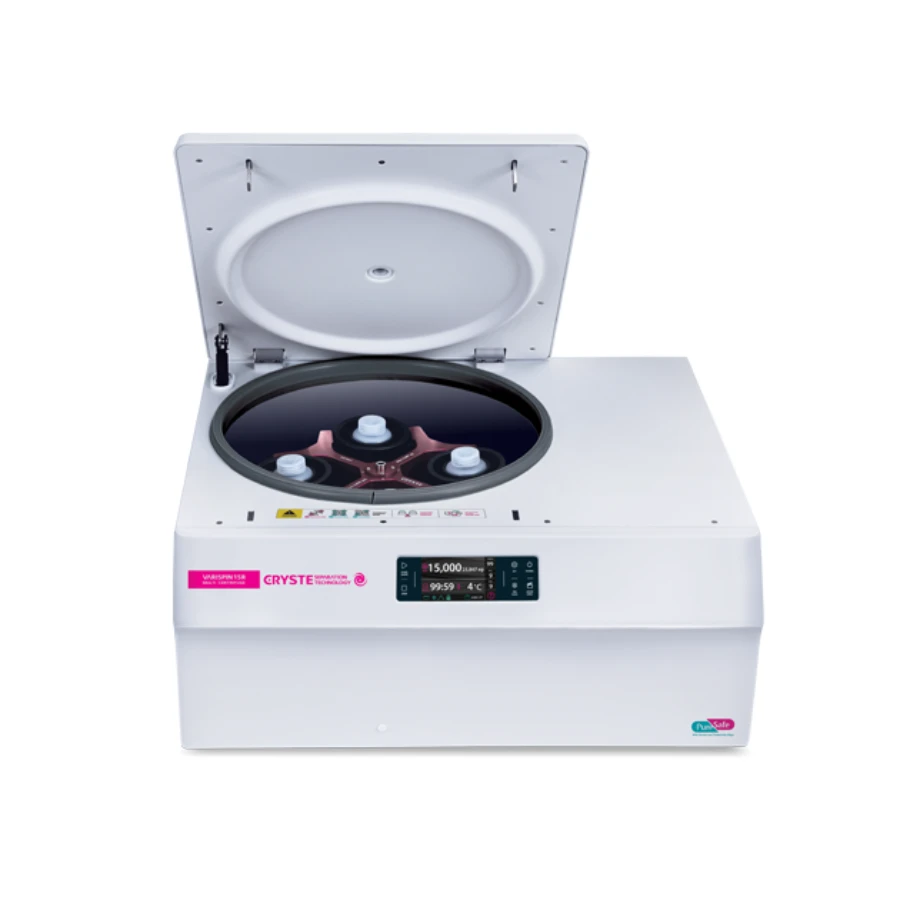

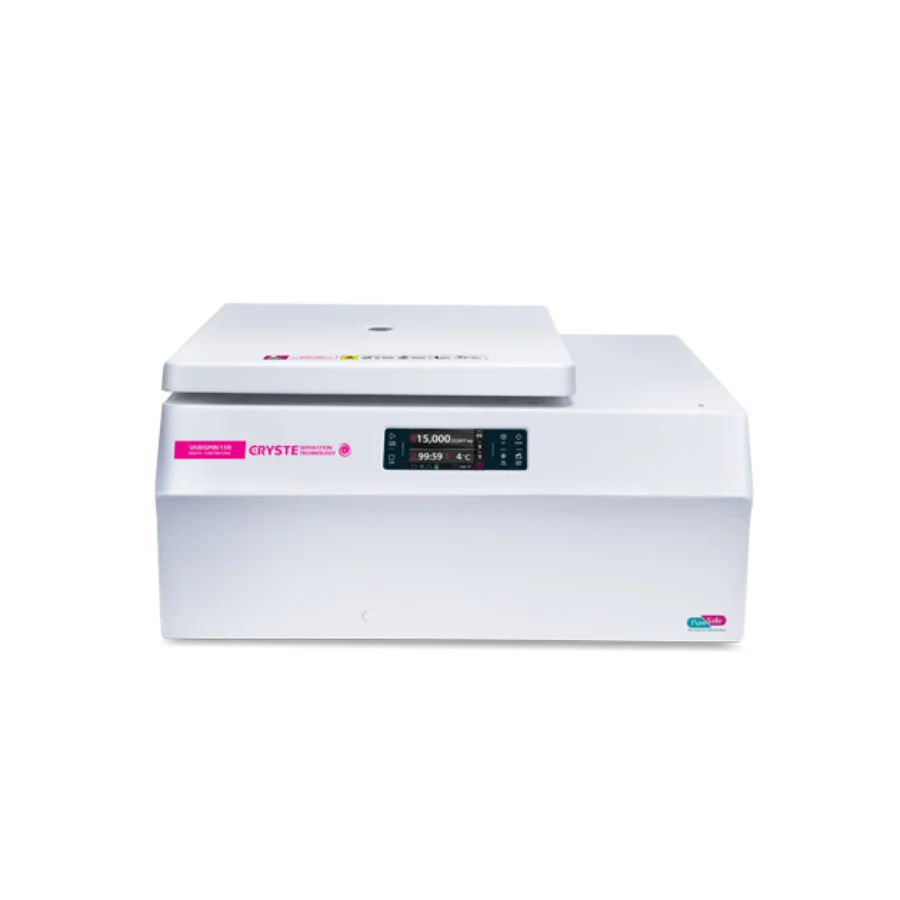

Refrigerated Centrifuge - Varispin 15R

The Varispin 15R – Refrigerated Centrifuge, developed by Cryste and distributed by Apex Scientific, brings advanced cooling and separation capabilities to laboratories across South Africa. Designed with flexibility and performance in mind, it supports a wide range of routine and specialised applications, making it a dependable choice for research institutions and diagnostic labs alike.

Versatile Tube Coverage

The Varispin 15R accommodates a wide range of tube sizes, from 0.2ml to 750ml. This flexibility allows for various applications, making it suitable for different users across multiple disciplines.

Energy Efficiency

In pursuit of ESG values, the Varispin 15R features energy-saving functions, including a Standby Off function and an Eco Shut-off setting for refrigeration. These capabilities minimize unnecessary energy consumption while ensuring an environmentally friendly operation. As a result, your laboratory can maintain high productivity standards without compromising sustainability.

User-Friendly Interface

The CRYSTE FLIP Touch Controller boasts a 4.3″ full-color LCD that simplifies parameter adjustments. All set points are clearly visible, and the touch pad lock prevents misuse during operation. This design enhances both usability and safety, allowing lab personnel to focus on their tasks without distraction.

Wide Range of Applications

With various rotor options available, the Varispin 15R can handle multiple applications, catering to the specific needs of different users. This versatility makes it an essential piece of laboratory equipment.

Safety and Security

For laboratories working with biohazardous materials, the Biocontainment Accessory Package is a crucial feature. Certified by TUV NORD in compliance with IEC61010-2-020:2016 Annex AA, it ensures safety through biocontainment sealing buckets. Additionally, unauthorized access is restricted through password protection, providing ideal security for sensitive environments.

Efficient Temperature Management

The advanced refrigeration technology maintains stable temperature conditions, crucial for temperature-sensitive samples. The pre-cooling feature allows users to prepare samples effectively, while continuous refrigeration performance is guaranteed throughout operation.

Silent Operation

Thanks to a well-balanced motor, the Varispin 15R operates with minimal vibration, ensuring a quiet working environment—perfect for laboratories focused on precision.

For more information and options, look at our article, The Ultimate Guide to Finding the Right Centrifuge for Your Lab, on our Insights page, where you will find detailed articles that assist you in understanding various products and applications.

Max. RPM	15,000RPM(Angle Rotor)	5,000RPM(Swing Rotor)
Max. RCF	23,847 xg	4,947 xg
Max. Capacity	85ml x 6	750ml x 4
Accel / Decel phase	0 ~ 9 (10set)
Set Temp.	-10℃ ~ +40℃ ( 1℃ increments )
Ref. System	Non-CFC
Noise Level	≤60dB
Set Time	99 hour 59 min 59sec or continuous
Time Count	From start / From set-up RPM
Program	100 memory
Rotor ID	Automatic Recognition
Display	4.3” LCD Touch Screen
Display message on screen	RPM, RCF, Time, Door open/close, Temp ACC, DEC, Rotor ID, Program, Comp. On/Off, key lock
RPM Range	400 to 15,000 rpm
Available Rotor Quantity	14
Power Supply	AC 230V ± 10%, 50-60Hz, 1Phase
Power Consumption	2,5KW
Dimension(W x D x H)	765 x 687 x 375 mm (H:915mm with open lid)
Weight (without rotor)	95kg

Angle Rotors

Rotor
Rotor	Fixed Angle Rotor ∠ 45′ 48 x 0.2ml Radius(mm) : 83.5		Fixed Angle Rotor ∠ 45′ 30 x 1.5ml Radius(mm) : 94.8			Fixed Angle Rotor ∠ 45′ 30 x 1.5ml Radius(mm) : 94.8			Fixed Angle Rotor ∠ 45′ 48 x 1.5ml Radius(mm) : 94.8
Item	A480.2T		A301.5T			AS301.5TX 1)			A481.5T
Tube
Volume (ml)	0.2	0.2ml Strips	0.2	0.5	1.5 / 2.0	0.2	0.5	1.5 / 2.0	0.2	0.5	1.5 / 2.0
Adaptor / tube rack	–	–									–
Item	–	–	F1.5A-0.2	F1.5A-0.5		F1.5A-0.2	F1.5A-0.5		F1.5A-0.2	F1.5A-0.5	–
Number per rack / rotor	48	6	30	30	30	30	30	30	48	48	48
Adaptor bore (mm)	6.5	6.5	6.5	8	11	6.5	8	11	6.5	8	11
Max. height for use(mm)	–	–	44	52	61	44	52	61	In 51 Out 44	In 62 Out 54	In 70 Out 61
RPM	12,000	12,000	12,000	12,000	12,000	15,000	15,000	15,000	13,000	13,000	13,000
Radius (mm)	83.5	83.5	80.3	86.7	94.8	80.3	86.7	94.8	In70.3 Out80.3	In76.7 Out86.7	In84.8 Out94.8
RCF	13,443	13,443	20,199	21,809	23,847	20,199	21,809	23,847	In 13,283 Out 15,172	In 14,492 Out 16.381	In 16,022 Out 17,912

Rotor
Rotor	Fixed Angle rotor ∠ 45′ 24 x 1.5ml Radius(mm) : 84.8
Item	A241.5T
Tube
Volume (ml)	0.2	0.5	1.5 / 2.0
Adaptor / tube rack
Item	F1.5A-0.2	F1.5A-0.5
Number per rack / rotor	24	24	24
Adaptor bore (mm)	6.5	8	11.1
Max. height for use(mm)	44	51	61
RPM	15000	15000	15000
Radius (mm)	70.3	76.7	84.8
RCF	17684	19294	21331

Rotor
Rotor	Fixed Angle Rotor ∠ 28′ 12 x 15ml Radius(mm) : 97.1	Fixed Angle Rotor ∠ 25′ 12 x 15ml Conical Radius(mm) : 100.9	Fixed Angle Rotor ∠ 30′ 6 x 50ml Radius(mm) : 99.9		Fixed Angle Rotor ∠ 25′ 6 X 50ml Conical Radius(mm) : 95.7
Item	A1215T	A1215TC	A650T		A650TC
Tube
Volume (ml)	15(16)	15 Conical	15 Conical	50	15 Conical	50 Conical
Adaptor / tube rack	–	–		–		–
Item	–	–	F50A-15C	–	F50CA-15C	–
Number per rack / rotor	12	12	6	6	6	6
Adaptor bore (mm)	19	17	17	29.5	17	30
Max. height for use(mm)	117	129	122	120	124	121
RPM	12,000	13,000	12,000	12,000	13,000	13,000
Radius (mm)	97.1	100.9	94.3	99.9	91.3	95.7
RCF	15,632	19,064	15,182	16,083	17,250	18,082

Rotor
Rotor	Fixed Angle Rotor ∠ 30′ 8 x 50ml Radius(mm) : 103.4		Fixed Angle Rotor ∠ 25′ 6 x 85ml Radius(mm) : 99.8				Fixed Angle Rotor ∠ 25′ 6 x 85ml Radius(mm) : 99.8
Item	A850T		A685T				AS685TX
Tube
Volume (ml)	15 Conical	50	15 Conical	50 Conical	50	85	15 Conical	50 Conical	50	85
Adaptor / tube rack		–								–
Item	F50A-15C	–	F85A-15C	F85A-50C	F85A-50		F85A-15C	F85A-50C	F85A-50	–
Number per rack / rotor	8	8	6	6	6	6	6	6	6	6
Adaptor bore (mm)	17	29.5	17	30	29	39	17	30	29	39
Max. height for use(mm)	123	120	123	122	118	118	123	122	118	118
RPM	12,000	12,000	12,000	12,000	12,000	12,000	12,000	12,000	12,000	12,000
Radius (mm)	97.8	103.4	90.7	94.7	95.3	99.8	90.7	94.7	95.3	99.8
RCF	15,745	16,647	14,602	15,262	15,343	16,067	14,602	15,262	15,343	16,067

A4250T

Fixed Angle Rotor ∠ 25′ 4 x 250ml Radius(mm) : 128.3
Volume (ml)	250
Number per rack / rotor	4
Adaptor bore (mm)	62
Max. height for use(mm)	123
RPM	8,000
Radius (mm)	128.3
RCF	9,180

Swing Out Rotor

S4250TE	EB250	EBS250								BW250

		Tested by TUV NORD
	S250ET -3-12	S250ET -5-12	S250ET -10-12	S250ET -15-12	S250ET -15C-9	S250ET -50-4	S250ET -50C-3	S250ET -85-2	S250EA -250	–	–
										–	–
Swing Out Rotor Max. RPM : 4,000 Radius(mm) : 182.5 Max. RCF : 3,265
Volume (ml)	3	5	10	15	15 Conical	50	50 Conical	85	250	MTP	DWT
Number per rack / rotor	12/48	12/48	12/48	12/48	9/36	4/16	3/12	2/8	1/4	4/16	1/4
Adaptor bore (mm)	13.2	13.2	16	17.2	17	29.5	29.5	38.5	62.5	–	–
Max. height for use(mm)	124	124	124	124	127	124	127	124	138	–	–
RPM	4,000	4,000	4,000	4,000	4,000	4,000	4,000	4,000	4,000	4,000	4,000
Radius (mm)	177.5	177.5	177.5	177.5	180.7	177.5	180.5	177.5	180.5	153.5	153.5
RCF	3,175	3,175	3,175	3,175	3,232	3,175	3,229	3,175	3,229	2,746	2,746

S4250T	B250

	S250T-5-8	S250T-10-7	S250T-15-5	S250T-15C-4	S250T-50-2	S250A-50C

Swing Out Rotor Max. RPM : 4,500 Radius(mm) : 193.5 Max RCF : 4,381
Volume (ml)	5	10	15	15 Conical	50	50 Conical	250
Number per rack / rotor	8/32	7/28	5/20	4/16	2/8	1/4	1/4
Adaptor bore (mm)	13.5	16	17.5	17	29.5	30	62
Max. height for use(mm)	145	145	145	148	145	150	150
RPM	4,500	4,500	4,500	4,500	4,500	4,500	4,500
Radius (mm)	190.5	190.5	190.5	193.5	190.5	193.5	193.5
RCF	4,313	4,313	4,313	4,381	4,313	4,381	4,381

S4100T	B100

	S100T-1.5-6	S100T-5-5	S100T-10-4	S100T-15-3	S100T-15C-3	S100A-50	S100A-50C	S100A-85	S100A-100

Swing Out Rotor Max. RPM : 5,000 Radius(mm) : 177 Max RCF : 4,947
Volume (ml)	1.5	5	10	15	15 Conical	50	50 Conical	85	100
Number per rack / rotor	6/24	5/20	4/16	3/12	3/12	1/4	1/4	1/4	1/4
Adaptor bore (mm)	11	13.5	16	17.5	17	29.5	30	38.5	44
Max. height for use(mm)	130	130	130	130	133	130	133	130	130
RPM	5,000	5,000	5,000	5,000	5,000	5,000	5,000	5,000	5,000
Radius (mm)	174	174	174	174	174	174	174	174	174
RCF	4,863	4,863	4,863	4,863	4,947	4,863	4,947	4,863	4,863

S4750T	B750	BS750								B500	BW750

		Tested by TUV NORD
	S750T -3-24	S750T -5-24	S750T -10-19	S750T -15-19	S750T -15C-14	S750T -50-7	S750T -50C-5	S750A -250
									–		–	–
Swing Out Rotor Max. RPM : 4,000 Radius(mm) : 205 Max. RCF : 3,667
Volume (ml)	3	5	10	15	15 Conical	50	50 Conical	250	750	500	MTP	DWP
Number per rack / rotor	24/96	24/96	19/76	19/76	14/56	7/28	5/20	1/4	1/4	1/4	4/16	1/4
Adaptor bore (mm)	13.2	13.2	16	17.2	17	29.5	29.5	62.5	–	70	–	–
Max. height for use(mm)	136	136	136	136	134	136	140	161	143	165
RPM	4,000	4,000	4,000	4,000	4,000	4,000	4,000	4,000	4,000	4,000	4,000	4,000
Radius (mm)	198	198	198	198	196	198	202	205	205	213	170	170
RCF	3,542	3,542	3,542	3,542	3,506	3,542	3,613	3,667	3,667	3,810	3,041	3,041

SKU	Description
CS-C-T15R-MB	VARISPIN 15R – 230V±10%, 50-60Hz, 1Phase, Eu Plug, 765x687x375mm, 95Kg

Angle Rotor

SKU	Description
CS-C-T-10010	A480.2T – 0.2ml x 48 fixed angle rotor for PCR tubes (x 6 PCR strips) (Max 12,000RPM)
CS-C-T-10030	A241.5T – 1.5-2.0ml x 24 fixed angle rotor (≤15,000RPM in VARISPIN (L)15R/15, ≤12,000RPM in VARISPIN (L)12R/12)
CS-C-T-10020	A301.5T – 1.5-2.0ml x 30 fixed angle rotor (Max 12,000RPM)
CS-C-T-10032	AS301.5TX – 1.5-2.0ml x 30 fixed aerosol-tightness angle R (Axllock, ≤15,000RPM in V15R/15, ≤12,000RPM in V12R/12)
CS-C-T-10040	A481.5T – 1.5-2.0ml x 48 fixed angle(≤13,000RPM in VARISPIN (L)15R/15, ≤12,000RPM in VARISPIN (L)12R/12)
CS-C-T-10050	A1215T – 15ml x 12 fixed angle rotor (Max 12,000RPM)
CS-C-T-10061	A1215TC – 15ml x 12 fixed angle rotor for conical tubes (≤ 13,000RPM in V(L)15R/15, ≤12,000RPM in V(L)12R/12)
CS-C-T-10070	A650T – 50ml x 6 fixed angle rotor (Max 12,000RPM)
CS-C-T-10081	A650TC – 50ml x 6 fixed angle rotor for conical tubes (≤ 13,000RPM in V(L)15R/15, ≤ 12,000RPM in V(L)12R/12)
CS-C-T-10090	A850T – 50ml x 8 fixed angle rotor (Max 12,000RPM)
CS-C-T-10100	A685T – 85ml x 6 fixed angle rotor (Max 12,000RPM)
CS-C-T-10112	AS685TX – 85ml x 6 fixed aerosol-tightness angle rotor with CRYSTE Axllock(Max 12,000RPM)

Swing Out Rotor

SKU	Description
CS-C-T-10120	A4250T – 250ml x 4 fixed angle rotor (Max 8,000RPM)
CS-C-T-20010	S4250TE – 250ml 4-wing swing rotor for rectangular/well plate buckets (Max 4,000RPM)
CS-C-T-20020	S4250T – 250ml 4-wing swing rotor for round buckets (≤ 4,500RPM in V(L)15R/12R, ≤ 4,000RPM in V(L)15/12)
CS-C-T-20030	S4750T – 750ml 4-wing swing rotor for round/well plate buckets (Max 4,000RPM)
CS-C-T-20040	S4100T – 100ml 4-wing swing rotor for round buckets (Max 5,000RPM in VARISPIN (L)15R/12R)
