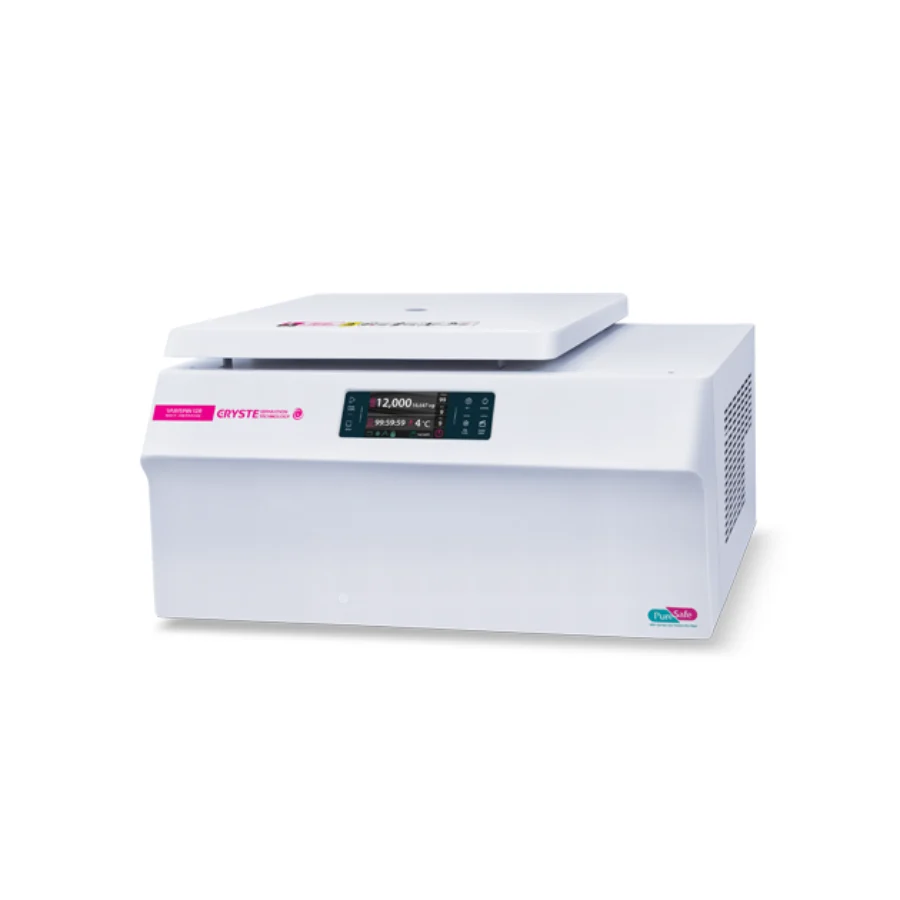

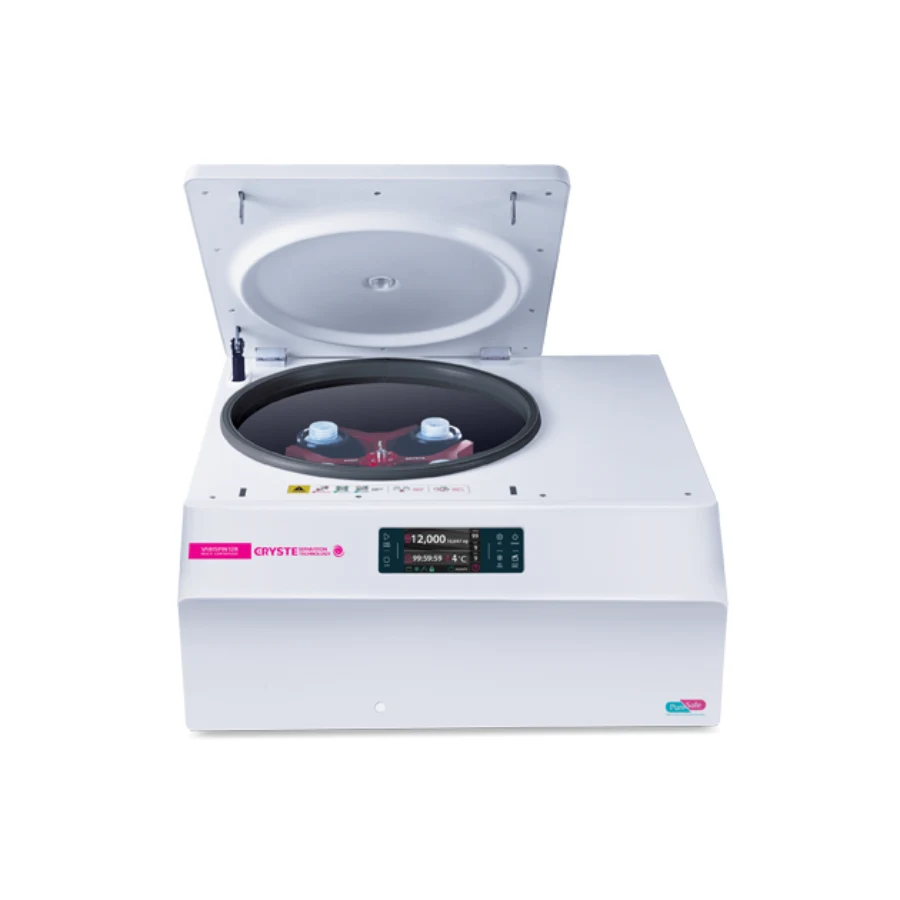

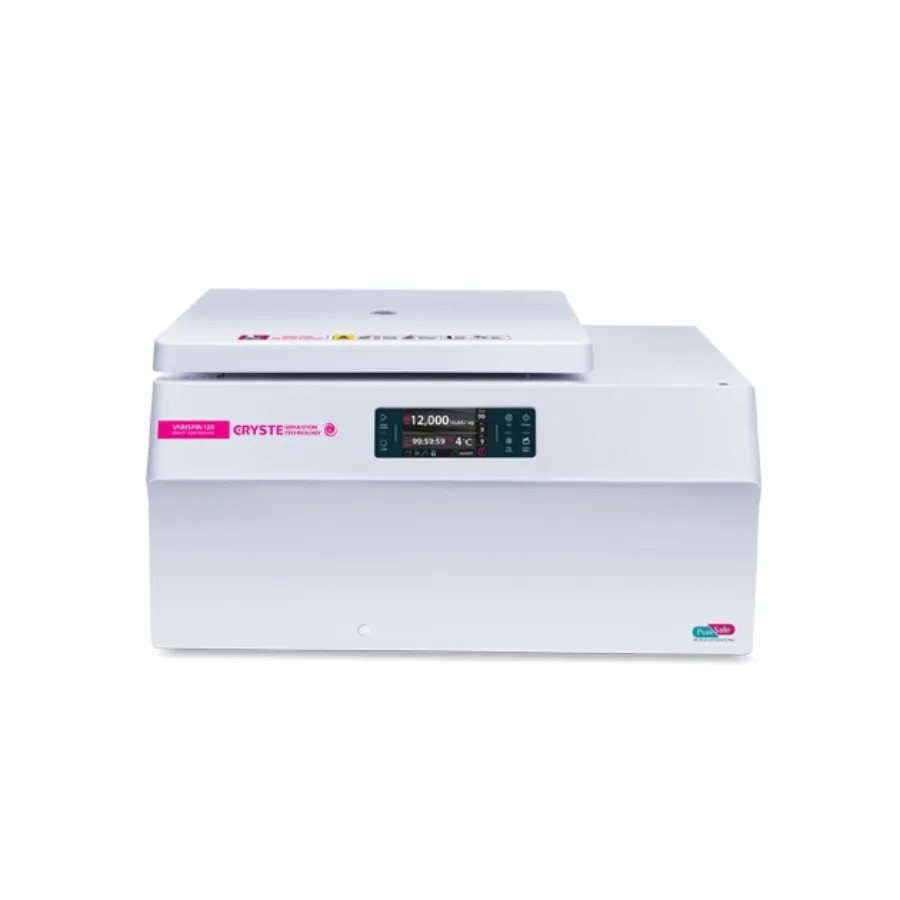

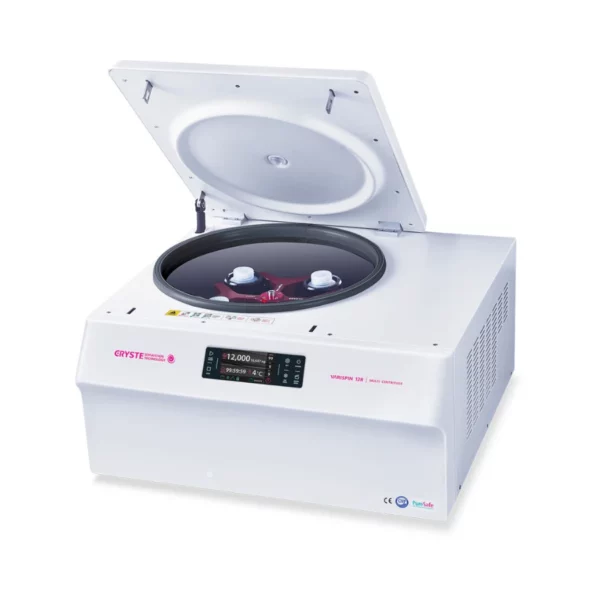

Refrigerated Centrifuge - Varispin 12R

The Varispin 12R – Refrigerated Centrifuge is an exceptional addition to your laboratory equipment at Apex Scientific. Designed for versatility, this centrifuge accommodates various tubes ranging from 0.2ml to 250ml with compatible tube adapters available.

Energy Saving Features

In pursuit of ESG values, the Varispin 12R includes energy-saving functions such as a standby off function and an eco-shut-off setting for refrigeration. These features help avoid unnecessary energy use, making it an environmentally friendly choice for your lab.

Wide Range of Applications

With various rotor options, this centrifuge serves multiple purposes for different users. The CRYSTE FLIP Touch Controller enhances usability with a user-friendly 4.3″ full-color touch LCD screen, allowing for easy parameter settings. All set points are visible at a glance, while a touchpad lock prevents misuse during operation.

Biocontainment Accessory Package

For those handling biohazardous materials, the Varispin 12R offers an optional biocontainment accessory package. The biocontainment sealing buckets are certified by TUV NORD, complying with IEC61010-2-020:2016 Annex AA.

Accurate and Stable Temperature Maintenance

Thanks to advanced refrigeration control technology, this centrifuge ensures accurate and stable temperature maintenance. Its internal design minimizes frictional heat, guaranteeing safe testing of temperature-sensitive samples.

Silent Operation

Featuring a well-balanced motor, the Varispin 12R minimizes vibration, resulting in one of the most silent operations available in laboratory equipment.

Ideal Security

Unauthorized access is prohibited through a secure password feature, ensuring that your sensitive samples remain protected.

For more guidance on choosing the right centrifuge, read our article, The Ultimate Guide to Finding the Right Centrifuge for Your Lab on the Insights page at Apex Scientific. You’ll also find helpful articles that explain the features, uses, and applications of our wide range of products.

Model		Varispin 12R
Max. RPM		12,000RPM(Angle Rotor)	5,000RPM(Swing Rotor)
Max. RCF		16,647 xg	4,947 xg
Max. Capacity		85ml x 6	250ml x 4
Accel / Decel phase		0 ~ 9 ( 10set)	0 ~ 9 ( 10set)
Set Temp.		-10℃ ~ +40℃ ( 1℃increments)	-10℃ ~ +40℃ ( 1℃increments)
Ref. System		Non-CFC	Non-CFC
Noise Level		≤60dB	≤60dB
Set Time		99 hour 59 min 59sec or continuous	99 hour 59 min 59sec or continuous
Time Count		At set Speed or from starting	At set Speed or from starting
Program		100 memory	100 memory
Rotor ID		Automatic Recognition	Automatic Recognition
Display		4.3” LCD Touch Screen	4.3” LCD Touch Screen
Display message on screen		RPM, RCF, Time, Door open/close, Temp ACC, DEC, Rotor ID, Program, Comp. On/Off, Key lock	RPM, RCF, Time, Door open/close, Temp ACC, DEC, Rotor ID, Program, Comp. On/Off, Key lock
RPM Range		400 to 12,000 rpm	400 to 12,000 rpm
Available Rotor Quantity		12	12
Power Supply	V12R-MB	AC 230V ± 10%, 50-60Hz, 1Phase	AC 230V ± 10%, 50-60Hz, 1Phase
	V12R-MBT	AC 120V ± 10%, 50-60Hz, 1Phase	AC 120V ± 10%, 50-60Hz, 1Phase
Power Consumption		2,KW	2,KW
Dimension(W x D x H)		681 x 656 x 372 mm (H:895mm with open lid)	681 x 656 x 372 mm (H:895mm with open lid)
Weight (without rotor)		86kg	86kg

Angle Rotor

Rotor
Rotor	Fixed Angle Rotor ∠ 45′ 48 x 0.2ml Radius(mm) : 83.5		Fixed Angle Rotor ∠ 45′ 30 x 1.5ml Radius(mm) : 94.8			Fixed Angle Rotor ∠ 45′ 30 x 1.5ml Radius(mm) : 94.8			Fixed Angle Rotor ∠ 45′ 48 x 1.5ml Radius(mm) : 94.8
Item	A480.2T		A301.5T			AS301.5TX 1)			A481.5T
Tube
Volume (ml)	0.2	0.2ml Strips	0.2	0.5	1.5 / 2.0	0.2	0.5	1.5 / 2.0	0.2	0.5	1.5 / 2.0
Adaptor / tube rack
Item			F1.5A-0.2	F1.5A-0.5		F1.5A-0.2	F1.5A-0.5		F1.5A-0.2	F1.5A-0.5
Number per rack / rotor	48	6	30	30	30	30	30	30	48	48	48
Adaptor bore (mm)	6.5	6.5	6.5	8	11	6.5	8	11	6.5	8	11
Max. height for use(mm)	–	–	44	52	61	44	52	61	In 51 Out 44	In 62 Out 54	In 70 Out 61
RPM	12,000	12,000	12,000	12,000	12,000	12,000	12,000	12,000	12,000	12,000	12,000
Radius (mm)	83.5	83.5	80.3	86.7	94.8	80.3	86.7	94.8	In70.3 Out80.3	In76.7 Out86.7	In84.8 Out94.8
RCF	13,443	13,443	12,928	13,958	15,262	12,928	13,958	15,262	In 11,318 Out 12,928	In 12,348 Out 13,958	In 13,652 Out 15,262

Rotor
Rotor	Fixde Angle rotor ∠ 45′ 24 x 1.5ml Radius(mm) : 84.8
Item	A241.5T
Tube
Volume (ml)	0.2	0.5	1.5 / 2.0
Adaptor / tube rack
Item	F1.5A-0.2	F1.5A-0.5
Number per rack / rotor	24	24	24
Adaptor bore (mm)	6.5	8	11.1
Max. height for use(mm)	44	51	61
RPM	12,000	12,000	12,000
Radius (mm)	70.3	76.7	84.8
RCF	11,318	12,348	13,652

Rotor
Rotor	Fixed Angle Rotor ∠ 28′ 12 x 15ml Radius(mm) : 97.1	Fixed Angle Rotor ∠ 25′ 12 x 15ml Conical Radius(mm) : 100.9	Fixed Angle Rotor ∠ 30′ 6 x 50ml Radius(mm) : 99.9		Fixed Angle Rotor ∠ 25′ 6 X 50ml Conical Radius(mm) : 95.7
Item	A1215T	A1215TC	A650T		A650TC
Tube
Volume (ml)	15(16)	15 Conical	15 Conical	50	15 Conical	50 Conical
Adaptor / tube rack
Item			F50A-15C		F50CA-15C
Number per rack / rotor	12	12	6	6	6	6
Adaptor bore (mm)	19	17	17	29.5	17	30
Max. height for use(mm)	117	129	122	120	124	121
RPM	12,000	12,000	12,000	12,000	12,000	12,000
Radius (mm)	97.1	100.9	94.3	99.9	91.3	95.7
RCF	15,632	16,244	15,182	16,083	14,699	15,407

Rotor
Rotor	Fixed Angle Rotor ∠ 30′ 8 x 50ml Radius(mm) : 103.4		Fixed Angle Rotor ∠ 25′ 6 x 85ml Radius(mm) : 99.8				Fixed Angle Rotor ∠ 25′ 6 x 85ml Radius(mm) : 99.8
Item	A850T		A685T				AS685TX
Tube
Volume (ml)	15 Conical	50	15 Conical	50 Conical	50	85	15 Conical	50 Conical	50	85
Adaptor / tube rack
Item	F50A-15C		F85A-15C	F85A-50C	F85A-50		F85A-15C	F85A-50C	F85A-50
Number per rack / rotor	8	8	6	6	6	6	6	6	6	6
Adaptor bore (mm)	17	29.5	17	30	29	39	17	30	29	39
Max. height for use(mm)	123	120	123	122	118	118	123	122	118	118
RPM	12,000	12,000	12,000	12,000	12,000	12,000	12,000	12,000	12,000	12,000
Radius (mm)	97.8	103.4	90.7	94.7	95.3	99.8	90.7	94.7	95.3	99.8
RCF	15,745	16,647	14,602	15,262	15,343	16,067	14,602	15,262	15,343	16,067

Swing Out Rotor

S4250TE	EB250	EBS250								BW250

		Tested by TUV NORD
	S250ET -3-12	S250ET -5-12	S250ET -10-12	S250ET -15-12	S250ET -15C-9	S250ET -50-4	S250ET -50C-3	S250ET -85-2	S250EA -250

Swing Out Rotor Max. RPM : 4,000 Radius(mm) : 182.5 Max. RCF : 3,265
Volume (ml)	3	5	10	15	15 Conical	50	50 Conical	85	250	MTP	DWT
Number per rack / rotor	12/48	12/48	12/48	12/48	9/36	4/16	3/12	2/8	1/4	4/16	1/4
Adaptor bore (mm)	13.2	13.2	16	17.2	17	29.5	29.5	38.5	62.5	–	–
Max. height for use(mm)	124	124	124	124	127	124	127	124	138	–	–
RPM	4,000	4,000	4,000	4,000	4,000	4,000	4,000	4,000	4,000	4,000	4,000
Radius (mm)	177.5	177.5	177.5	177.5	180.5	177.5	180.5	177.5	180.5	153.5	153.5
RCF	3,175	3,175	3,175	3,175	3,232	3,175	3,229	3,175	3,229	2,746	2,746

S4250T	B250

	S250T-5-8	S250T-10-7	S250T-15-5	S250T-15C-4	S250T-50-2	S250A-50C

Swing Out Rotor Max. RPM : 4,500 Radius(mm) : 193.5 Max RCF : 4,381
Volume (ml)	5	10	15	15 Conical	50	50 Conical	250
Number per rack / rotor	8/32	7/28	5/20	4/16	2/8	1/4	1/4
Adaptor bore (mm)	13.5	16	17.5	17	29.5	30	62
Max. height for use(mm)	145	145	145	148	145	150	150
RPM	4,500	4,500	4,500	4,500	4,500	4,500	4,500
Radius (mm)	190.5	190.5	190.5	193.5	190.5	193.5	193.5
RCF	4,313	4,313	4,313	4,381	4,313	4,381	4,381

S4100T	B100

	S100T-1.5-6	S100T-5-5	S100T-10-4	S100T-15-3	S100T-15C-3	S100A-50	S100A-50C	S100A-85	S100A-100

Swing Out Rotor Max. RPM : 5,000 Radius(mm) : 177 Max RCF : 4,947
Volume (ml)	1.5	5	10	15	15 Conical	50	50 Conical	85	100
Number per rack / rotor	6/24	5/20	4/16	3/12	3/12	1/4	1/4	1/4	1/4
Adaptor bore (mm)	11	13.5	16	17.5	17	29.5	30	38.5	44
Max. height for use(mm)	130	130	130	130	133	130	133	130	130
RPM	5,000	5,000	5,000	5,000	5,000	5,000	5,000	5,000	5,000
Radius (mm)	174	174	174	174	174	174	174	174	174
RCF	4,863	4,863	4,863	4,863	4,947	4,863	4,947	4,863	4,863

SKU	Description
CS-C-T12R-MB	VARISPIN 12R – 230V±10%, 50-60Hz, 1Phase, Eu Plug, 681x656x372mm, 86Kg

Angle Rotor

SKU	Description
CS-C-T-10010	A480.2T – 0.2ml x 48 fixed angle rotor for PCR tubes (x 6 PCR strips) (Max 12,000RPM)
CS-C-T-10030	A241.5T – 1.5-2.0ml x 24 fixed angle rotor (≤15,000RPM in VARISPIN (L)15R/15, ≤12,000RPM in VARISPIN (L)12R/12)
CS-C-T-10020	A301.5T – 1.5-2.0ml x 30 fixed angle rotor (Max 12,000RPM)
CS-C-T-10032	AS301.5TX – 1.5-2.0ml x 30 fixed aerosol-tightness angle R (Axllock, ≤15,000RPM in V15R/15, ≤12,000RPM in V12R/12)
CS-C-T-10040	A481.5T – 1.5-2.0ml x 48 fixed angle(≤13,000RPM in VARISPIN (L)15R/15, ≤12,000RPM in VARISPIN (L)12R/12)
CS-C-T-10050	A1215T – 15ml x 12 fixed angle rotor (Max 12,000RPM)
CS-C-T-10061	A1215TC – 15ml x 12 fixed angle rotor for conical tubes (≤ 13,000RPM in V(L)15R/15, ≤12,000RPM in V(L)12R/12)
CS-C-T-10070	A650T – 50ml x 6 fixed angle rotor (Max 12,000RPM)
CS-C-T-10081	A650TC – 50ml x 6 fixed angle rotor for conical tubes (≤ 13,000RPM in V(L)15R/15, ≤ 12,000RPM in V(L)12R/12)
CS-C-T-10090	A850T – 50ml x 8 fixed angle rotor (Max 12,000RPM)
CS-C-T-10100	A685T – 85ml x 6 fixed angle rotor (Max 12,000RPM)
CS-C-T-10112	AS685TX – 85ml x 6 fixed aerosol-tightness angle rotor with CRYSTE Axllock(Max 12,000RPM)

Swing Out Rotor

SKU	Description
CS-C-T-20010	S4250TE – 250ml 4-wing swing rotor for rectangular/well plate buckets (Max 4,000RPM)
CS-C-T-20020	S4250T – 250ml 4-wing swing rotor for round buckets (≤ 4,500RPM in V(L)15R/12R, ≤ 4,000RPM in V(L)15/12)
CS-C-T-20040	S4100T – 100ml 4-wing swing rotor for round buckets (Max 5,000RPM in VARISPIN (L)15R/12R)
