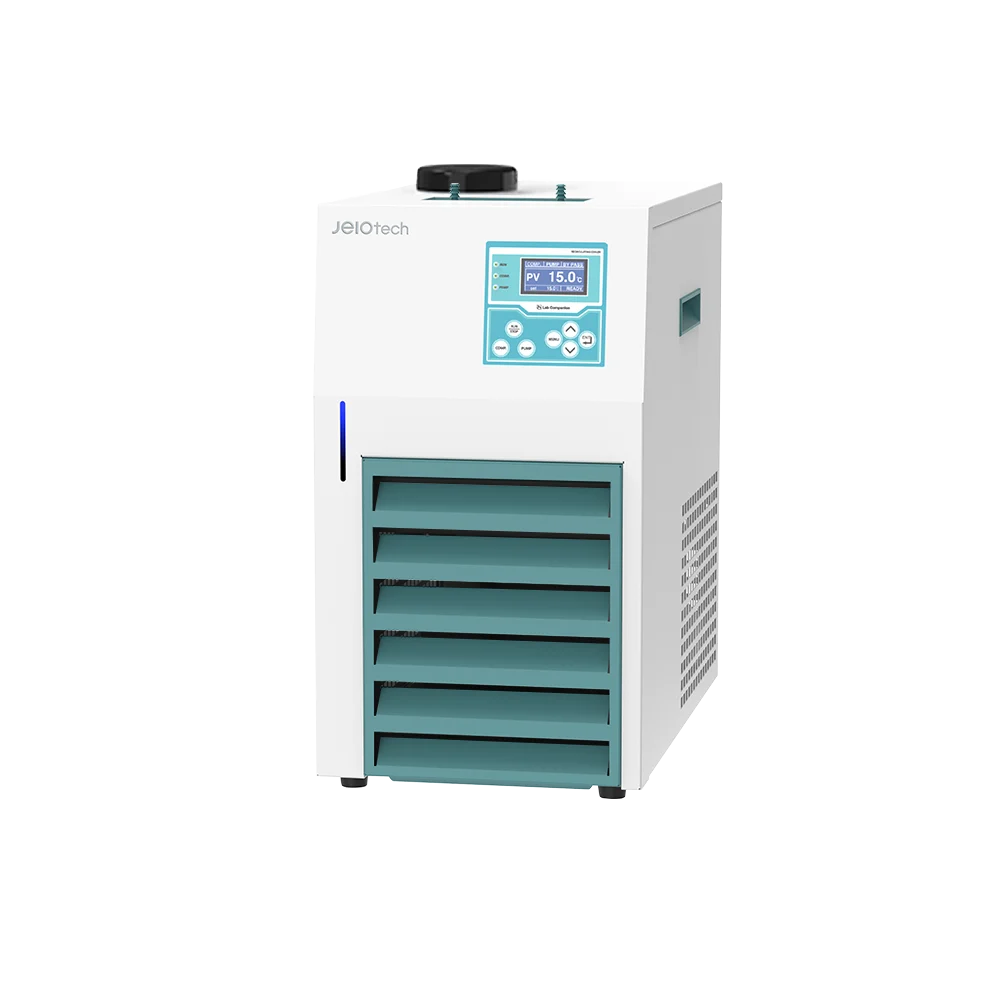

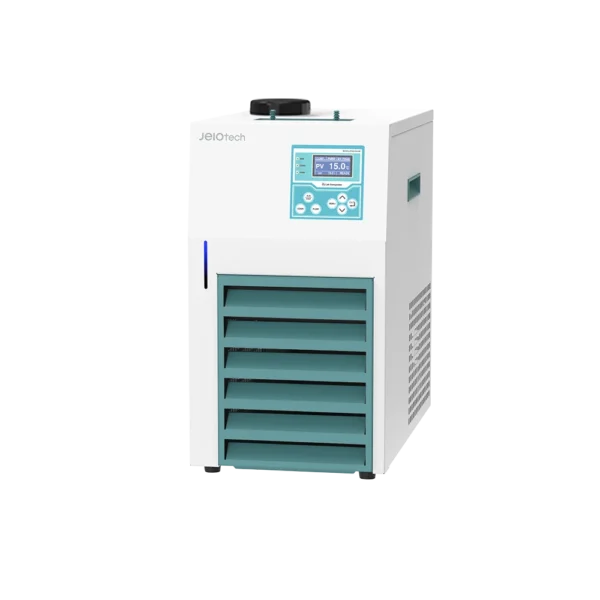

Recirculating Chiller, -20°C to 30°C – Compact

The Compact -20°C to 30°C Recirculating Chiller by Jeiotech is optimized for use with rotary evaporators, ensuring seamless integration in your laboratory. The top-mounted pump in/out port simplifies connections and disassembly, enhancing convenience. Its slim and compact design minimizes installation space, making it ideal for any lab setup.

Unlike conventional compressors that frequently cycle on and off, this chiller employs unique refrigerant control technology, significantly extending compressor life and improving durability. For more information on our high-quality laboratory equipment, visit our Insights page and explore our range at Apex Scientific in South Africa.

The Compact -20°C to 30°C Recirculating Chiller from Jeiotech offers precise, space-saving temperature control for demanding laboratory applications. Designed for researchers who need efficient cooling without sacrificing valuable workspace, this unit combines reliability, ease of use, and sustainable performance. Supplied by Apex Scientific, it is an excellent solution for labs across South Africa.



Smart Cooling Features

This chiller includes a double service valve that prevents refrigerant leakage, improving system efficiency and safety. Moreover, the air-cooled integrated refrigeration system allows for quick and simple installation in most lab environments. A removable condenser grill makes maintenance easy and helps keep performance at its peak. Additionally, the use of environmentally friendly refrigerants supports your lab’s sustainability goals.



User-Friendly Design

The bright LCD display ensures excellent visibility, clearly showing all operations and system conditions. Users can monitor pump pressure and system status in real time, with simultaneous display of set and actual values. As a result, adjustments can be made easily during operation.

The unit offers highly reliable performance through calibration and allows independent on/off control of the refrigeration compressor and pump. An LED backlit level indicator makes it easy to check bath fluid levels at a glance, improving overall safety and convenience.



Outstanding Safety Features

Safety is built into every function. An over-temperature alarm alerts users if abnormal temperatures or low bath fluid levels are detected, preventing system failure. The device also includes over-current and short-circuit protection, and a controller lock function prevents unintended changes during operation.

In the event of a compressor over-temperature, the system will shut down automatically to protect the equipment and preserve the integrity of your experiments.

Accessories


For more information and options, read our article, Optimize Lab Performance: A Practical Guide to Recirculating Chillers. Apex Scientific proudly supports laboratories across South Africa with high-quality equipment and expert insights. Visit our Insights page for more resources or explore our full product range to find the best fit for your application.

Technical Specifications

ModelRC-05
Interior Dimensions
Max. Filling Volume (L / cu ft)5 / 0.18
Refrigerator Capacity (HP)1/3
For Tubing Dia. (mm / inch)9.5 / (3/8″)
Filling Inlet (Ø, mm / inch)37 / 1.46
Exterior Dimensions
Width (mm / inch)300 / 11.8
Depth (with Drain Valve) (mm / inch)550 / 21.7
Height (with Lid) (mm / inch)530 / 20.9
Weight (kg / lbs)45 / 99.2
Temperature Data
Working Temperature Range (℃ / ℉)-10 to 30 / 14 to 86
Temperature Stability at 15℃ (±℃ / ℉)1 / 1.8
Cooling Capacity, Max
at 20℃ (W)580
at 10℃ (W)450
at 0℃ (W)350
at -10℃ (W)270
at -20℃ (W)110
Pump Data
Max. Flow Rate (L / min, gal / min)26 / 6.87
Max. Pressure (bar / psi)0.7 / 10.15
Electrical Requirements
230V, 50/60Hz, A4
Cat. No.ACH651012K
Cat. No. (EU only)ACH651015K
SKUDescription
ACH651012KRC-05 Recirculating Cooler
