Plus Chem Pilot Plant Reactor

The Plus Chem Pilot Plant Reactor from Wiggens is an advanced laboratory equipment system designed to improve research productivity across laboratories in South Africa. This high-quality setup includes a durable support stand, overhead stirrer, and precision-engineered glassware. Optional multi-channel regulating valves provide enhanced control, making the Plus Chem Pilot Plant Reactor adaptable for a range of complex applications.

Available in various volumes—including CH10L, CH20L, CH30L, and others—this system meets both general and specialized pilot-scale needs. Discover more by reading our article, Unlock the Potential of Laboratory Reactors for Your Research.

Brochure
Enquire
Laboratory Glass Reactor Plus Chem Pilot

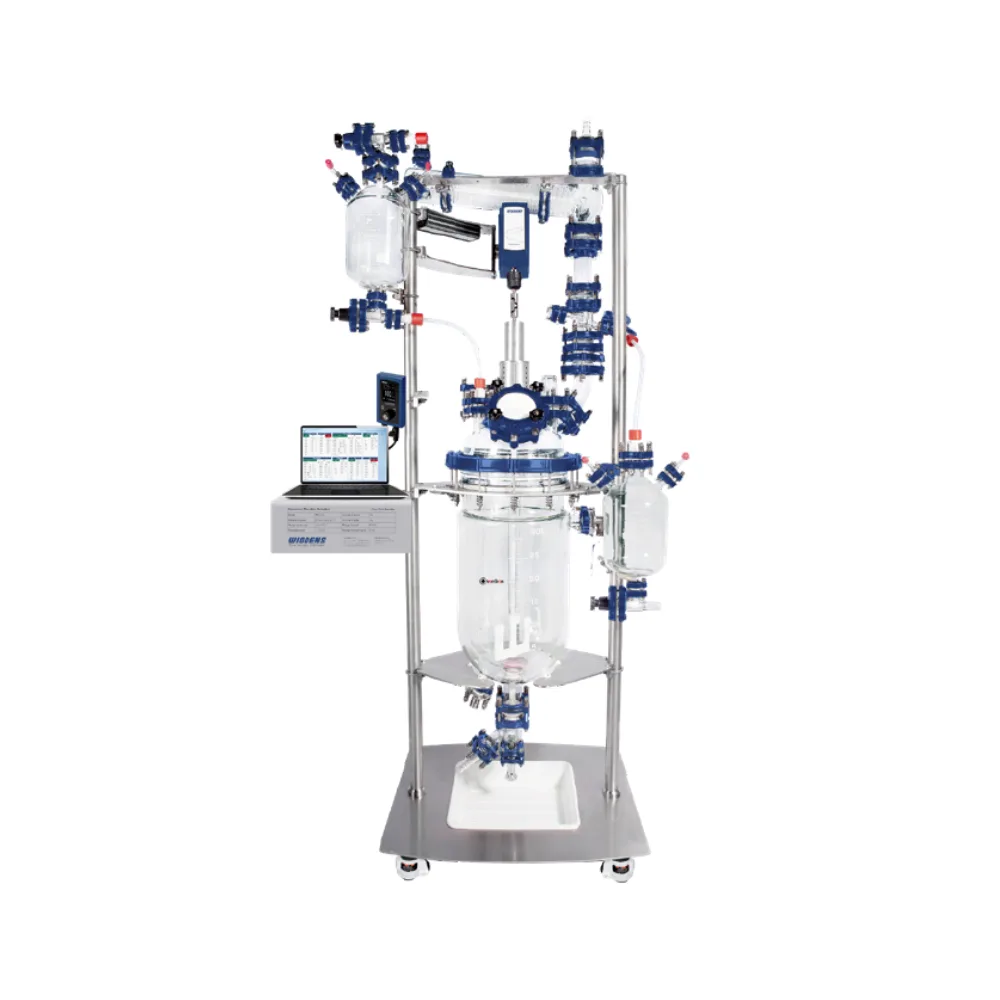

Plus Chem Pilot Plant Reactor by Wiggens is a vital piece of laboratory equipment designed to enhance research efficiency in South Africa. This innovative reactor system includes a support stand, overhead stirrer, and glassware, with the option for a multi-channel regulating valve to increase versatility. The unique design features a smart supporting structure and a clamping system, allowing for quick installation and removal of glassware.



Enhanced Performance

The Plus Chem Pilot Plant Reactor boasts several advantages:

  • Optimized Flange Design: The vessel flange accommodates up to O.D. 450, ensuring robust connections.
  • Superior Heat Transfer: Improved mass transfer effects facilitate more efficient reactions.
  • Mechanical Seal: This feature supports higher-speed mixing applications, enhancing overall performance.
  • Pressure Rupture Disc: Standard on Plus Chem models, it allows for sealed operation during short periods, providing nitrogen protection.



Model Options

Choose from various models to meet your specific needs:

  • CH10L: 10L complete system.
  • CH20L: 20L complete system.
  • CH30L: 30L complete system.
  • CH50LDN300: 50L complete system.
  • CH50LDN400: 50L complete system.
  • CH50LDN450: 50L complete system.
  • CH100LDN400: 100L complete system.
  • CH100LDN450: 100L complete system.

Accessories

Reactor Distillation Reflux
Distillation Reflux / Divider Head, Collection flask: Distillation reflux head and collection flask for glass reactors. Enhance separation, condensation, and solvent recovery in lab-scale distillations.
Glass Reactor
pH meter: pH meter accessory for glass reactors. Enables accurate real-time pH monitoring and control during chemical reactions and synthesis processes
Reactor Multi-Channel Regulating Valve
Multi-Channel Regulating Valve:  Allows precise control of gas or liquid flow during complex chemical processes and reactions
Reactor support structure
Support Stand: Reactor support stand for glass reactors. Provides stable, secure mounting and height adjustment for safe, hands-free operation during experiments.
Reactor bottom valve
Bottom Valve: Bottom valve for glass reactors. Enables controlled draining, sampling, and transfer of reactor contents without disassembly or contamination
View More

Looking for more options or related products? Explore our article, Unlock the Potential of Laboratory Reactors for Your Research, on the Insights page at Apex Scientific.

ModelCH10LCH20LCH30LCH50LDN300CH50LDN400CH50LDN450CH100LDN400CH100LDN450
Reaction volume10L20L30L50L50L50L100L100L
Flange of vesselDN300DN300DN300DN300DN400DN450DN400DN450
Bore diameter of bottom valve0-25mm0-25mm0-25mm0-25mm0-25mm0-25mm0-25mm0-25mm
Reactor lidDN300, 1xDN25(CN) , 1xDN80, 3xDN40, 1xDN25, 1xDN50DN300, 1xDN25(CN) , 1xDN80, 3xDN40, 1xDN25, 1xDN50DN300, 1xDN25(CN) , 1xDN80, 3xDN40, 1xDN25, 1xDN50DN300, 1xDN25(CN) , 1xDN80, 3xDN40, 1xDN25, 1xDN50DN400, 1xDN50(CN) , 1xDN80, 3xDN40, 1xDN25, 1xDN80DN450, 1×45/40(CN)，4×45/40(SN)， 2×29/32(SN)，1×DN100(SN-45° )DN400, 1×45/40(CN)，4×45/40(SN)， 2×29/32(SN)，1×DN100(SN-45° )DN450, 1×45/40(CN)，4×45/40(SN)， 2×29/32(SN)，1×DN100(SN-45° )
Total openings on the lid77777777
Material of reaction vessel and lidHigh quality borosilicate glassHigh quality borosilicate glassHigh quality borosilicate glassHigh quality borosilicate glassHigh quality borosilicate glassHigh quality borosilicate glassHigh quality borosilicate glassHigh quality borosilicate glass
Temperature range-60~200℃-60~200℃-60~200℃-60~200℃-60~200℃-60~200℃-60~200℃-60~200℃
Vessel pressure-1~0.5bar, Standard with rupture disc-1~0.5bar, Standard with rupture disc-1~0.5bar, Standard with rupture disc-1~0.5bar, Standard with rupture disc-1~0.5bar, Standard with rupture disc-1~0.5bar, Standard with rupture disc-1~0.5bar, Standard with rupture disc-1~0.5bar, Standard with rupture disc
Material of wet partBorosilicate glass / PTFE / PFABorosilicate glass / PTFE / PFABorosilicate glass / PTFE / PFABorosilicate glass / PTFE / PFABorosilicate glass / PTFE / PFABorosilicate glass / PTFE / PFABorosilicate glass / PTFE / PFABorosilicate glass / PTFE / PFA
Inlet and outlet of jacketDN25DN25DN25DN25DN25DN25DN25DN25
Type of stirring bearingAvailable at 500 RPM for long-term operation, 800 RPM for short-term operation, if high-speed mixing applications are required, please consult your WiggensMechanical SealMechanical SealMechanical SealMechanical SealMechanical SealMechanical SealMechanical Seal
Diameter of stirring RodØ16mmAvailable at 500 RPM for long-term operation, 800 RPM for short-term operation, if high-speed mixing applications are required, please consult your WiggensAvailable at 500 RPM for long-term operation, 800 RPM for short-term operation, if high-speed mixing applications are required, please consult your WiggensAvailable at 500 RPM for long-term operation, 800 RPM for short-term operation, if high-speed mixing applications are required, please consult your WiggensAvailable at 500 RPM for long-term operation, 800 RPM for short-term operation, if high-speed mixing applications are required, please consult your WiggensAvailable at 500 RPM for long-term operation, 800 RPM for short-term operation, if high-speed mixing applications are required, please consult your WiggensAvailable at 500 RPM for long-term operation, 800 RPM for short-term operation, if high-speed mixing applications are required, please consult your WiggensAvailable at 500 RPM for long-term operation, 800 RPM for short-term operation, if high-speed mixing applications are required, please consult your Wiggens
BladeAnchor style stir paddleØ16mmØ16mmØ28mmØ28mmØ28mmØ28mmØ28mm
Condensation areaDN50 / 0.6m2Anchor style stir paddleAnchor style stir paddleAnchor style stir paddleAnchor style stir paddleAnchor style stir paddleAnchor style stir paddleAnchor style stir paddle
Volume of collection flask5LDN50 / 0.6m2DN50 / 0.6m2DN50 / 0.6m2DN80 / 1.5m2DN80 / 1.5m2DN80 / 1.5m2DN80 / 1.5m2
Volume of liquid funnel5L5L5L10L10L10L25L25L
Temperature sensorØ6mm×600mm5L5L10L10L10L25L25L
Ø6mm×600mmØ6mm×900mmØ6mm×1200mmØ6mm×900mmØ6mm×900mmØ6mm×900mmØ6mm×1200mm
ModelDescription
CRS7550Cylindrical Flask with vacuum jacket, with thermal jacket and bottom valve
CRS7575Cylindrical Flask with vacuum jacket, with thermal jacket and bottom valve
CRS-0839-47Cylindrical Flask with vacuum jacket, with thermal jacket and bottom valve
SQEG069269Heatable reaction vessels with thermal jacket and bottom outlet
CRS-4153B-SBottom valve
4200Thermal jacket connection
SQSO038987Thermal jacket connection
CRS-4153B-SBottom valve
JRS-2904-12Lid for EZChem series
SQEG073335Lid for PlusChem series
JRS-6443-02Lid for bench-top glass reactor
JRS-12858-10/15Lid for reaction vessels，PTFE，DN60
JRS-12860-12/25Lid for reaction vessels，PTFE，DN100
JRS-12862-16Lid for reaction vessels，PTFE，DN150
SQEG069269Heat able reaction vessels with thermal jacket and bottom outlet
JRS-12866-05PTFE Inserts for PTFE reaction vessel lids
JRS-12867-04PTFE Plug
JRS-12869-08Screw thread compression fittings
JRS-12871-03Screw thread compression fittings
WHOS-15 ProDigital stirring motor
WOHS-200 Pro FRemotely controllable high torque / high speed stirrer
JRS-8126-05NCoupling
5-104-7Stirrer bearing PTFE
JRS-8067-105Stirrer bearing Glass
JRS-8127-28Collar w/PTFE Gasket
JRS-5028-31#7 Temperature sensor adapter
JRS-7643-08PTFE joint sleeves
JRS-7598-24Joint clips standard taper joint, acetal plastic
5-250-8-2Stirring shaft and impeller
JRS-2803-02Liquid funnel
JRS-2103-01Glass stopper
JRS-2020-01Offset adapter
JRS-2501-09Condenser with jacket and cooling coil, high-efficiency
JRS-2506-13Condenser with jacket and cooling coil, high-efficiency
MLFM069215pH measurement
JRS-11065-16Distillation Reflux / Divider Head, Collection flask
JRS-2620-02Distillation Reflux / Divider Head, Collection flask
JRS-2002-17Adapter, bushing
8981015Temperature sensor
JRS-12194-02Multi channel regulating valve
CRS-2602Smart supporting structure for All-in-one series
CRS-2605Smart supporting structure for parallel Reactor
CRS-2602-13Smart supporting structure

Insights Article: Unlock the Potential of Laboratory Reactors for Your Research

Product Enquiry Handbook: Glass Reactors

Operating Manual
