Overhead Stirrer – High Torque Remote Controllable

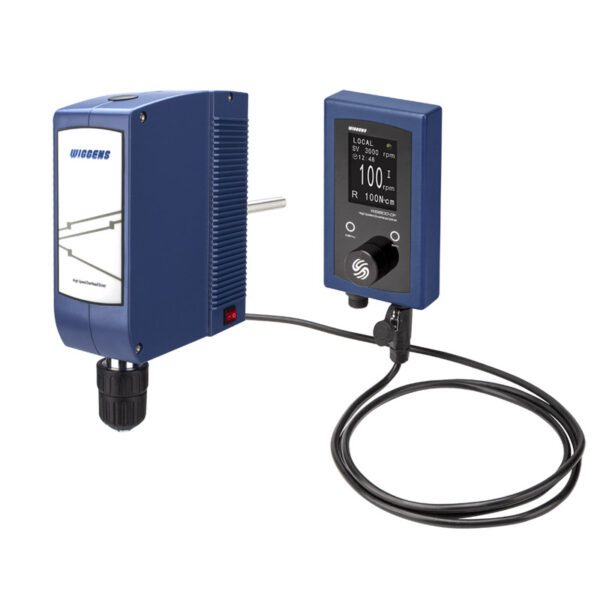

Overhead Stirrer High Torque Remote Controllable models WB1800-DF, WB3000-DF, and WB6000-DF by Wiggens are advanced laboratory equipment solutions for high-viscosity mixing in South Africa. Designed for precision and control, they feature remote operation via a prestige touch TFT controller, a maintenance-free BLDC motor, and an intelligent control system that maintains constant speed while adapting to workload changes.

Explore our range at Apex Scientific and check out our Insights page to learn more about choosing the right Overhead Stirrer High Torque Remote Controllable model.

Economy Overhead Stirrer High Torque Remote Controllable Solutions for Demanding Laboratory Tasks

The Economy Overhead Stirrer High Torque Remote Controllable series by Wiggens—featuring models WB1800-DF, WB3000-DF, and WB6000-DF—offers advanced functionality for laboratories across South Africa. Available from Apex Scientific, these stirrers are built for high-viscosity mixing in research and industrial labs. With intelligent control systems, remote operation, and robust construction, they meet the evolving needs of modern laboratories.



High-Performance Stirring with Intelligent Motor Control

Each model features a maintenance-free brushless DC (BLDC) motor that delivers powerful torque, smooth rotation, and low-noise performance. These motors work well for continuous mixing in demanding environments like chemical synthesis and formulation. Additionally, the intelligent control system keeps motor speed constant, even when viscosity changes—ensuring stable and reproducible results in every experiment.



Remote Operation with Prestige Touch Control

All models operate via a prestige touch TFT controller, enabling remote control of all key parameters. This setup enhances safety and efficiency by allowing adjustments without needing to be near the device. As a result, scientists reduce workflow interruptions and gain greater control over complex stirring processes.



Safe, Silent, and Adaptive Stirring Experience

Wiggens designed these stirrers with safety and comfort in mind. The best effort function automatically adjusts stirring speed based on resistance. Furthermore, microprocessor-controlled start and stop functions reduce splashing and increase safety during operation. Each unit also operates silently and vibration-free, which is ideal for extended use in quiet lab settings.



Flexible and Easy to Use

A through-shaft mechanism allows users to vertically adjust the impeller easily, accommodating different vessel sizes. The tool-free keyless chuck simplifies impeller changes and supports shaft diameters from 0.5 to 10 mm. Therefore, switching between experiments is quick and efficient.

Accessories

Reliable Specifications for Demanding Applications

Each stirrer delivers 150 W of power and allows speed adjustments with 1 rpm accuracy. This level of precision makes the series ideal for scientists who need control and reliability in every process. Additionally, the robust design and advanced features make these stirrers a smart long-term investment for any lab. To decide which model suits your workflow, visit our Insights page and explore our article: Choosing the Right Overhead Stirrer for Your Laboratory: Key Considerations and Applications.

ModelWB3000-DFWB1800-DFWB6000-DF
Order No.100400F100600F100600F
Speed range [rpm] 1)30~600 (I)20~360 (I)60~1200 (I)
601~3000 (II)361~1800 (II)1201~6000 (II)
Setting accuracy speed [rpm]1
Deviation of speed measurement n > 300rpm±3 %
Speed DisplayTFT display
Clockwise or counterclockwise of stirringYes
Speed settingTouch key and turning knob
Power [W]150
Stirring quantity max [L / H2O]100
Motor principleBrushless DC motor
Torque max. at stirring shaft [N-cm] 2)339(I) / 68(II)563(I) / 113(II)170(I) / 34(II)
Stirring element fasteningKeyless chuck, easy to install and replace the shaft.
Chuck range diameter [mm]0.5~10
Hollow shaft, inner diameter [mm]10.2
Fastening on standExtension arm
Extension arm diameter [mm]13
Extension arm length [mm]124
Housing materialCast aluminum coating
Interface RS-232/485 and analog connectionYes
Dimensions of motor (W x H x D)200 x 95 x 230
Weight4.5
Power supply100~240VAC,50/60Hz

1. Two grades of stirring speed for this series, the low-speed has more torque, suitable for chemical reaction system. The high-speed is suitable for sample pretreatment.
2. The two speed ranges correspond to different maximum torques

SKUDescription
100400FWB3000-DF Remotely Controllable Overhead Stirrer
100600FWB1800-DF Remotely Controllable Overhead Stirrer
100800FWB6000-DF Remotely Controllable Overhead Stirrer
ModelDescription
MD-24Magnetic stirrer guides
KA22-02Stirrer guides
5.101.1.7Universal stirrer guide
8050-02High vacuum stirrer guide
5.0.0619High performance stirrer guide
8126-05Coupling
KA11-91Lifting platform
WH220027Clamps
KA00-52Three-Prong Clamp
KA00-50Two-Prong Clamp
KA00-57Utility Clamp Flat
KA00-58Utility Clamp, 3 Prong
KA00-71BClamp Swivel
KA00-67FExtension-Type
KA00-70AJumbo Clamp
KA00-56Chain Clamp
KA00-69Frame Holder
11090-17Clamp Holder All-Position
11084-11Clamp Universal Swivel, “Power Hold”
KA00-50BFlexible Arm
11058-10Ultraflex clampling system
WE-11Extension Rod
WHIClamp Holder
WH2Clamp Holder
WH4Clamp Holder
WH11Plate stand
WF11-DPlate stand
WH11-SWH-stand
WH33-SWH-stand
WH30Electric H-stand
WH21-DH-stand with Ø16mm double-rod
WH23-DSH-stand with Ø16mm single-rod
WH43-SWH mobile floor stand with Ø32mm single-rod
005.230.2Screw Propeller, 4-Bladed (PTFE Coated)
005.330.2Anchor Impeller (PTFE Coated)
005.430.2Centrifugal Stirrer, 2-Bladed (PTFE Coated)
005.80850.300Retreat Curve Impeller (PTFE Coated)
005.530.1Impeller Shafts for Blades (PTFE Coated)
002.052.1Blades (PTFE Coated)
005.100830EXPlain Impeller Shafts (PTFE Coated)
005.606040.4 Blade Angled Type 45° Metric
005.706070.Flat Impeller
005.90850.Adjustable Turbine
9603Pivoting Blade
9703Straight 2-Blade
9053Straight 4-Blade
9209Centrifugal
94033-Hole Blade
95036-Hole Blade
9003Pitched Leaf
9103Propeller Stirrers, 3 Fix Blades
9610Anchor Impeller
9025Turbine Impeller
9030Radial Flow
9020Multi-Purpose

Insights Article: Choosing the Right Overhead Stirrer for Your Laboratory: Key Considerations and Applications

Product Enquiry Handbook: Overhead Stirrers

Operating Manual
