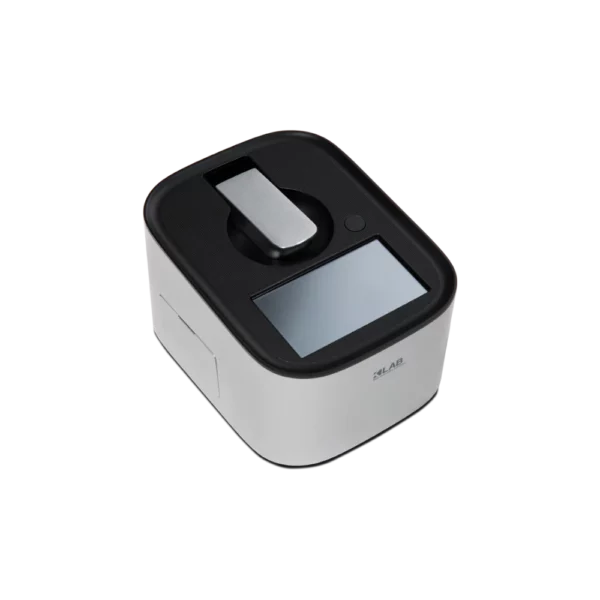

Microvolume Spectrophotometer – OPTIZEN NanoQ Lite

The OPTIZEN NanoQ Lite Microvolume Spectrophotometer by K-Lab is a compact and efficient micro sample analyzer, perfect for laboratories in South Africa. Featuring a user-friendly interface and utilizing the Slope Algorithm, it provides accurate absorbance measurements for proteins and cell counting.

Users can save results directly to a USB drive or smartphone, enhancing data management. With its lightweight design and intuitive touch LCD panel, operating the NanoQ Lite is effortless. Learn more about laboratory equipment on our Insights Page .

The OPTIZEN NanoQ Lite Microvolume Spectrophotometer by K-Lab is an advanced micro sample analyzer, designed for precision and efficiency in laboratory settings. This compact device is perfect for researchers in South Africa, combining a sophisticated design with an intuitive user interface (UI) that enhances usability.



Efficient Measurement Capabilities

The OPTIZEN NanoQ Lite utilizes a unique Slope Algorithm, a light path optimization technique that enables the measurement of a wide range of absorbance. This spectrophotometer excels at measuring protein concentrations and conducting cell counting with ease. Moreover, users can save measurement results directly to a USB flash drive or smartphone, facilitating efficient data management.



User-Friendly Design

With dimensions of 148 x 179 x 110 mm and a lightweight of just 1.4 kg, this spectrophotometer is highly portable. The built-in touch LCD panel allows users to operate the device effortlessly. Notably, there is no need for a separate computer, as the main unit handles all controls. Furthermore, the intuitive interface eliminates the need for a user manual, making it accessible for scientists at all levels.



Advanced Features

The OPTIZEN NanoQ Lite is equipped with three LEDs (260 nm, 280 nm, and 600 nm) and a single silicon photodiode, significantly reducing costs while maintaining essential functions. It also features a baseline correction function using an additional LED (360 nm), enhancing measurement accuracy. Users can easily adjust the designated factors to suit their laboratory environment and specific protein types.



Quick and Reliable Operations

This spectrophotometer eliminates the need for measurement standby, as it does not require lamp warm-up. Users can conduct measurements swiftly, without the hassle of setting the pathlength according to concentration. With a simple button press, the main functions are accessible, streamlining the workflow in any laboratory.

The OPTIZEN NanoQ Lite Microvolume Spectrophotometer is an invaluable tool for scientists seeking reliable and accurate results in their research. Explore the range of laboratory equipment at Apex Scientific today! Learn more on our Insights page.

Instrument TypeMicrovolume Spectrophotometer
Minimum Sample Volume1 μL
Sample Number1
Pathlength0.03 ~ 0.5 mm (Auto ranging)
Spectral Resolution≤ 8.0 nm
Absorbance Precision0.002 Abs (0.5 mm pathlength)
Absorbance Range0 – 40 Abs
Detection LimitAbout 2 ng/μL (dsDNA)
Maximum Concentration2,000 ng/µL (dsDNA), 60 mg/ml (BSA), 28.8 mg/ml (IgG)
Photometric Range(10 mm Equivalent)Cuvette: 0~2 A
Photometric Accuracy3% (at 1A/mm at 280 nm)
Light SourceLEDs
Measurement Wavelength260, 280 nm / 600 nm(Cuvette)
Baseline Correction Wavelength360 nm
DetectorSilicon photodiode
Measurement Time‹10 seconds
Footprint(W × D)145 x 190 mm
Weight1.4 kg
Operating Voltage12 V (DC)
Power ConsumptionOperating – 4.7~5.2 W, Standby – 3.3 W
Display4.3-inch, Touch-screen glove compatible
Display resolution480 x 272 pixels (Color display)
Internal Storage4 GB
ConnectivityUSB-A, USB-B, RS232C
AccessoriesThermal Printer(Optional)
SKUDescription
UNT0003OPTIZEN NanoQ Lite Spectrophotometer
