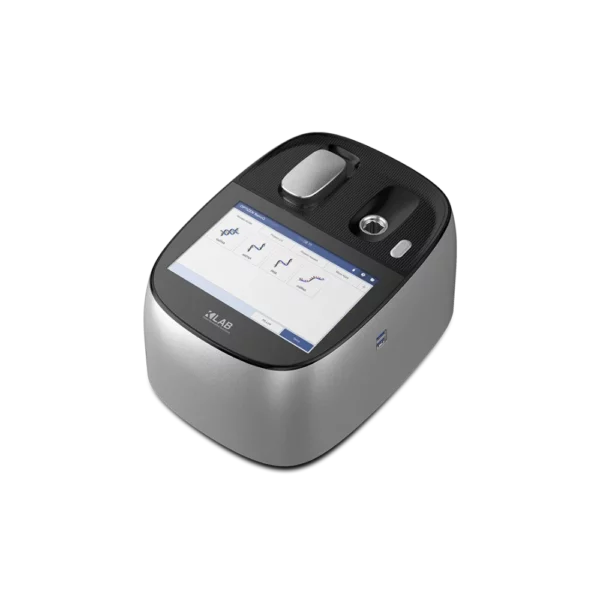

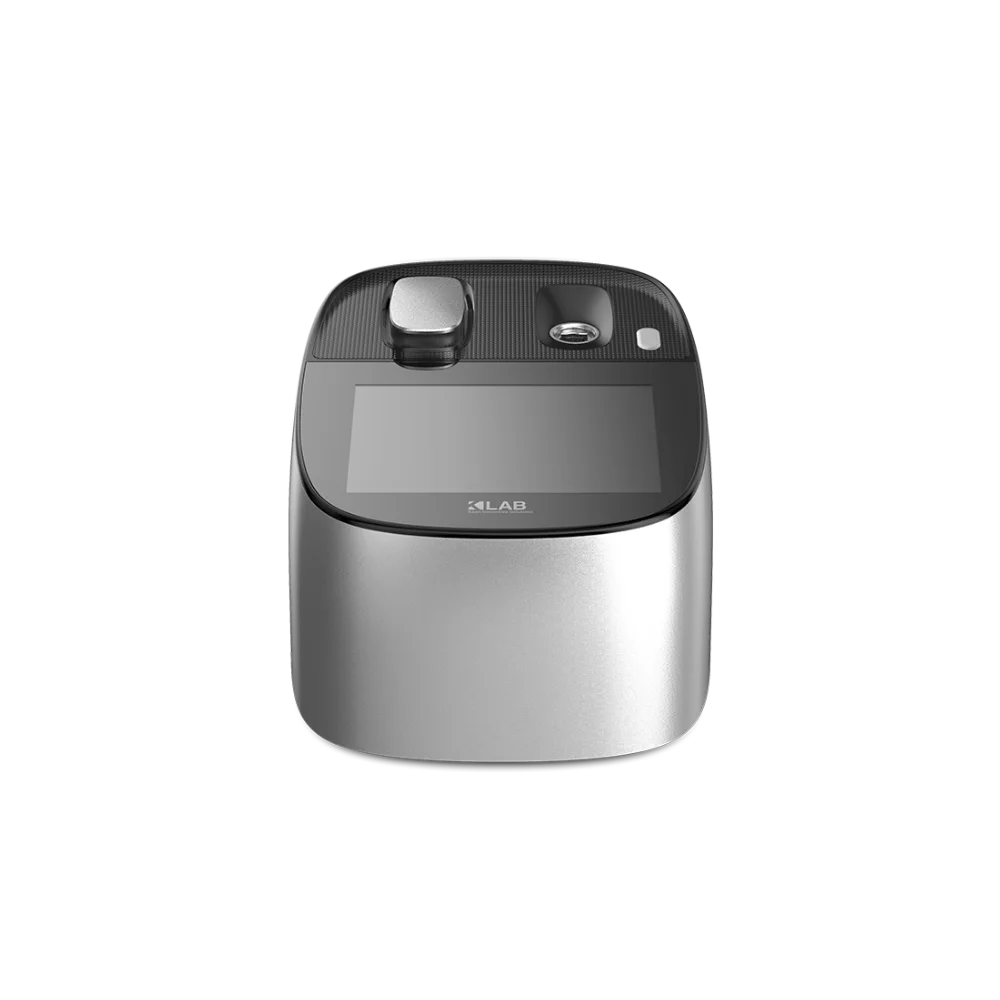

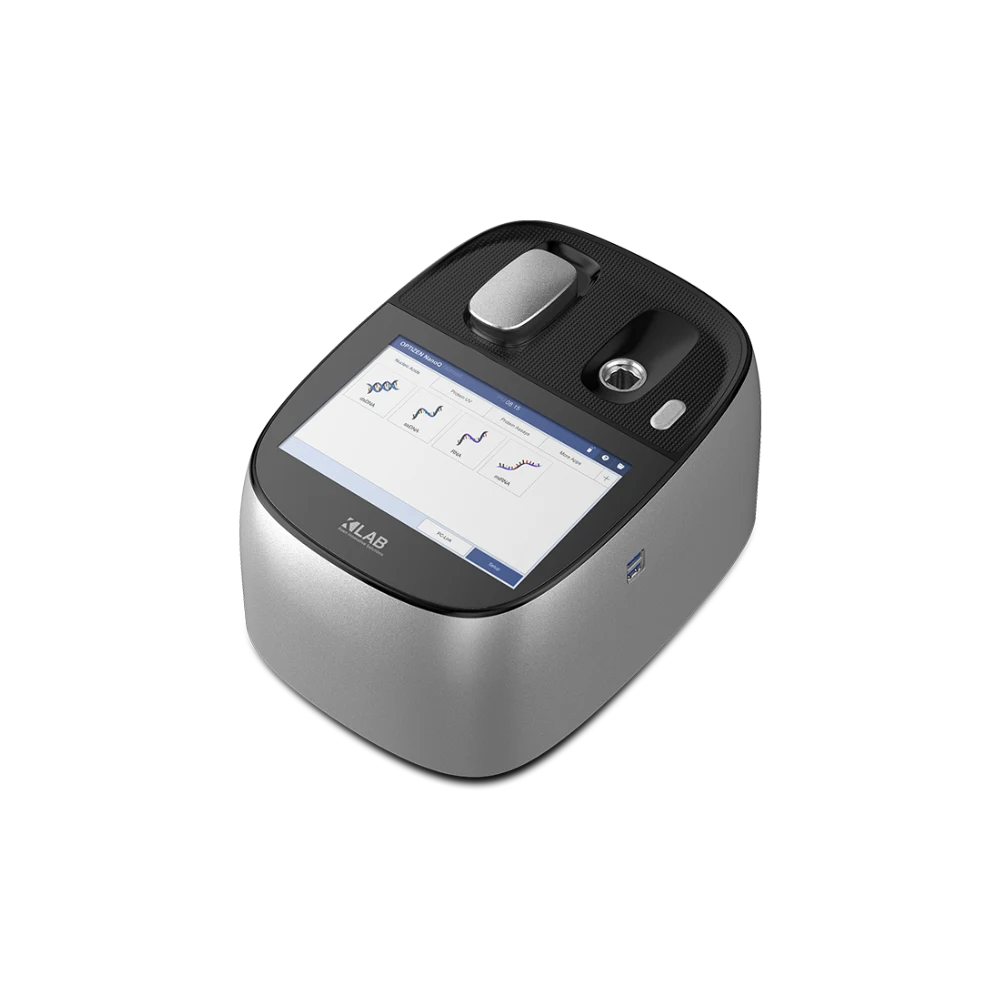

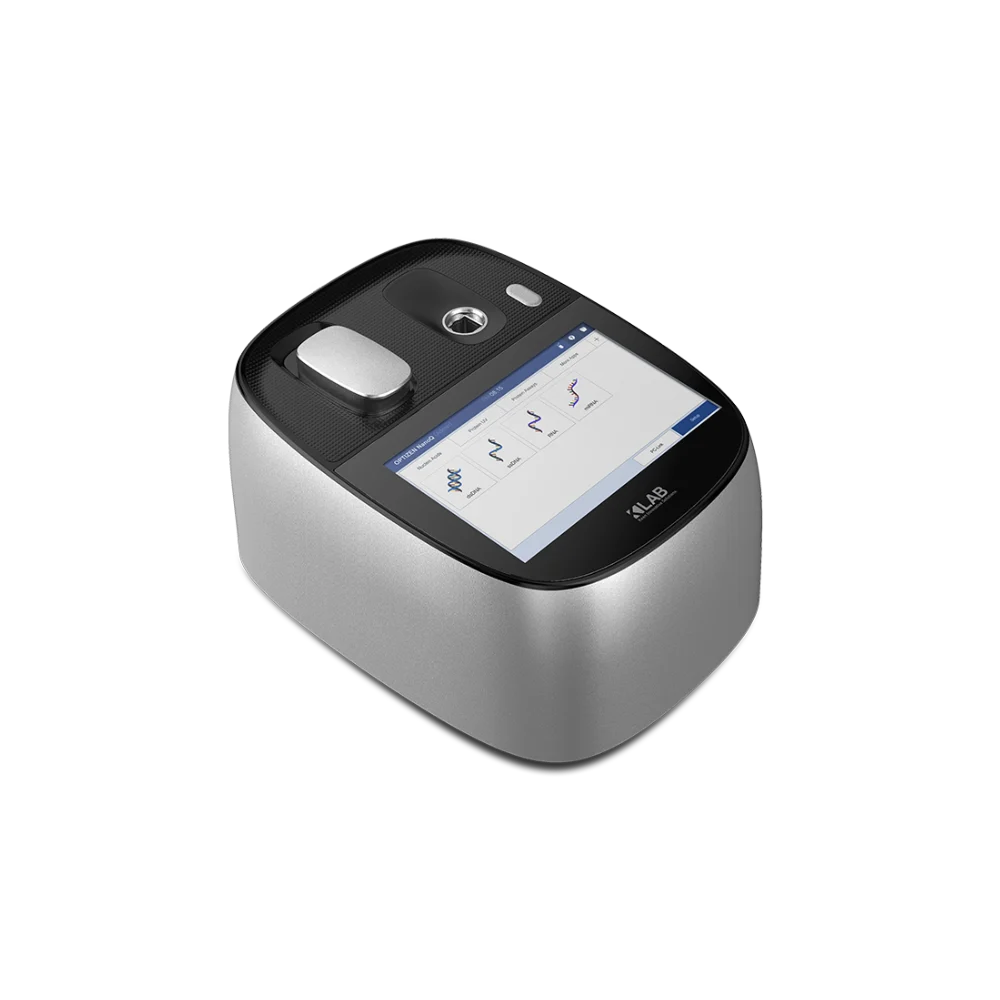

Microvolume Spectrophotometer – OPTIZEN NanoQ

Microvolume Spectrophotometer – OPTIZEN NanoQ by K-Lab is a cutting-edge instrument designed for rapid and precise quantitative analysis of nucleic acids and proteins. This compact device features a user-friendly interface and offers both microvolume and cuvette measuring modes, accommodating a wide range of concentrations.

With over 20 measuring modes available, researchers can easily customize their analyses. The OPTIZEN NanoQ enables immediate measurements without lamp warm-up time and allows results to be saved or downloaded to a USB drive. Experience seamless operation with its intuitive LCD screen. Visit our Insights Page for more information.

The OPTIZEN NanoQ Microvolume Spectrophotometer by K-Lab is a high-performance device engineered for fast, accurate quantification of nucleic acids and proteins. This device combines modern design with user convenience, making it an essential tool in laboratories across South Africa.



Versatile Measurement Modes

The OPTIZEN NanoQ offers two primary measuring modes: microvolume and cuvette. This versatility allows users to analyze a wide range of concentrations effortlessly. Moreover, with over 20 customizable measuring modes available, researchers can tailor their analyses to meet specific needs.



Compact and User-Friendly Design

This small, compact spectrophotometer features a straightforward control interface. Users can rely on the NanoQ to automatically adjust the pathlength based on the concentration, ensuring accurate measurements every time. Additionally, scientists can create a personalized menu that highlights their most accessed measuring modes for quick access.



Instant Readings

One of the standout features of the OPTIZEN NanoQ is its ability to provide immediate measurements without requiring lamp warm-up time. This efficiency is crucial in fast-paced laboratory environments, allowing researchers to focus on their experiments without unnecessary delays.



Data Management and Accessibility

Furthermore, results from the OPTIZEN NanoQ can be easily saved or downloaded to a USB flash drive. This feature simplifies data management and sharing, making it easier for researchers to collaborate and present their findings.



Intuitive Operation

The intuitive LCD screen and touch functionality make the NanoQ easy to operate, even for novice users. The design allows for simple sample placement, ensuring accurate loading and measurement every time.



Full Spectrum Analysis

The Microvolume Spectrophotometer – OPTIZEN NanoQ can measure the UV-VIS absorption spectrum from 190 nm to 850 nm in seconds. Utilizing array-type spectrophotometer technology, it features a powerful Xenon lamp and a 2048-pixel CMOS sensor. Additionally, the device includes advanced algorithms for peak and valley detection, which enhances the accuracy of spectral analysis.

To learn more visit our Insights page. The OPTIZEN NanoQ is an invaluable asset for laboratories, empowering researchers to achieve precise and reliable results with confidence. Explore the possibilities with Apex Scientific today!

Product NameOPTIZEN NanoQ PlusOPTIZEN NanoQ
Photometrics SystemMicrovolume Spectrophotometer
Light Source(s)Xenon flash lamp
LifetimeUp to 10 years
DetectorCMOS linear image sensor (2048 pixels)
Spectral Bandwidth1.0 nm (FWHM at Hg 253.7 nm)
Wavelength Range190 – 850 nm
Wavelength Display (setting)1 nm
Wavelength Accuracy± 1 nm
Microvolume
Minimum Sample Volume1 μL
Photometric Range0.04 – 550 A (10mm equivalent)
Detection Limit (Microvolume)2 ng/μL (dsDNA)
0.06 mg/mL (BSA)
0.003 mg/mL (IgG)
Maximum Concentration27,500 ng/μL (dsDNA), 400 mg/mL (BSA)
Cuvette
Photometric Range0 – 2 A
Detection Limit0.2 ng/μL (dsDNA)
0.006 mg/mL (BSA)
0.0003 mg/mL (IgG)
Center Height (Z-height)8.5 mm
Absorbance Precision0.002 A (0.5 mm path) or 1%
Absorbance Accuracy3% (at 0.97A at 302 nm)
Measurement Time< 8 seconds
Software CompatibilityWindows ® 7 and 10
TouchscreenMultipoint capacitive touch
CPUOcta Core ARM ® Cortex TM -A53 Processor
Storage32 GB Internal Storage
Glove CompatibilityCompatible with lab gloves
Connectivity4 x USB ports, Ethernet, and RS-232
Display7-inch, 1280 x 800 HD color display
Operating System (OS)Android TM
Footprint (W*D)216*290 mm
Weight3.0 kg



Measurement menu configuration

MenuFactor
Nucleic Acid
(ng-㎝/㎕)
dsDNA50
ssDNA33
RNA40
miRNA33
CustomInput
Protein
(g-㎝/㎕)
BSA1.5
SA1.49, 1.72
IgG0.71, 0.74
IgE Human0.65
Lysozyme0.38
OD11
OD600OD6001
SKUDescription
UNT0005OPTIZEN NanoQ Spectrophotometer
UNT0004OPTIZEN NanoQ Plus Spectrophotometer
