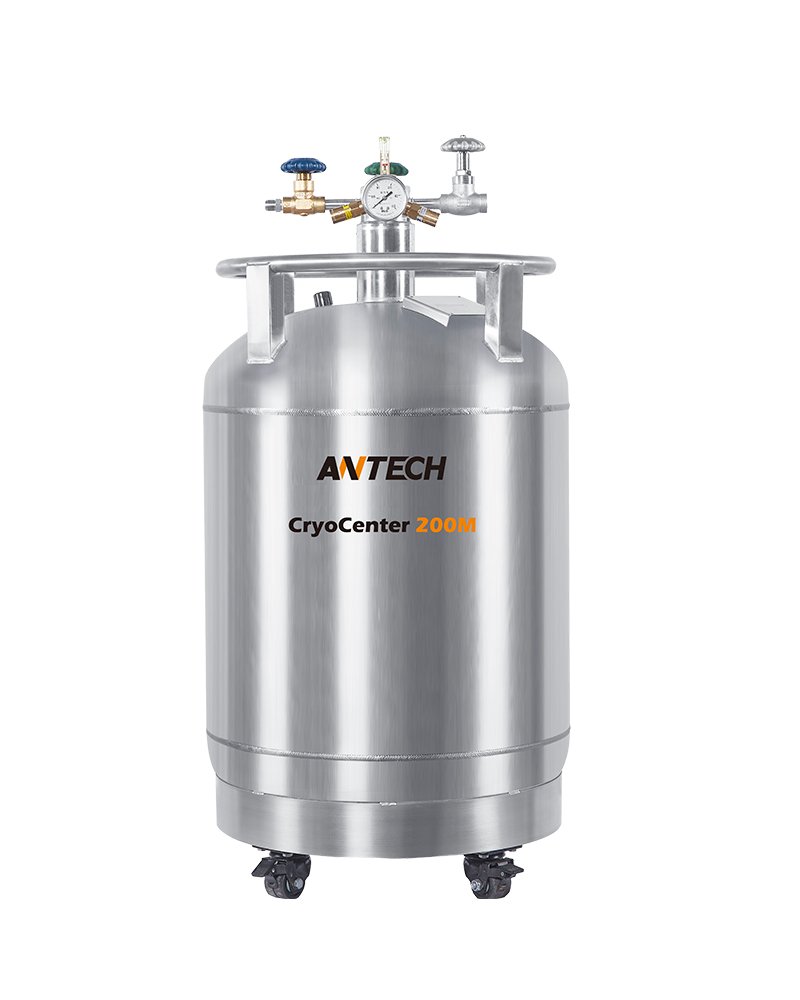

Liquid Nitrogen Supply Tank

The CryoCentre Liquid Nitrogen Supply Tank by Antech Scientific offers an efficient and durable storage solution for liquid nitrogen. Made from high-quality stainless steel SUS304, it withstands rigorous laboratory conditions for long-term use.

The tank vaporizes small amounts of LN2 to supply various containers, including dewars and controlled rate freezers. Safety features include a dual pressure relief valve design, and convenient casters ensure easy mobility.

Explore our range at Apex Scientific, South Africa and our Insights page and article, Liquid Nitrogen Freezers: Essential Features, Storage Options, and Key Applications about how the CryoCentre can meet your needs.

The Liquid Nitrogen Supply Tank – CryoCentre by Antech Scientific offers a highly efficient solution for storing liquid nitrogen. Built from premium SUS304 stainless steel, it delivers exceptional durability and long-term reliability, making it ideal for demanding laboratory environments across South Africa.



Efficient Nitrogen Supply

The CryoCentre utilizes a low-pressure system that vaporizes small amounts of liquid nitrogen to discharge and supply LN2 to various containers and equipment, including dewars, vapor freezers, and controlled rate freezers. This innovative design supports seamless operation, making it an invaluable asset in any laboratory setting.



Enhanced Safety Features

Each CryoCentre container is equipped with essential components, including a filling/discharge valve, a pressure relief valve, and a vaporizing valve. The dual pressure relief valve design enhances safety, providing peace of mind during use. Additionally, all models come with casters, facilitating easy movement around the laboratory.



Advanced Monitoring Options

For added convenience, an advanced digital display liquid level meter is available, allowing for precise monitoring of nitrogen levels. A pressure building regulator can also be included for automatic filling applications, streamlining your workflow.

If you are looking for other options or products, check out our article, Liquid Nitrogen Freezers: Essential Features, Storage Options, and Key Applications, on our Insights page. The Liquid Nitrogen Supply Tank – CryoCentre is a premier choice for scientists seeking reliable laboratory equipment from Apex Scientific.

ModelCryoCenter 200CryoCenter 240CryoCenter 300CryoCenter 500
Liquid nitrogen capacity (L)200240300500
Infusion volumes (L/min)≥10≥10≥10≥10
Static evaporation ( % )*0,80,60,80,8
Overall height (mm)1280158014101500
External diameter (mm)656656806958
Weight empty/full (kg)96/259130/325205/449265/672
Standard working pressure (psig/bar/MPa)13/0.9/0.0913/0.9/0.0913/0.9/0.0913/0.9/0.09
Relief valve pressure (psig/bar/MPa)14/0.97/0.097 * 1pc + 22/1.5/0.15 * 1pc
Bursting disc burst pressure (psig/bar/MPa)51/3.5/0.3551/3.5/0.3551/3.5/0.3551/3.5/0.35
Pressure gauge indicating range (MPa)0 ~ 0.250 ~ 0.250 ~ 0.250 ~ 0.25
Fill/discharge valve, vent valve, pressure building valveYesYesYesYes
Pressure building regulator
Pressure relief value (Safety valve)Yes, 2 pcsYes, 2 pcsYes, 2 pcsYes, 2 pcs
Liquid level meter, float typeYesYesYesYes
Liquid level meter, electronic digital display type
Connection portCGA295CGA295CGA295CGA295
Caster & hose (2 meter)YesYesYesYes



CryoCenter M Series: Supplied with pressure building regulator & float type liquid level meter, for auto filling of cryogenic freezer & controlled rate freezer
ModelCryoCenter 200MCryoCenter 240MCryoCenter 300MCryoCenter 500M
Liquid nitrogen capacity (L)200240300500
Infusion volumes (L/min)≥10≥10≥10≥10
Static evaporation ( % )*0,80,60,80,8
Overall height (mm)1280158014101500
External diameter (mm)656656806958
Weight empty/full (kg)96/259130/325205/449265/672
Standard working pressure (psig/bar/MPa)13/0.9/0.0913/0.9/0.0913/0.9/0.0913/0.9/0.09
Relief valve pressure (psig/bar/MPa)14/0.97/0.097 * 1pc + 22/1.5/0.15 * 1pc
Bursting disc burst pressure (psig/bar/MPa)51/3.5/0.3551/3.5/0.3551/3.5/0.3551/3.5/0.35
Pressure gauge indicating range (MPa)0 ~ 0.250 ~ 0.250 ~ 0.250 ~ 0.25
Fill/discharge valve, vent valve, pressure building valveYesYesYesYes
Pressure building regulatorYesYesYesYes
Pressure relief value (Safety valve)Yes, 2 pcsYes, 2 pcsYes, 2 pcsYes, 2 pcs
Liquid level meter, float typeYesYesYesYes
Liquid level meter, electronic digital display type
Connection portCGA295CGA295CGA295CGA295
Caster & hose (2 meter)YesYesYesYes



CryoCenter S Series: Supplied with pressure building regulator & electric digital liquid level meter, for auto filling of cryogenic freezer & controlled rate freezer
ModelCryoCenter 200SCryoCenter 240SCryoCenter 300SCryoCenter 500S
Liquid nitrogen capacity (L)200240300500
Infusion volumes (L/min)≥10≥10≥10≥10
Static evaporation ( % )*0,80,60,80,8
Overall height (mm)1280158014101500
External diameter (mm)656656806958
Weight empty/full (kg)96/259130/325205/449265/672
Standard working pressure (psig/bar/MPa)13/0.9/0.0913/0.9/0.0913/0.9/0.0913/0.9/0.09
Relief valve pressure (psig/bar/MPa)14/0.97/0.097 * 1pc + 22/1.5/0.15 * 1pc
Bursting disc burst pressure (psig/bar/MPa)51/3.5/0.3551/3.5/0.3551/3.5/0.3551/3.5/0.35
Pressure gauge indicating range (MPa)0 ~ 0.250 ~ 0.250 ~ 0.250 ~ 0.25
Fill/discharge valve, vent valve, pressure building valveYesYesYesYes
Pressure building regulatorYesYesYesYes
Pressure relief value (Safety valve)Yes, 2 pcsYes, 2 pcsYes, 2 pcsYes, 2 pcs
Liquid level meter, float type
Liquid level meter, electronic digital display typeYesYesYesYes
Connection portCGA295CGA295CGA295CGA295
Caster & hose (2 meter)YesYesYesYes



CryoCenter Series: Supplied with float type liquid level meter, without pressure building regulator, for liquid nitrogen storage.
ModelCryoCenter 30CryoCenter 50CryoCenter 100
Liquid nitrogen capacity (L)3050100
Infusion volumes (L/min)≥5≥5≥5
Static evaporation ( % )*3,02,21,2
Overall height (mm)8509601120
External diameter (mm)404455556
Weight empty/full (kg)30/5438/7963/144
Standard working pressure (psig/bar/MPa)13/0.9/0.0913/0.9/0.0913/0.9/0.09
Relief valve pressure (psig/bar/MPa)14/0.97/0.097 * 1pc + 22/1.5/0.15 * 1pc
Bursting disc burst pressure (psig/bar/MPa)
Pressure gauge indicating range (MPa)0 ~ 0.250 ~ 0.250 ~ 0.25
Fill/discharge valve, vent valve, pressure building valveYesYesYes
Pressure building regulator
Pressure relief value (Safety valve)Yes, 2 pcsYes, 2 pcsYes, 2 pcs
Liquid level meter, float typeYesYesYes
Liquid level meter, electronic digital display typeN/A
Connection portCGA295CGA295CGA295
Caster & hose (2 meter)YesYesYes
SKUDescription
2321000CryoCenter 30 Liquid Nitrogen Supply Tank
2322000CryoCenter 50 Liquid Nitrogen Supply Tank
2323000CryoCenter 100 Liquid Nitrogen Supply Tank
2324000CryoCenter 200 Liquid Nitrogen Supply Tank
2325000CryoCenter 240 Liquid Nitrogen Supply Tank
2326000CryoCenter 300 Liquid Nitrogen Supply Tank
2327000CryoCenter 500 Liquid Nitrogen Supply Tank
2331000CryoCenter 200M Liquid Nitrogen Supply Tank
2332000CryoCenter 240M Liquid Nitrogen Supply Tank
2333000CryoCenter 300M Liquid Nitrogen Supply Tank
2334000CryoCenter 500M Liquid Nitrogen Supply Tank
2341000CryoCenter 200S Liquid Nitrogen Supply Tank
2342000CryoCenter 240S Liquid Nitrogen Supply Tank
2343000CryoCenter 300S Liquid Nitrogen Supply Tank
2344000CryoCenter 500S Liquid Nitrogen Supply Tank
