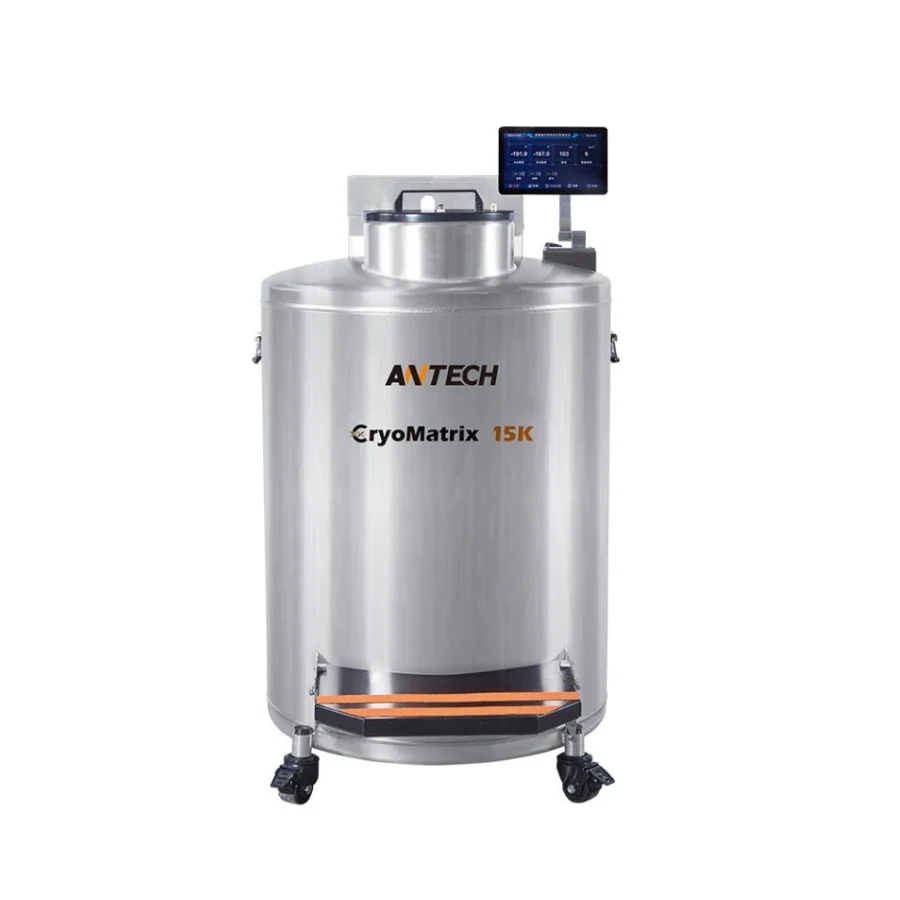

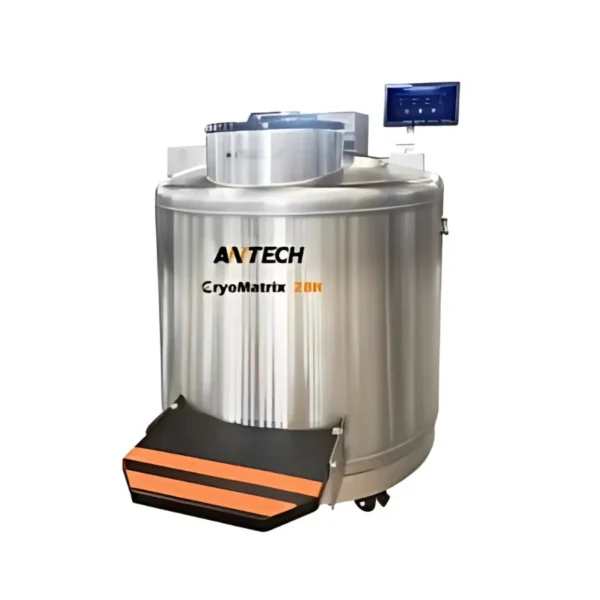

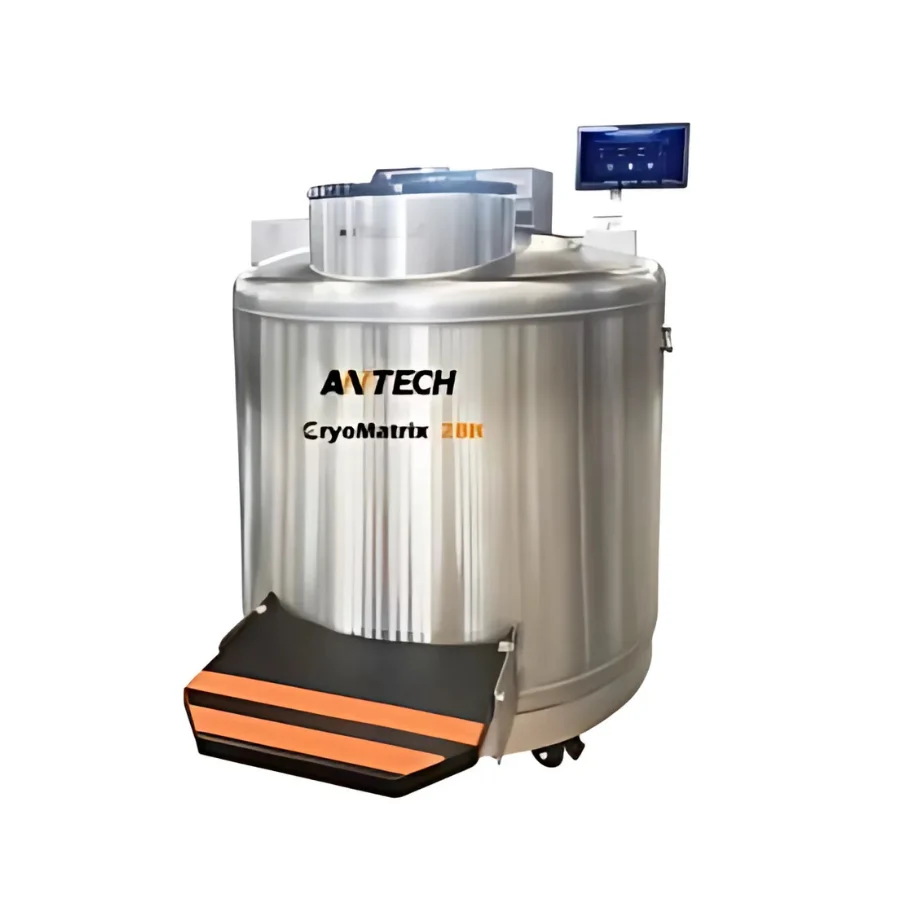

Liquid Nitrogen Freezers – CryoMatrix

The CryoMatrix Liquid Nitrogen Freezers from Antech Scientific deliver optimal storage conditions for sensitive biological samples and are available through Apex Scientific. This advanced vapor-phase liquid nitrogen system maintains ultra-low temperatures down to -190°C, ensuring exceptional sample preservation and long-term stability.

Designed for high-capacity needs in life sciences and cell therapy applications, CryoMatrix freezers feature an automatic filling system and comprehensive monitoring for all-around sample protection. Discover the full CryoMatrix range on Apex Scientific, and don’t miss our Insights page and detailed article: Liquid Nitrogen Freezers: Essential Features, Storage Options, and Key Applications

Liquid Nitrogen Freezers – CryoMatrix

The CryoMatrix Liquid Nitrogen Freezers by Antech Scientific, available at Apex Scientific, provide reliable vapor-phase cryogenic storage for biological samples. These systems maintain stable temperatures as low as -190°C, making them ideal for labs working in life sciences and cell therapy.

Cryomatrix
Digital Controller: The digital controller ensures precise temperature monitoring and displays key data such as alarm history, enhancing cryogenic storage safety.
Cryomatrix
Internal Chamber: Spacious, insulated chamber design ensures secure, energy-efficient liquid nitrogen storage for high-volume, long-term sample preservation.
Cryomatrix

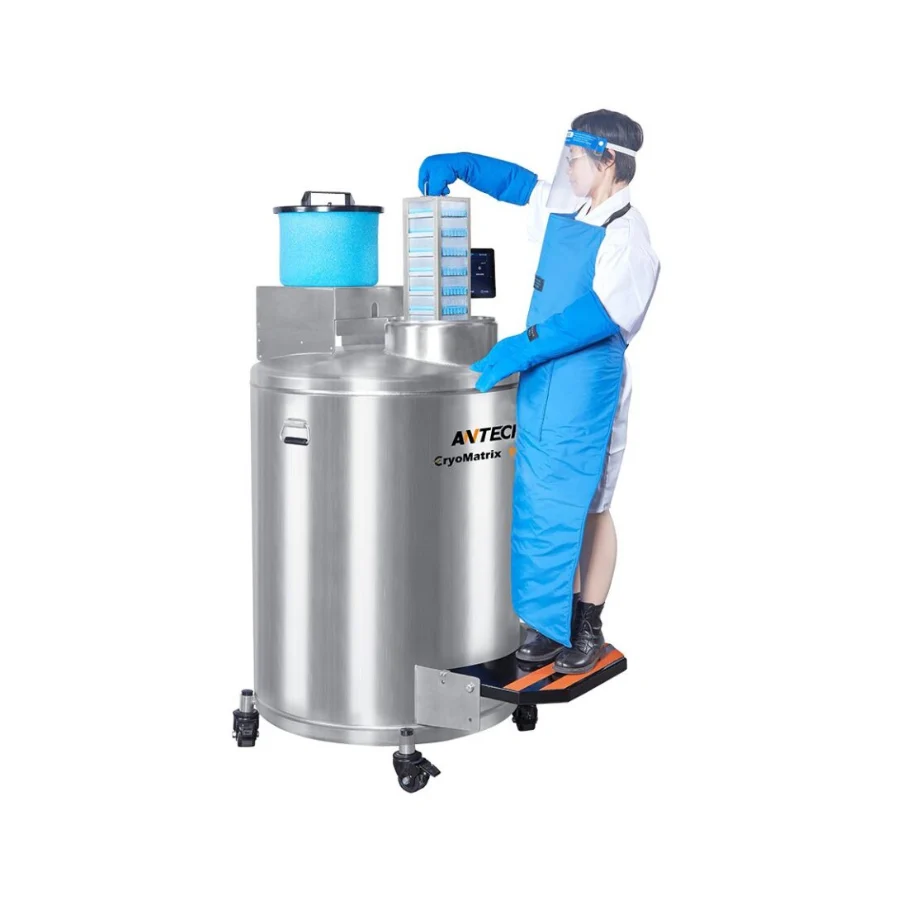

Step Platform: Provides easy and stable access to the chamber, making sample loading and retrieval safer and more efficient.

Advanced Storage Solutions

CryoMatrix freezers use an automatic liquid nitrogen filling system with real-time monitoring of both temperature and LN₂ levels. This setup ensures full protection of your valuable samples. Antech designed these systems to handle the demands of high-capacity cryogenic storage.

Moreover, the structural and control elements have been carefully optimized for durability, precision, and ease of use. As a result, researchers can trust CryoMatrix to deliver consistent performance.



Intuitive and Traceable Control

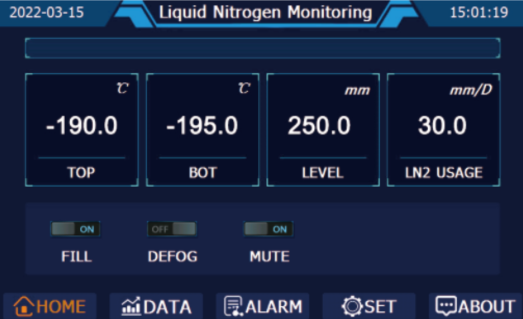

The built-in HMI touch screen displays real-time data, including temperature, LN₂ levels, and alarms. You can easily export event logs, such as fill cycles, via USB. The system also stores up to 10 years of operating data, offering full traceability and peace of mind.



Flexible Capacity and Strong Performance

CryoMatrix freezers come in sizes from 370L to 1,800L, storing between 15,600 and 94,500 2.0ml vials. These models excel in both temperature uniformity and stability, thanks to their vapor-phase design.

In addition, the units include remote monitoring, built-in alarms, and automated LN₂ refilling, which all contribute to a safer and more efficient workflow.

Accessories


Looking for more insights? Visit our Insights page and explore our article: Liquid Nitrogen Freezers: Essential Features, Storage Options, and Key Applications. The CryoMatrix series stands as essential lab equipment for South African researchers who demand reliability, safety, and performance.

LN2 capacity

ModelCryoMatrix 15KCryoMatrix 19KCryoMatrix 28KCryoMatrix 39KCryoMatrix 44KCryoMatrix 55KCryoMatrix 94K
LN2 capacity (L)37046058880089010311854
LN2 capacity at vapor platform (L)5555125133165165295
Dimensions
Neck opening (mm)320320445445465465635
Usable internal height (mm)708914590840765889906
Inner diameter (mm)75875810121012111311301467
External diameter (mm)82082010901090119011901565
Overall height (mm)1400160014001650160017001750
Door width limit (mm)85085011401140121013001615
Weight empty (kg)212264310394400495805
Weight full, vapor phase (kg)5136387501040111213192270



Functions

ModelCryoMatrix 15KCryoMatrix 19KCryoMatrix 28KCryoMatrix 39KCryoMatrix 44KCryoMatrix 55KCryoMatrix 94K
ControllerTouch screenTouch screenTouch screenTouch screenTouch screenTouch screenTouch screen
Full auto fillStandardStandardStandardStandardStandardStandardStandard
Data storage / USB portStandardStandardStandardStandardStandardStandardStandard
DefogStandardStandardStandardStandardStandardStandardStandard
Foldable stepStandardStandardStandardStandardStandardStandardStandard
Backup batteryOptionalOptionalOptionalOptionalOptionalOptionalOptional
Vacuum jacketed hoseOptionalOptionalOptionalOptionalOptionalOptionalOptional
Inventory rackOptionalOptionalOptionalOptionalOptionalOptionalOptional
Wi-Fi connection & cloud accessOptionalOptionalOptionalOptionalOptionalOptionalOptional
ModelCryoMatrix 15KCryoMatrix 19KCryoMatrix 28KCryoMatrix 39KCryoMatrix 44KCryoMatrix 55KCryoMatrix 94K
1.2 & 2ml Vials
1.2 & 2ml Vials15600195002800039200429005100094875
Number of large rack (81/100-place box)12122424323260
Number of small rack (25-place box)4416164813
2″ Boxes per rack12151014131515
5ml Vials
5ml Vials (81-place)58326804972013608155521814434020
Number of racks12122424323260
3.75″ Boxes per rack6757677
SKUDescription
2112000CryoMatrix 15K Liquid Nitrogen Freezer, 370L
2113000CryoMatrix 19K Liquid Nitrogen Freezer, 460L
2114000CryoMatrix 28K Liquid Nitrogen Freezer, 588L
2116000CryoMatrix 39K Liquid Nitrogen Freezer, 980L
2117000CryoMatrix 44K Liquid Nitrogen Freezer, 832L
2118000CryoMatrix 55K Liquid Nitrogen Freezer, 1020L
211C000CryoMatrix 94K Liquid Nitrogen Freezer, 1940L
2441000Lithium battery backup
2414000Vacuum jacketed hose, 2 meter

Rack For Cryogenic Boxes – 81/100-place, 2″ height box

ModelDescriptionPart Number
CFC-10-210-place5122A93
CFC-12-212-place5122C93
CFC-13-213-place5122D93
CFC-14-214-place5.12E96
CFC-15-215-place5122F93



Rack For Cryogenic Boxes – 25-place, 2″ height box

ModelDescriptionPart Number
CFC-10-2S10-place5121A93
CFC-12-2S12-place5121C93
CFC-13-2S13-place5121D93
CFC-14-2S14-place5.12E96
CFC-15-2S15-place5121F93



Rack For Cryogenic Boxes – 81-place 3.75″ height box

ModelDescriptionPart Number
CFC-5-35-place5123153
CFC-6-36-place5123163
CFC-8-38-place5123183



Cryogenic box (Polycarbonate)

ModelDescriptionPart Number
CBA-25-225-place box, 2″ height, for 1.5–2.0ml vials5211110
CBA-81-281-place box, 2″ height, for 1.5–2.0ml vials5211120
CBA-100-2100-place box, 2″ height, for 1.5–2.0ml vials5211130
CBA-81-381-place box, 3.75″ height, for 5ml vials5212110

Insights Article: Liquid Nitrogen Freezers: Essential Features, Storage Options, and Key Applications.

Product Enquiry Handbook: Liquid Nitrogen Freezers

Operating Manual
