Inverted Microscopes – IM-5 Series

The IM-5 Series Inverted Microscopes from Optika Microscopes offer a high-performance solution for observing living cells, microorganisms, and samples in large culture flasks. Available from Apex Scientific in South Africa, these advanced microscopes deliver exceptional image quality while supporting brightfield, darkfield, and phase contrast observation.

Engineered for demanding research environments, the IM-5 Series ensures precision, reliability, and flexibility in modern laboratories. Explore our range of inverted microscopes or visit our Insights page for expert articles and further information.

Brochure
Enquire

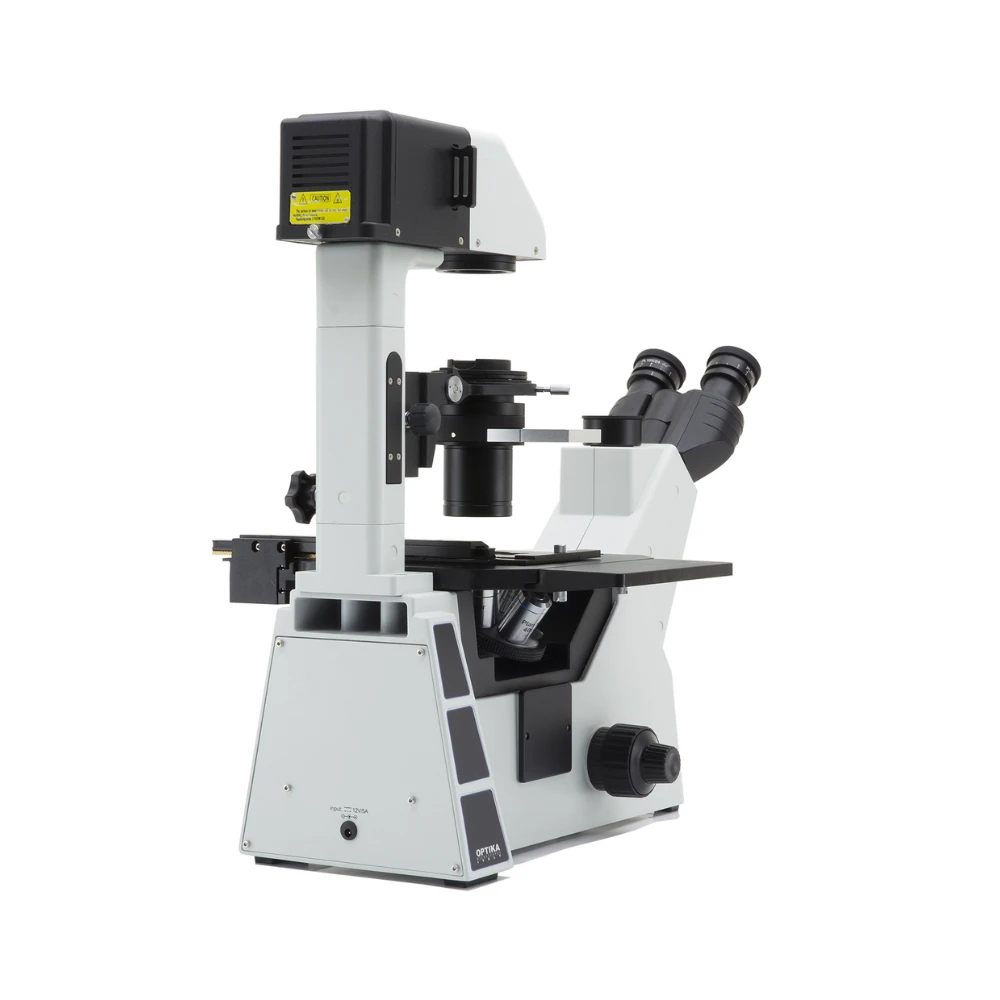

Inverted Microscope

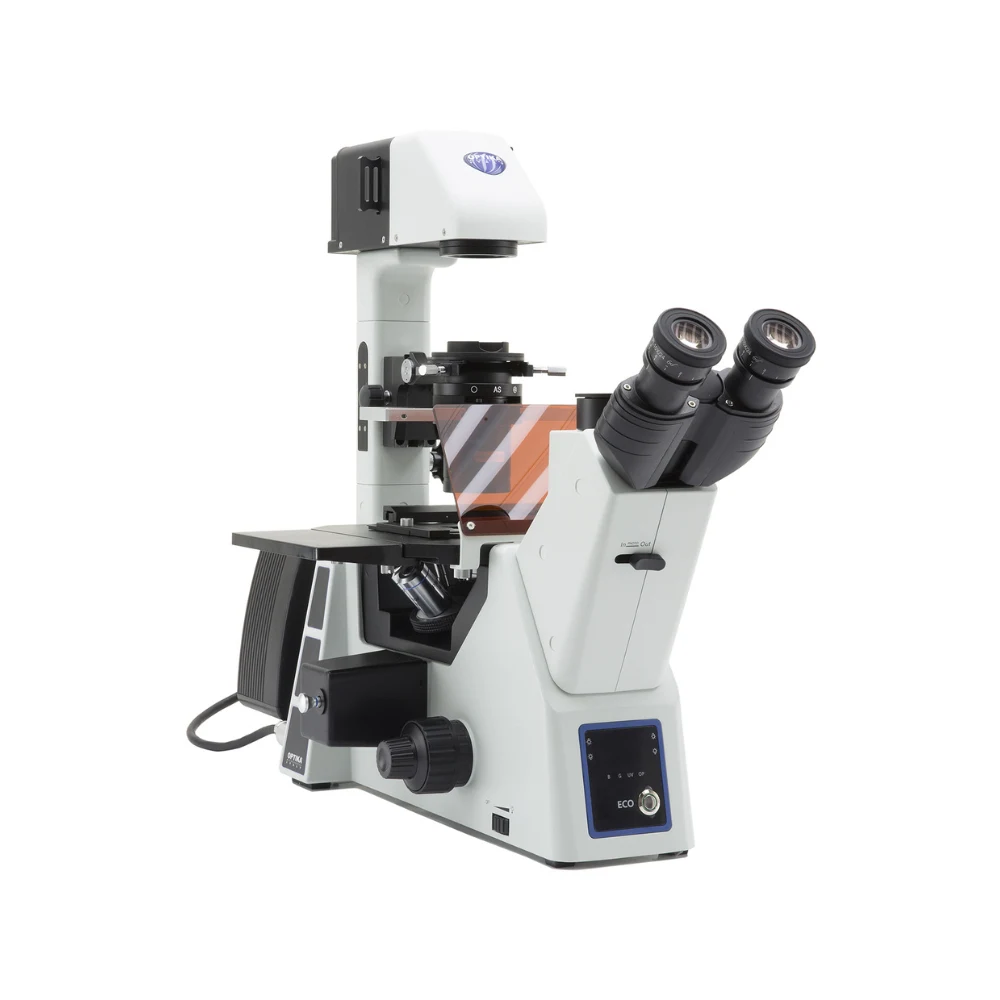

Inverted Microscope

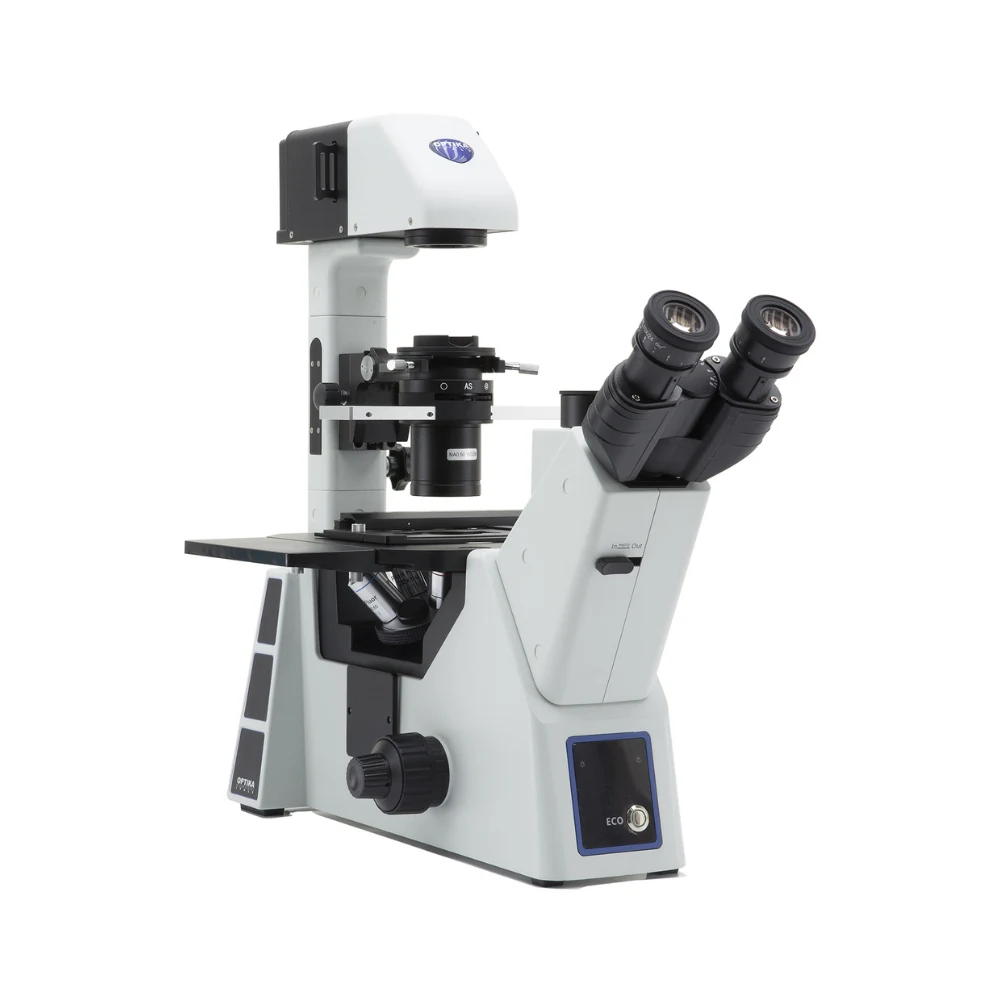

Inverted Microscope

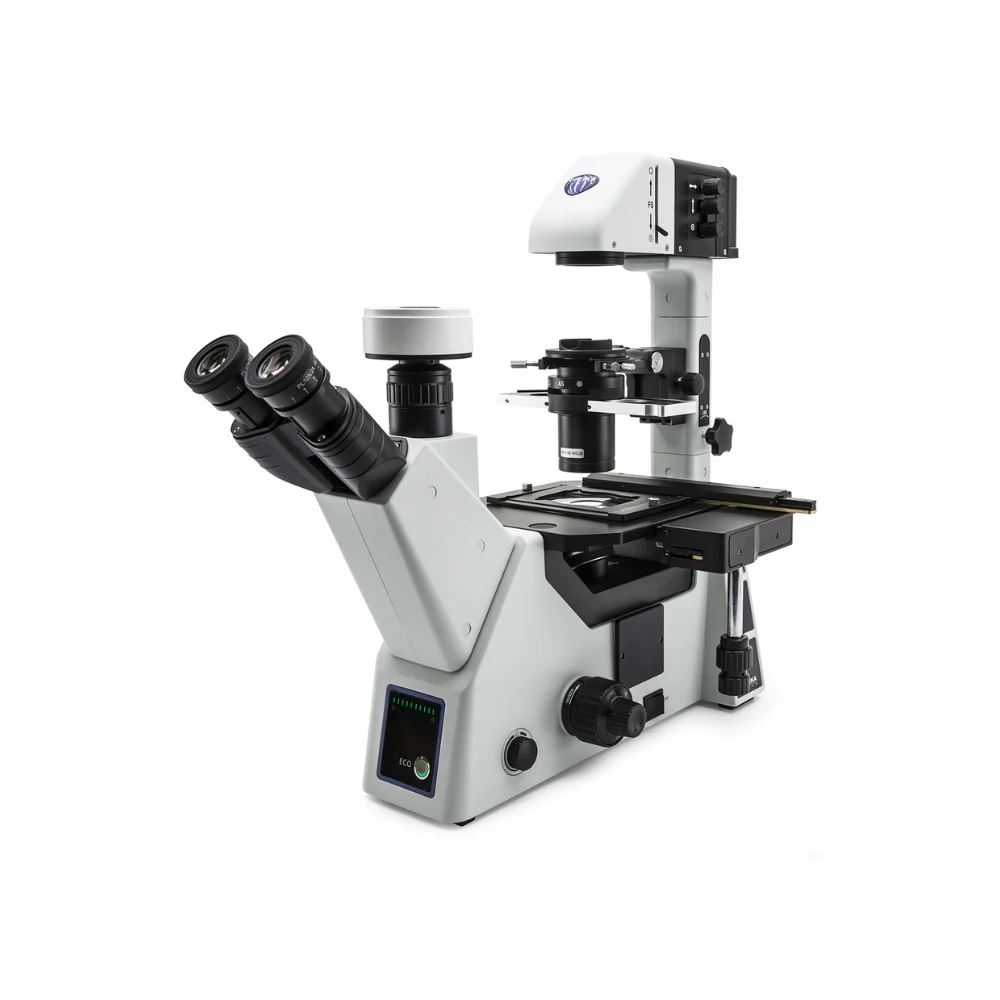

Inverted Microscope

The IM-5 Series Inverted Microscopes from Optika Microscopes are engineered for advanced research and clinical applications. Offered by Apex Scientific in South Africa, these inverted microscopes provide an exceptional 24 mm field of view—the largest in their class. This wide viewing diameter allows for more natural sample inspection and helps reduce eye strain during extended sessions.



Multiple Observation Methods Available

The IM-5 Series supports a variety of observation techniques, including brightfield, phase contrast, and darkfield. Switching between modes is quick and seamless, giving you the flexibility to examine different sample types with a single device.



Functional Köhler Condenser

This model includes a fully adjustable Köhler condenser that rotates out of the optical path to accommodate larger vessels. Whether you’re working with slides, Petri dishes, or flasks, this feature makes it easier to maintain working distance and adapt your setup. Choose from optimized objectives such as IOS LWD W-PLAN and U-PLAN F PH to ensure sharp images and field flatness up to F.N. 25.



Live Cell Imaging and Real-Time Observation

Live cell imaging is one of the key strengths of the IM-5 Series. These inverted microscopes allow you to track cellular movement and molecular events as they happen. Whether you’re recording time-lapse footage or observing processes in real-time, this system captures even subtle changes with clarity.



Precision and Environmental Control

You can pair the IM-5 with an Eppendorf Micromanipulation system to achieve fine control for cell injection or patch-clamp applications. Meanwhile, light intensity is easily adjustable from the front panel, ensuring consistent experimental conditions. To promote energy efficiency, an ECO mode automatically powers down the unit after 20 minutes of inactivity.

Accessories

microscope slide
M-005 - Micrometric slide, 26x76mm. Provides precise measurement capabilities, ensuring accurate calibration and enhanced detail analysis under microscopes.
Microscope cleaning kit
15104 - Cleaning kit. Ensures optimal lens clarity and performance by safely removing dust, smudges, and debris from optics.
Microscope Dust Cover
DC-002 - Plastic dust cover. Protects the microscope from dust and contaminants, ensuring long-term durability and optimal performance.
M-793.1: Holder for Petri dia. 38mm (M-793.2 needed). Securely holds 38mm Petri dishes, ensuring stable positioning for precise microscopy observations.
M-793.2: Holder for Terasaki and petri dia. 65mm. Securely holds Terasaki plates and 65mm Petri dishes, ensuring stable positioning for accurate observations.
Microscope C-Mount
M-699: Universal adapter for C-Mount projection lens (trino). Enables secure attachment of C-Mount projection lenses to trinocular microscopes, ensuring stable and clear imaging.
M-793.7: Load bearing side extension for IM-3 series. Provides additional support for heavy samples, ensuring stability and balance for IM-3 series microscopes.
M-880: PL10x/24 eyepiece, high eyepoint, with dioptric adjustment & rubber cup (retractable).
Microscope M-620.3: 1x focusable C-Mount adapter
M-620.3: 1x focusable C-Mount adapter (biological microscopes). Provides a 1x magnification interface with adjustable focus for precise image capture on biological microscopes.
Microscope Projection Lens
M-118: 0.75x C-Mount projection lens. Reduces magnification while maintaining image clarity, providing a balanced field of view for digital imaging.
view more

To learn more about selecting the best microscope for your lab, read our article, Choosing the Right Microscope for Your Laboratory: A Detailed Guide. You can also explore our Insights page for more technical resources and browse our full product range to find the right solution for your research.

Brightfield & Phase Contrast Microscope

IM-5 – Phase contrast, brightfield and darkfield (dry) trinocular inverted microscope ideal for laboratory requirements (especially cell culture), with freely configurable lenses according to customer’s preferences, FN 24 high eyepoint, infinity corrected optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 8 W X-LED8. Sturdy and incredibly reliable, it is equipped with all the main controls in ergonomic position and with long lasting LED illumination to provide over 20 years of use.



LED Fluorescence Microscope

IM-5FLD – Phase contrast, brightfield and darkfield (dry) LED fluorescence trinocular inverted microscope, with freely configurable lenses according to customer’s preferences, FN 24 high eyepoint, infinity corrected optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 8 W X-LED8. The 4-position epi-fluorescence attachment is powered by extremely powerful 5 W LEDs fluorescence illuminator and combined with blue, green and UV excitation filters for the visualization. LED fluorescence ensures unparalleled convenience eliminating warm-up/cool-down times and all the inconveniences related lamp replacement and adjustment. Sturdy and incredibly reliable, it is equipped with all the main controls in ergonomic position and with long lasting, efficient LED illumination to provide over 20 years of use.



Metallurgical Microscope

IM-5MET – Industrial and materials science inverted microscope especially designed for opaque specimens (including metals microstructure investigation and studies such as grain size, grain boundaries, phases, transformation, inclusions, and non-metals, as well as sample preparation and treatment) in metallography labs. Freely configurable lenses according to customer’s preferences, FN 24 high eyepoint, infinity corrected optical system, coaxial focusing, mechanical stage, and epi-illumination attachment powered by halogen 12 V/100 W with brightness control. Sturdy and incredibly reliable, it is equipped with all the main controls in ergonomic position and with long lasting, efficient LED illumination to provide over 20 years of use.
