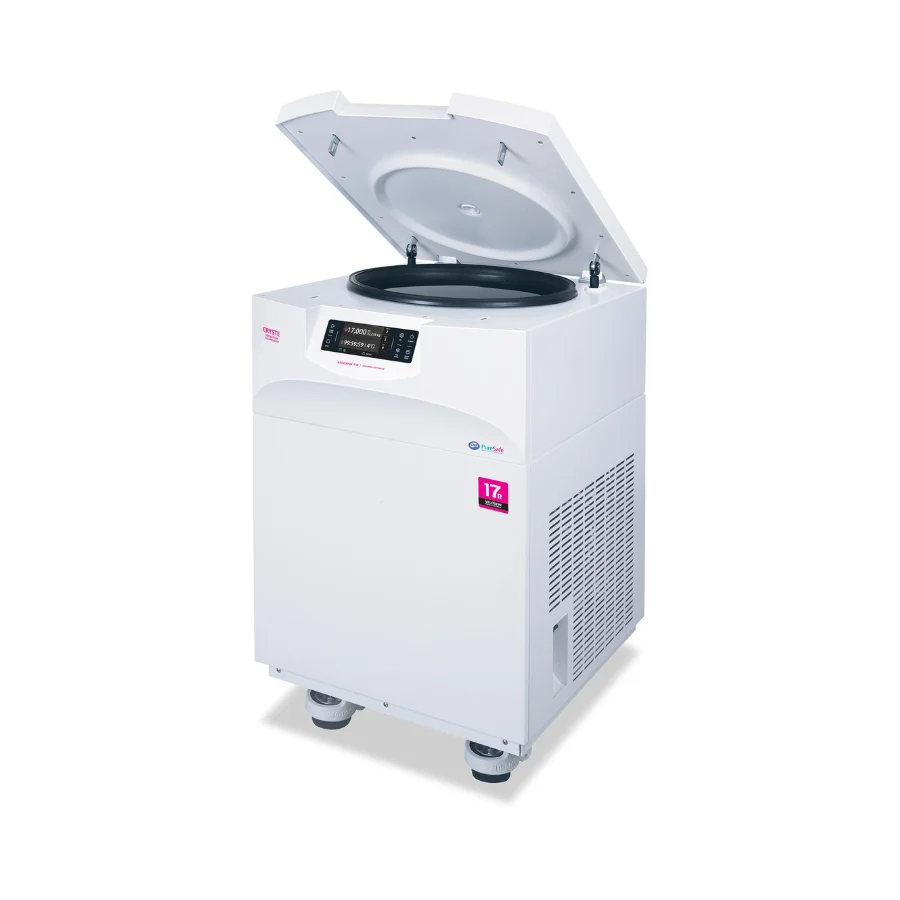

High-Speed Centrifuge - Velospin 17R

The Velospin 17R – High-Speed Centrifuge from Cryste is designed to meet the rigorous demands of modern laboratories. This versatile centrifuge provides exceptional performance for a wide range of applications, making it a vital addition to any scientific setting.

Tube Coverage

The Velospin 17R accommodates various tube sizes, ranging from 0.2 ml to 500 ml. This extensive tube coverage allows for flexibility in sample handling, catering to the diverse needs of laboratory professionals.

Energy Efficiency

In line with ESG values, the Velospin 17R incorporates energy-saving features. The Standby Off function and Eco Shut-off setting for refrigeration help to minimize unnecessary energy consumption, promoting a more sustainable laboratory environment.

Wide Range of Applications

Equipped with multiple rotor options, the Velospin 17R is versatile enough to support various laboratory applications. This adaptability ensures it meets the needs of different users effectively.

User-Friendly Control

The CRYSTE FLIP Touch Controller features a 4.3″ full-color LCD that simplifies parameter adjustments. With all set points visible at a glance, users can easily configure settings. The touch pad lock prevents misuse during operation, enhancing safety.

Biocontainment Features

For laboratories handling biohazardous materials, the optional Biocontainment Accessory Package includes certified sealing buckets, compliant with IEC61010-2-020:2016 Annex AA. This ensures safe handling and containment of sensitive samples.

Reliable Temperature Maintenance

The Velospin 17R utilizes advanced refrigeration technology to maintain stable temperatures, essential for temperature-sensitive samples. Its internal design minimizes frictional heat, guaranteeing accurate testing conditions.

Enhanced Safety

Safety is paramount with features like the motor shaft safety hub to prevent rotor slippage and a secure door locking system with interlock functionality, ensuring safe operation during high-speed runs.

Silent Operation

Thanks to a well-balanced motor, the Velospin 17R operates with minimal vibration, resulting in a remarkably silent experience—ideal for focused laboratory environments.

Continuous Use Capability

Designed for durability, this centrifuge supports multiple operating cycles, ensuring it can handle the demands of busy labs.

For expert guidance and more options, explore our article, The Ultimate Guide to Finding the Right Centrifuge for Your Lab, available on the Insights page at Apex Scientific. There, you’ll find informative articles that help you understand our full range of products and their applications in laboratory settings.

Max. RPM	17,000RPM (Angle Rotor)	4,000RPM (Swing Rotor)
Max. RCF	32,278 xg	3,265 xg
Max. Capacity	500ml x 6	250ml x 4
Accel / Decel phase	0 ~ 9 (10set)
Set Temp.	-10℃ ~ +40℃ (1℃ increments)
Refrigeration System	Non-CFC
Noise Level	≤60dB
Set Time	99-hour 59 min 59sec or continuous
Time Count	At set speed or from starting
Program	100 memory
Rotor ID	Automatic Recognition
Display	4.3” LCD Touch Screen
Display message on screen	RPM, RCF, Time, Door open/close, Temp, ACC/DEC, Rotor ID, Program, Comp. On/Off, Key Lock
RPM Range	400 to 17,000 RPM
Available Rotor Quantity	12
Power Supply	230V ± 10%, 50-60Hz, 1Phase
Power Consumption	2,8 KW
Dimension (W x D x H)	564 x 673 x 866 mm (H: 1475 mm with open lid)
Weight (without rotor)	168kg

Angle Rotor

Rotor
Rotor	Fixed Angle Rotor ∠ 45′ 48 x 0.2ml Radius(mm) : 83.5		Fixed Angle Rotor ∠ 45′ 30 x 1.5ml Radius(mm) : 94.8			Fixed Angle Rotor ∠ 45′ 48 x 1.5ml Radius(mm) : 94.8
Item	A480.2H		A301.5H			A481.5H
Tube
Volume (ml)	0.2	0.2ml Strips	0.2	0.5	1.5 / 2.0	0.2	0.5	1.5 / 2.0
Adaptor / tube rack
Item			F1.5A-0.2	F1.5A-0.5		F1.5A-0.2	F1.5A-0.5
Number per rack / rotor	48	6	30	30	30	48	48	48
Adaptor bore (mm)	6.5	6.5	6.5	8	11.1	6.5	8	11.1
Max. height for use(mm)	–	–	44	50	61	In 51 Out 44	In 62 Out 54	In 70 Out 61
RPM	12000	12000	17000	17	17000	13000	13000	13000
Radius (mm)	83.5	83.5	80.3	86.7	94.8	In70.3 Out80.3	In76.7 Out86.7	In84.8 Out94.8
RCF	13443	13443	25945	28013	30630	In 13,283 Out 15,172	In 14,492 Out 16,381	In 16,022 Out 17,912

Rotor
Rotor	Fixed Angle Rotor ∠ 28′ 12 x 15ml Radius(mm) : 97.1	Fixed Angle Rotor ∠ 25′ 12 x 15ml Conical Radius(mm) : 100.9	Fixed Angle Rotor ∠ 30′ 6 x 50ml Radius(mm) : 99.9		Fixed Angle Rotor ∠ 25′ 6 X 50ml Conical Radius(mm) : 95.7
Item	A1215H	A1215HC	A650H		A650HC
Tube
Volume (ml)	15(16)	15 Conical	15 Conical	50	15 Conical	50 Conical
Adaptor / tube rack
Item			F50A-15C		F50CA-15C
Number per rack / rotor	12	12	6	6	6	6
Adaptor bore (mm)	18	17	17	29	17	30
Max. height for use(mm)	117	129	122	120	124	121
RPM	17000	15000	17000	17000	15000	15000
Radius (mm)	97.1	100.9	94.3	99.9	91.3	95.7
RCF	31373	25381	30469	30278	22967	24073

Rotor
Rotor	Fixed Angle Rotor ∠ 30′ 8 x 50ml Radius(mm) : 103.4		Fixed Angle Rotor ∠ 25′ 6 x 85ml Radius(mm) : 99.8				Fixed Angle Rotor ∠ 25′ 6 x 250ml Radius(mm) : 138.4
Item	A850H		A685H				A6250H
Tube
Volume (ml)	15 Conical	50	15 Conical	50 Conical	50	85	250
Adaptor / tube rack
Item	F50A-15C		F85A-15C	F85A-50C	F85A-50
Number per rack / rotor	8	8	6	6	6	6	6
Adaptor bore (mm)	17	29	17	30	29	39	62
Max. height for use(mm)	123	120	123	122	118	118	126
RPM	15000	15000	15000	15000	15000	15000	10000
Radius (mm)	97.8	103.4	90.7	94.8	95.3	99.8	138.4
RCF	24602	26010	22816	23847	23973	25105	15473

Rotor
Rotor	Fixed Angle Rotor ∠25′ 6 x 500ml Radius(mm) : 158
Item	A6500H
Tube
Volume (ml)	500
Adaptor / tube rack
Item
Number per rack / rotor	6
Adaptor bore (mm)	70
Max. height for use(mm)	169
RPM	8000
Radius (mm)	158
RCF	11305

Swing Out Rotor

S4250HE	EB250	EBS250								BW250

		Tested by TUV NORD
	S250ET -3-12	S250ET -5-12	S250ET -10-12	S250ET -15-12	S250ET -15C-9	S250ET -50-4	S250ET -50C-3	S250ET -85-2	S250EA -250

Swing Out Rotor Max. RPM : 4,000 Radius(mm) : 182.5 Max. RCF : 3,265
Volume (ml)	3	5	10	15	15 Conical	50	50 Conical	85	250	MTP	DWT
Number per rack / rotor	12/48	12/48	12/48	12/48	9/36	04/16	03/12	02/08	01/04	04/16	01/04
Adaptor bore (mm)	13.2	13.2	16	17.2	17	29.5	29.5	38.5	62.5	–	–
Max. height for use(mm)	124	124	124	124	127	124	127	124	138	–	–
RPM	4000	4000	4000	4000	4000	4000	4000	4000	4000	4000	4000
Radius (mm)	177.5	177.5	177.5	177.5	180.7	177.5	180.5	177.5	180.5	153.5	153.5
RCF	3175	3175	3175	3175	3232	3175	3229	3175	3229	2746	2746

SKU	Description
CS-C-H17R-MB	VELOSPIN 17R – VELOSPIN 17R, refrigerated, without rotor, AC 230V ±10% 50/60Hz, 1Phase, EU Standard Plug

Angle Rotor

SKU	Description
CS-C-H-10010	A480.2H – 0.2ml x 48 fixed angle rotor for PCR tubes (x 6 PCR strips) (Max 12,000RPM)
CS-C-H-10020	A301.5H – 1.5-2.0ml x 30 fixed angle rotor (Max 22,000RPM in VELOSPIN 22R, 17,000RPM in VELOSPIN 17R)
CS-C-H-10030	A481.5H – 1.5-2.0ml x 48 fixed angle rotor (Max 13,000RPM)
CS-C-H-10040	A1215H – 15ml x 12 fixed angle rotor (Max 20,000RPM in VELOSPIN 22R, 17,000RPM in VELOSPIN 17R)
CS-C-H-10051	A1215HC – 15ml x 12 fixed angle rotor for conical tubes (≤ 20,000RPM in V22R, 15,000RPM in V17R)
CS-C-H-10060	A650H – 50ml x 6 fixed angle rotor (Max 22,000RPM in VELOSPIN 22R, 17,000RPM in VELOSPIN 17R)
CS-C-H-10071	A650HC – 50ml x 6 fixed angle rotor for conical tubes (≤ 17,000RPM in V22R, 15,000RPM in V17R)
CS-C-H-10080	A850H – 50ml x 8 fixed angle rotor (Max 20,000RPM in VELOSPIN 22R, 15,000RPM in VELOSPIN 17R)
CS-C-H-10090	A685H – 85ml x 6 fixed angle rotor (Max 20,000RPM in VELOSPIN 22R, 15,000RPM in VELOSPIN 17R)
CS-C-H-10100	A6250H – 250ml x 6 fixed angle rotor (Max 12,000RPM in VELOSPIN 22R, 10,000RPM in VELOSPIN 17R)
CS-C-H-10110	A6500H – 500ml x 6 fixed angle rotor (Max 10,000RPM in VELOSPIN 22R, 8,000RPM in VELOSPIN 17R)

Swing Out Rotor

SKU	Description
CS-C-H-20010	S4250HE – 250ml x 4-wing rotor for rectangular/micro plate buckets (Max. 4,000RPM)
