EZ Chem Pilot Plant Reactor

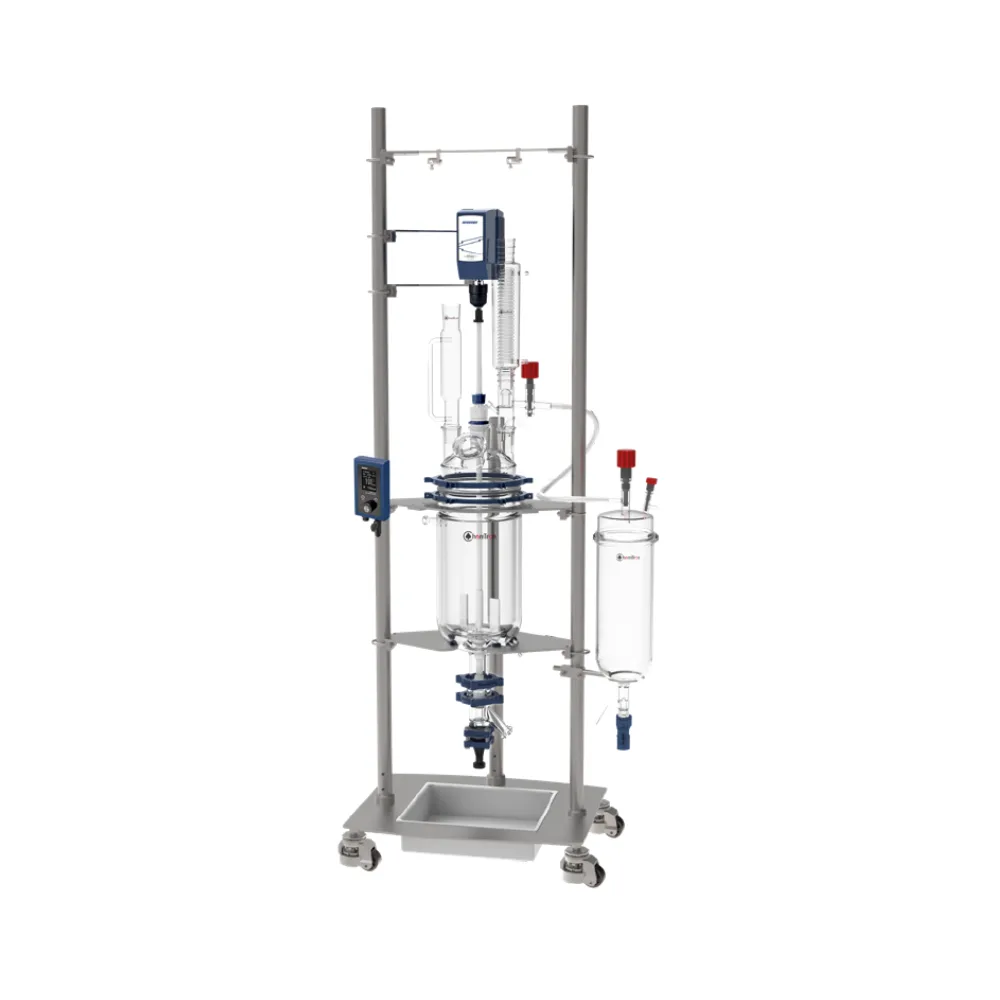

EZ Chem Pilot Plant Reactor by Wiggens is specifically designed to enhance research capabilities in South Africa. This versatile reactor is complete with a support stand, overhead stirrer, and glassware, providing a comprehensive solution for various experimental needs. Additionally, optional features such as multi-channel regulating valves and distillation units offer further customization.

Unique Design for Ease of Use

The innovative design of the EZ Chem Pilot Plant Reactor features a smart supporting structure and a clamping system that allows for quick and easy installation and removal of glassware. This functionality ensures that researchers can focus on their experiments without the hassle of cumbersome setup processes.

Customizable Options

When selecting your EZ Chem Pilot Plant Reactor, consider the following:

Base System: Choose according to your desired working volume, which ranges from 20L to 100L.
Motor Selection: Pick a motor that best suits your specific application needs.
Components and Accessories: Customize with additional components to enhance your setup.

Models Available

The EZ Chem Reactor is available in several models to accommodate various research requirements:

WRS-1503-01: Standard model with essential features.
WRS-1503-02: 20L complete standard pilot reactor.
WRS-1503-03: 30L complete standard pilot reactor.
WRS-1503-04: 50L complete standard pilot reactor.
WRS-1503-05: Another 50L complete standard pilot reactor.
WRS-1503-06: 100L complete standard pilot reactor.

Accessories

Looking for more options or related products? Explore our article, Unlock the Potential of Laboratory Reactors for Your Research, on the Insights page at Apex Scientific.

Model	WRS-1503-01	WRS-1503-02	WRS-1503-03	WRS-1503-04	WRS-1503-05	WRS-1503-06
Reaction volume	10L	20L	30L	50L	50L	100L
Flange of vessel	DN200	DN300	DN300	DN300	DN400	DN400
Bore diameter of bottom valve	0-25mm	0-25mm	0-25mm	0-25mm	0-25mm	0-25mm
Reactor lid	DN200, 1×45/40(CN), 3×45/40(SN), 1×DN60(SN-45° )	DN300, 1×45/40(CN), 4×45/40(SN), 2×29/32(SN), 1×DN100(SN-45° )	DN300, 1×45/40(CN), 4×45/40(SN), 2×29/32(SN), 1×DN100(SN-45° )	DN300, 1×45/40(CN), 4×45/40(SN), 2×29/32(SN), 1×DN100(SN-45° )	DN400, 1×45/40(CN), 4×45/40(SN), 2×29/32(SN), 1×DN100(SN-45° )	DN400, 1×45/40(CN), 4×45/40(SN), 2×29/32(SN), 1×DN100(SN-45° )
Total openings on the lid	5	8	8	8	8	8
Material of reaction vessel and lid	High quality borosilicate glass	High quality borosilicate glass	High quality borosilicate glass	High quality borosilicate glass	High quality borosilicate glass	High quality borosilicate glass
Temperature range	-60~200℃	-60~200℃	-60~200℃	-60~200℃	-60~200℃	-60~200℃
Vessel pressure	Atmospheric pressure and vacuum	Atmospheric pressure and vacuum	Atmospheric pressure and vacuum	Atmospheric pressure and vacuum	Atmospheric pressure and vacuum	Atmospheric pressure and vacuum
Jacket pressure	up to 0.5bar	up to 0.5bar	up to 0.5bar	up to 0.5bar	up to 0.5bar	up to 0.5bar
Material of wet part	Borosilicate glass / PTFE / PFA	Borosilicate glass / PTFE / PFA	Borosilicate glass / PTFE / PFA	Borosilicate glass / PTFE / PFA	Borosilicate glass / PTFE / PFA	Borosilicate glass / PTFE / PFA
Inlet and outlet of jacket	DN15	DN25	DN25	DN25	DN25	DN25
Stirring speed	Available at 500 RPM for long-term operation, 800 RPM for short-term operation, if high-speed mixing applications are required, please consult your Wiggens	Available at 500 RPM for long-term operation, 800 RPM for short-term operation, if high-speed mixing applications are required, please consult your Wiggens	Available at 500 RPM for long-term operation, 800 RPM for short-term operation, if high-speed mixing applications are required, please consult your Wiggens	Available at 500 RPM for long-term operation, 800 RPM for short-term operation, if high-speed mixing applications are required, please consult your Wiggens	Available at 500 RPM for long-term operation, 800 RPM for short-term operation, if high-speed mixing applications are required, please consult your Wiggens	Available at 500 RPM for long-term operation, 800 RPM for short-term operation, if high-speed mixing applications are required, please consult your Wiggens
Diameter/length of stirring Rod	Ø16mm / 1000mm	Ø16mm / 1000mm	Ø16mm / 1000mm	Ø28mm / 1600mm	Ø28mm / 1320mm	Ø28mm / 1600mm
Blade diameter	Anchor style stir paddle	Anchor style stir paddle	Anchor style stir paddle	Anchor style stir paddle	Anchor style stir paddle	Anchor style stir paddle
Length of condenser	300mm	300mm	300mm	400mm	400mm	400mm
Volume of collection flask	5L	5L	5L	10L	10L	20L
Volume of liquid funnel	1L	1L	1L	5L	5L	5L
Temperature sensor	Ø6mm×600mm	Ø6mm×600mm	Ø6mm×900mm	Ø6mm×1200mm	Ø6mm×900mm	Ø6mm×1200mm
Stand Dimensions ( W x D x H)	Approx. 720x 600x 2080mm	Approx. 800x 660x 2380mm	Approx. 800x 660x 2650mm	Approx. 800x 660x 2650mm	Approx. 890x 716x 2650mm	Approx. 890x 716x 2980mm

Part number	Description
WRS-1503-011	10L Process System – Complete with reaction system, Stand, High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-011M	10L Process System – Complete with reaction system, Stand, Manifold / Drain System and High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-012	10L Process System with distillation unit – Complete with reaction system, Stand, 5L Distillation unit, High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-012M	10L Process System with distillation unit – Complete with reaction system, Stand, 5L Distillation unit, Manifold / Drain System and High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-021	20L Process System – Complete with reaction system, Stand, High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-021M	20L Process System – Complete with reaction system, Stand, Manifold / Drain System and High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-022	20L Process System with distillation unit – Complete with reaction system, Stand, 5L Distillation unit, High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-022M	20L Process System with distillation unit – Complete with reaction system, Stand, 5L Distillation unit, Manifold / Drain System and High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-031	30L Process System – Complete with reaction system, Stand, High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-031M	30L Process System – Complete with reaction system, Stand, Manifold / Drain System and High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-032	30L Process System with distillation unit – Complete with reaction system, Stand, 5L Distillation unit, High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-032M	30L Process System with distillation unit – Complete with reaction system, Stand, 5L Distillation unit, Manifold / Drain System and High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-041	50L Process System – Complete with reaction system, Stand, High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-041M	50L Process System – Complete with reaction system, Stand, Manifold / Drain System and High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-042	50L Process System with distillation unit – Complete with reaction system, Stand, 5L Distillation unit, High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-042M	50L Process System with distillation unit – Complete with reaction system, Stand, 5L Distillation unit, Manifold / Drain System and High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-051	50L Process System – Complete with reaction system, Stand, High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-051M	50L Process System – Complete with reaction system, Stand, Manifold / Drain System and High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-052	50L Process System with distillation unit – Complete with reaction system, Stand, 5L Distillation unit, High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-052M	50L Process System with distillation unit – Complete with reaction system, Stand, 5L Distillation unit, Manifold / Drain System and High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-061	100L Process System – Complete with reaction system, Stand, High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-061M	100L Process System – Complete with reaction system, Stand, Manifold / Drain System and High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-062	100L Process System with distillation unit – Complete with reaction system, Stand, 5L Distillation unit, High Torque Overhead Stirrer WOHS-400 ProF
WRS-1503-062M	100L Process System with distillation unit – Complete with reaction system, Stand, 5L Distillation unit, Manifold / Drain System and High Torque Overhead Stirrer WOHS-400 ProF

Model	Description
CRS7550	Cylindrical Flask with vacuum jacket, with thermal jacket and bottom valve
CRS7575	Cylindrical Flask with vacuum jacket, with thermal jacket and bottom valve
CRS-0839-47	Cylindrical Flask with vacuum jacket, with thermal jacket and bottom valve
SQEG069269	Heatable reaction vessels with thermal jacket and bottom outlet
4200	Thermal jacket connection
SQSO038987	Thermal jacket connection
CRS-4153B-S	Bottom valve
JRS-2904-12	Lid for EZChem series
SQEG073335	Lid for PlusChem series
JRS-6443-02	Lid for bench-top glass reactor
JRS-12858-10/15	Lid for reaction vessels，PTFE，DN60
JRS-12860-12/25	Lid for reaction vessels，PTFE，DN100
JRS-12862-16	Lid for reaction vessels，PTFE，DN150
SQEG069269	Heat able reaction vessels with thermal jacket and bottom outlet
JRS-12866-05	PTFE Inserts for PTFE reaction vessel lids
JRS-12867-04	PTFE Plug
JRS-12869-08	Screw thread compression fittings
JRS-12871-03	Screw thread compression fittings
WHOS-15 Pro	Digital stirring motor
WOHS-200 Pro F	Remotely controllable high torque / high speed stirrer
JRS-8126-05N	Coupling
5-104-7	Stirrer bearing PTFE
JRS-8067-105	Stirrer bearing Glass
JRS-8127-28	Collar w/PTFE Gasket
JRS-5028-31	#7 Temperature sensor adapter
JRS-7643-08	PTFE joint sleeves
JRS-7598-24	Joint clips standard taper joint, acetal plastic
5-250-8-2	Stirring shaft and impeller
JRS-2803-02	Liquid funnel
JRS-2103-01	Glass stopper
JRS-2020-01	Offset adapter
JRS-2501-09	Condenser with jacket and cooling coil, high-efficiency
JRS-2506-13	Condenser with jacket and cooling coil, high-efficiency
MLFM069215	pH measurement
JRS-11065-16	Distillation Reflux / Divider Head, Collection flask
JRS-2620-02	Distillation Reflux / Divider Head, Collection flask
JRS-2002-17	Adapter, bushing
8981015	Temperature sensor
JRS-12194-02	Multi channel regulating valve
CRS-2602	Smart supporting structure for All-in-one series
CRS-2605	Smart supporting structure for parallel Reactor
CRS-2602-13	Smart supporting structure
