CO2 Incubator with Shaker

The Wiggens CO2 Incubator with Built-In Shaker offers precise control of CO2, temperature, and humidity, making it ideal for sensitive cell culture applications. This advanced incubator, available in sizes ranging from 180 to 850 litres, features an integrated shaker powered by a low-noise, low-vibration brushless DC motor.

Designed for consistent performance and minimal disruption to cultures, it supports demanding experimental workflows. Discover innovative laboratory equipment with Apex Scientific and enhance your research capabilities. For more expert insights and application guidance, please visit our Insights page.

The CO2 Incubator with Shaker by Wiggens is a reliable and versatile laboratory solution designed for advanced cell culture applications in South Africa. Available through Apex Scientific, this incubator combines high-precision control with an integrated shaker system, offering consistent performance for demanding scientific environments.



Flexible Shaking Platform and Plate Compatibility

A key feature of this CO2 Incubator with Shaker is its removable shaker platform. It accommodates a range of culture vessels, including Erlenmeyer flasks (100 mL to 1000 mL), test tube clamps, and 96-well plates. When needed, the shaker can be removed to convert the unit into a static incubator. The external control panel allows independent shaker operation, with real-time speed and temperature data visible on the LED display.



Reliable Temperature and CO₂ Control

Precise environmental conditions are maintained with a dual-beam infrared CO2 sensor and six-sided heating. This combination delivers exceptional temperature stability and CO2 accuracy. The orbital shakers, made from stainless steel, resist contamination and are easy to clean. A sealed BLDC motor ensures quiet operation, even in high-humidity conditions, supporting long-term cell suspension cultures.



Optimized for Suspension Cell Culture

Ideal for eukaryotic cells like CHO, HEK, and HeLa, each shaker supports suspension cultures with high reliability. A pull-out shaker platform simplifies flask handling, while sticky mats and optional holders improve workflow. The incubator uses PID temperature control combined with forced air and natural convection for rapid heat recovery and consistent distribution.



Humidity Control and Laboratory Safety

The deep humidity tray helps maintain a high-humidity environment. Split inner glass doors reduce heat and CO2 loss during access. A visible LED display shows the water level in the tray. For enhanced safety, the auto-restart function resumes shaker operation after door openings or power failures. A UV lamp, placed near the fan, sterilizes internal air during incubation.



Premium Build and Sterility Assurance

The internal chamber is constructed from SUS304 stainless steel for rust resistance and GMP compliance. An antibacterial HEPA filter maintains sterile conditions, while removable shelves accommodate larger culture vessels, including 5 L and 10 L flasks. Together, these features make the CO2 Incubator with Shaker a trusted solution for laboratories across South Africa.

Accessories


Looking for more options? Visit our CO2 Incubators category page to explore our full product range. For guidance on selecting the right incubator, read our article, Optimize Your Cell Culture with the Right CO₂ Incubator from Apex Scientific. You can also visit our Insights page for more in-depth resources and product applications.

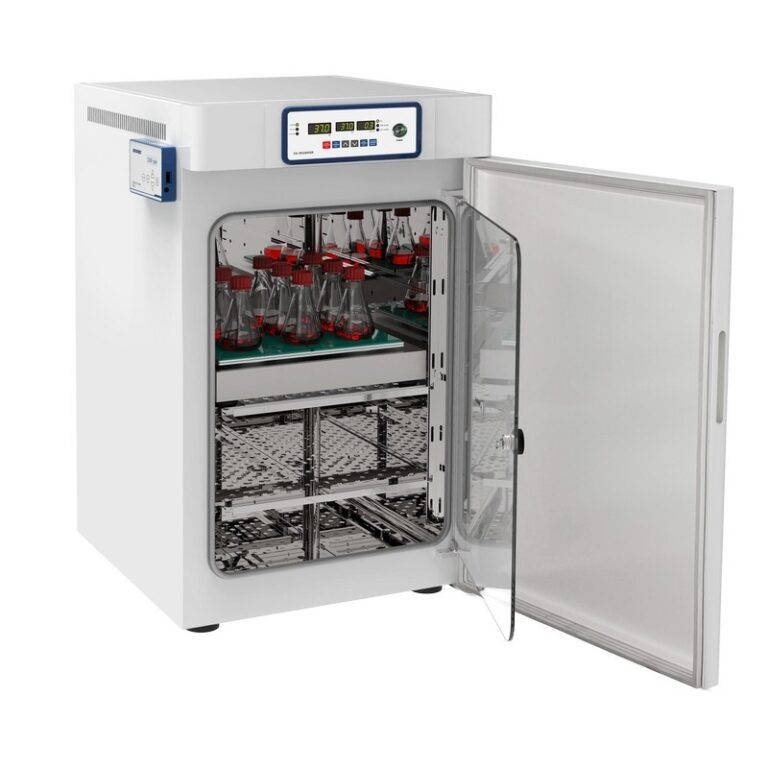

ModelWCI-180S
DisplayLED
Capacity [L]180
Platform Size (W x L mm)300×330
TemperatureRange [℃ ]Rt+5-60
Display Precision [℃ ]±0.1(37℃)
Resolution [℃ ]0.1
Speed controlSpeed [rpm]30-300
Accuracy [rpm]±1
Division [rpm]1
ControlPID microprocessor
Humidity≥70% (at 37℃)
CO2Accuracy±0.1% (5% / 37℃ )
Resolution0.1%
SensorDual infrared CO2 sensor
ControlMicroprocessor
TimerContinuous or up to 99h 59min
Jacket styleAir six-side heating)
Interior material304 stainless steel
ShelfOne for shaker

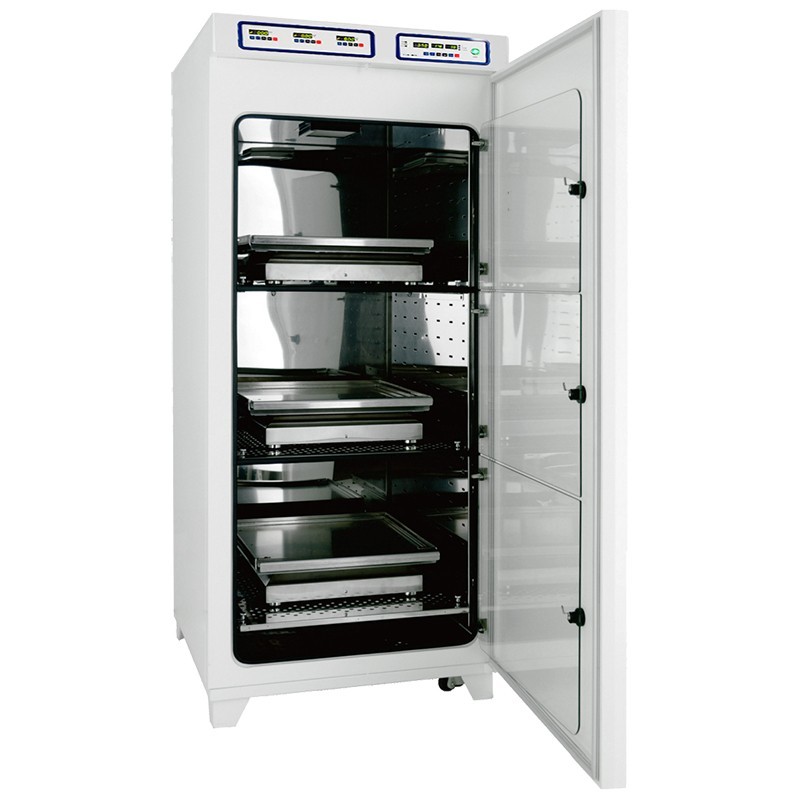

ModelWCI-650CHWCI-850CH
DisplayLEDLED
Chamber volume [L]650L850L
Temp.Range [℃ ]Ambient +5-60Ambient +5-60
Accuracy [℃ ]±1 (at 37℃)±1 (at 37℃)
ShakerShaking motionOrbitalOrbital
Speed range [rpm]30-30030-300
Speed accuracy [rpm]±1±1
Speed increment [rpm]11
Orbit diameter [mm]2525
Humidity≥70% (at 37℃)≥70% (at 37℃)
CO2Range0-20%0-20%
Accuracy±0.3% (at 5% at 37℃)±0.3% (at 5% at 37℃)
SensorIR CO2 sensorIR CO2 sensor
Inlet pressure [bar]0.7-10.7-1
TimeTime rangeContinuous or up to 99h59minContinuous or up to 99h59min
Time accuracy±1%±1%
Time increment [min]11
Jacket typeAir jacket type (6-side heating)Air jacket type (6-side heating)
FilterAnti-Bacterial HEPA filterAnti-Bacterial HEPA filter
SterilizationU.V 4Wx1eaU.V 4Wx1ea
Shelves3ea3ea
Dimension (WxDxH) [mm]Chamber dimensions700x650x1430mm700x800x1530mm
Platform size520x520mm520x520mm
Each compartment dimensionCompartment 1 (Bottom): 700x650x430 Compartment 2, 3 (Middle,Top): 700x650x380700x800x410
Overall dimensions820x780x1740820x920x1840
Weight [kg]323393
Power220V,50/60Hz220V,50/60Hz
Order No.W6027650W6027850
SKUDescription
W6027180Wiggens WCI-180S – CO2 Shaking Incubator, 180LT
W6027650Wiggens WCI-650CH – CO2 Shaking Incubator, 650L
W6027850Wiggens WCI-850CH – CO2 Shaking Incubator, 850L
SKUDescription
W6030501Perforated Shelf kit
W6010402Roller Base
W6031003Stacking Kit
W6011804HEPA Filter
12701Water Pan
W6011806UV Lamp
W6011810Gas Regulator
W6011816Holes for Auxiliary Monitoring
W6011812Divided Door
W6051503LED Lamp
W6051502Power Socket in Chamber

Insights Article: Optimize Your Cell Culture with the Right CO₂ Incubator from Apex Scientific

Product Enquiry Handbook: CO₂ Incubators

Technical Specifications Sheet – WCI-180S

Technical Specifications Sheet – WCI-650CH

Technical Specifications Sheet – WCI-850CH

Operating Manual – WCI-180S

Operating Manual – WCI-650/850CH
