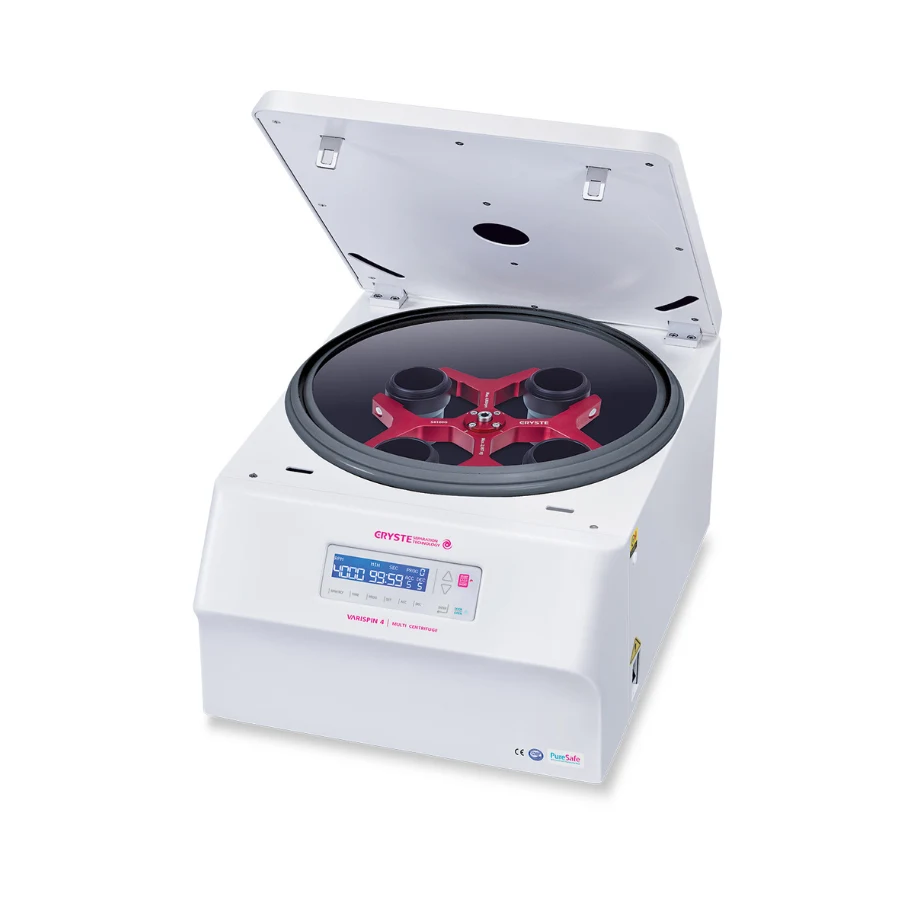

Clinical Centrifuge – Varispin 4

The Clinical Centrifuge Varispin 4 by Cryste is a reliable, low-speed centrifuge ideal for clinical and research laboratories. Reaching speeds of up to 4000 rpm, this compact Clinical Centrifuge supports a variety of rotor options and is compatible with tubes ranging from 5 ml to 100 ml. Whether you’re processing blood, urine, or other biological samples, it delivers consistent and safe performance.

Available from Apex Scientific in South Africa, the Varispin 4 offers flexible configurations to suit different lab workflows. To learn how this Clinical Centrifuge can support your research or diagnostics, explore our full product selection and visit our Insights page for helpful articles and expert guidance.

The Varispin 4 – Clinical Centrifuge by Cryste is a versatile solution suitable for a variety of applications at lower speeds. This centrifuge is designed to enhance efficiency and maximize workspace in any laboratory.



Compact Design & Wide Range of Application

The Varispin 4 features a compact design, making it an excellent fit for most worktables. Its ability to support a wide range of rotor options ensures flexibility for different laboratory needs.



Excellent Visibility of Controller

Equipped with a blue LCD screen and clear white characters, the Varispin 4 offers excellent visibility for process monitoring. This feature allows scientists to easily track the progress of their centrifugation processes. Additionally, the easy-to-use touchpad facilitates seamless operation, enabling scientists to focus on their research without distraction. The intuitive interface ensures that users can quickly adjust settings and monitor performance with ease.



A Variety of Tubes Applicable

This clinical centrifuge accommodates various tube sizes, ranging from 5ml to 100ml. It is an ideal choice for laboratories that require adaptability in their equipment.

For additional information and helpful tips, explore our article, The Ultimate Guide to Finding the Right Centrifuge for Your Lab on the insights page at Apex Scientific. There, you’ll find a collection of informative articles that explain our products and how they apply across different laboratory workflows.

Max. RPM4,000RPM(Angle Rotor)4,000RPM(Swing Rotor)
Max. RCF2,689 xg2,987 xg
Max. Capacity15ml x 24100ml x 4
Accel / Decel phase0 ~ 5 (6set)0 ~ 5 (6 sets)
Noise Level≤60dB≤60dB
Set Time99 min 59sec or continuous99 min 59sec or continuous
Time CountFrom start / From set-up RPMFrom start / From set-up RPM
Program10 memory10 memory
DisplayBlue LCDBlue LCD
RPM Range400 to 4,000 RPM400 to 4,000 RPM
Available Rotor Quantity55
Power SupplyV4-MBAC 230V ± 10%, 50-60Hz, 1PhaseAC 230V ± 10%, 50-60Hz, 1Phase
V4-MBTAC120V ± 10%, 50-60Hz, 1PhaseAC120V ± 10%, 50-60Hz, 1Phase
Power Consumption1KW1KW
Dimension(W x D x H)415 x 554 x 311 mm (H:724mm with open lid)415 x 554 x 311 mm (H:724mm with open lid)
Weight (without rotor)25kg25kg

Angle Rotors

AL2415GF15A-3F15A-5
Fixed Angle Rotor ∠ 45′
24 x 15ml
Radius(mm) : In 131
Out 144.5
Volume (ml)35101515 Conical
Number per rack / rotor2424242424
Adaptor bore (mm)13.513.5181818
Max. height for use(mm)115139139120120
RPM4,0004,0004,0004,0004,000
Radius (mm)In 111 Out 124.5In 219.4 out 142.9In 131 out 144.5In 131 Out 144.5In 125.5 Out 139
RCFIn 1,986 Out 2,227In 2,315 Out 2,556In 2,343 Out 2,585In 2,343 Out 2,585In 2,245 Out 2,486



AL1615GF15A-3F15A-5
Fixed Angle Rotor ∠ 45′
16 x 15ml
Radius(mm) : 150.3
Volume (ml)35101515 Conical
Number per rack / rotor1616161616
Adaptor bore (mm)13.513.5181818
Max. height for use(mm)130152136136136
RPM4,0004,0004,0004,0004,000
Radius (mm)130.3148.7150.3150.3144.8
RCF2,3312,6602,6892,6892,590



 Swing Out Rotors



S4100GB100
S100T-1.5-6S100T-5-5S100T-10-4S100T-15-3S100T-15C-3S100A-50S100A-50CS100A-85S100A-100
Swing Out Rotor
Max. RPM : 4,000
Radius(mm) : 167
Max RCF : 2,987
Volume (ml)1.55101515 Conical5050 Conical85100
Number per rack / rotor6/245/204/163/123/121/41/41/41/4
Adaptor bore (mm)1113.51617.51729.53038.544
Max. height for use(mm)130130130130133130133130130
RPM4,0004,0004,0004,0004,0004,0004,0004,0004,000
Radius (mm)164164164164167164167164164
RCF2,9342,9342,9342,9342,9872,9342,9872,9342,934



S650GB50
S50A-15CS50A-15S50A-50C
Swing Out Rotor
Max. RPM : 4,000
Radius(mm) : 167
Max RCF : 2,987
Volume (ml)15 Conical1550 Conical50
Number per rack / rotor1/61/61/61/6
Adaptor bore (mm)1717.530
Max. height for use(mm)126123126126
RPM4,0004,0004,0004,000
Radius (mm)167164167167
RCF2,9872,9342,9872,987



S2G-MTP
Swing Out Rotor
Max. RPM : 4,000
Radius(mm) : 112
Max RCF : 2,003
Volume (ml)MTPDWP
Number per rack / rotor2/41/2
Adaptor bore (mm)
Max. height for use(mm)
RPM4,0004,000
Radius (mm)112112
RCF2,0032,003
SKUDescription
CS-C-G4-MBVARISPIN 4 – 230V±10%, 50-60Hz, 1Phase, Eu Plug, 415x554x311mm, 25Kg

Angle Rotor

SKUDescription
CS-C-G-10010AL2415G – 15ml x 16 fixed angle rotor with 15ml stainless steel sleeves (Max 4,000RPM)
CS-C-G-10020AL1615G – 15ml x 24 fixed angle rotor with 15ml stainless steel sleeves (Max 4,000RPM)



Swing Out Rotor

SKUDescription
CS-C-G-20010S4100G – 100ml 4-wing swing rotor without buckets (Max 4,000RPM)
CS-C-G-20020S650G – 50ml 6-wing swing rotor without buckets (Max 4,000RPM)
CS-C-G-20039S2G – MTP – 2-wing micro plate swing rotor (Max 4,000RPM)
