Chemical Safety Cabinets – Aspirated and Filtered

Aspirated and Filtered Chemical Storage Cabinet solutions from Labor Security Systems offer advanced protection for acid and base chemicals in your laboratory. Designed for both undercounter and tall-unit applications, these cabinets provide safe, filtered storage of corrosive substances while maintaining compliance with international standards.

Ideal for scientific environments across South Africa, each cabinet ensures long-term durability and user safety. Trust Apex Scientific to deliver certified equipment built for rigorous lab demands. Explore our range and enhance your chemical safety strategy today.

Aspirated and Filtered Chemical Storage Cabinet for Laboratory Safety

The Aspirated and Filtered Chemical Storage Cabinet by Labor Security Systems is designed to provide secure, compliant storage of corrosive acids and bases in laboratories across South Africa. Built for scientists who prioritise both safety and efficiency, these cabinets combine high standards with modular versatility—making them a vital part of any laboratory setup.



Wide Range of Models for Every Lab Need

Apex Scientific offers a tailored selection of models suitable for undercounter, standard, and tall cabinet configurations. Each cabinet is built using a monolithic sealed steel design and finished with epoxy acid-resistant powder coatings. In addition, a high-temperature curing process ensures strong resistance to harsh chemical conditions and long-term durability.



Certified Safety and Compliance

All cabinets meet the safety requirements of EN 61010-1, EN 16121, and EN 16122, and are certified under PPP 52125 A. To ensure safe chemical storage, they include the following features:

  • Separate compartments for acids and bases to prevent chemical reactions
  • Tray-style shelves and watertight basins with spill containment up to 44 L (depending on the model)
  • Activated charcoal Carbox® filter with a Cunctator® electronic replacement alert
  • Thermally protected electro-aspirator, compliant with EN 60335 standards
  • Secure locking systems, anti-fall shelf locks, and concealed hinges for added protection



Moreover, select models such as the AA 120 NEW include advanced features like E-FLOW® energy-saving fan control and acoustic door alarms for improved efficiency and safety.



Designed for the Scientific Workflow

The doors open to 180°, allowing easy shelf access and removal. Certified palletised bases simplify transport and relocation. In addition, built-in grounding systems reduce static discharge risk, and all safety labels comply with ISO 3864 and DIN 4844 standards.

View our range:

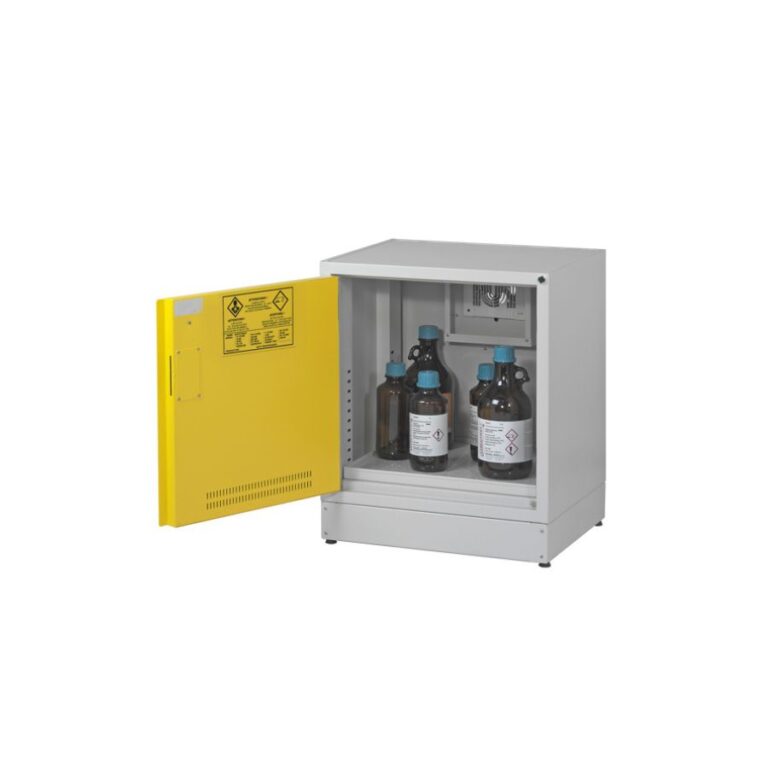

Chemical Safety Cabinet, Underbench - A 600/50
Underbench cabinet for chemicals, acids and bases width 600 mm - A 600/50

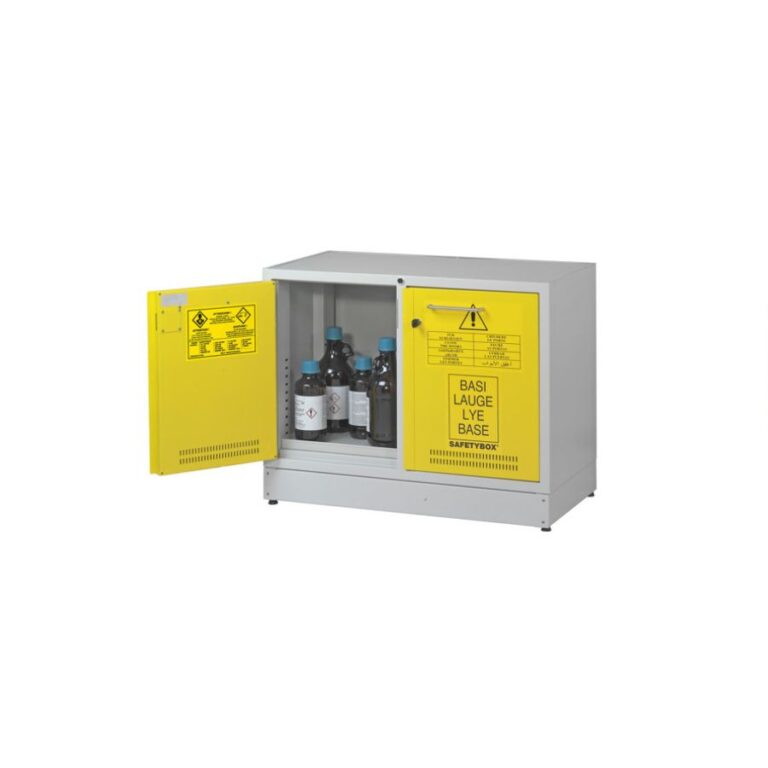

Chemical Safety Cabinet, Underbench – AB 900/50
Underbench cabinet for chemicals, acids and bases width 900 mm - AB 900/50

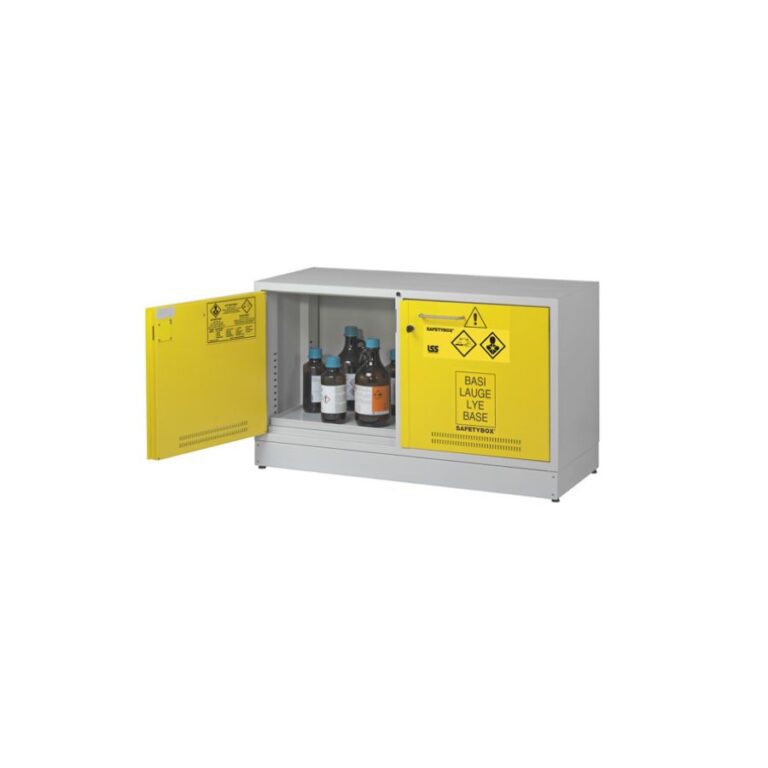

Chemical Safety Cabinet, Underbench – AB 1200/50
Underbench cabinet for chemicals, acids and bases width 1200 mm - AB 1200/50

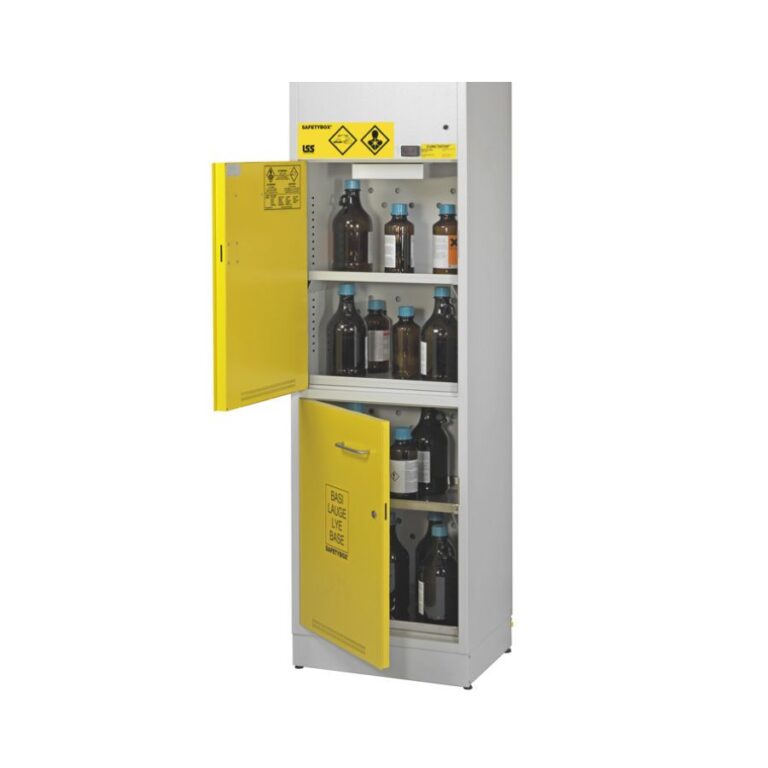

Chemical Safety Cabinet with Filtration – AB 600
Cabinet for chemicals, acids and bases width 600 mm - AB 600

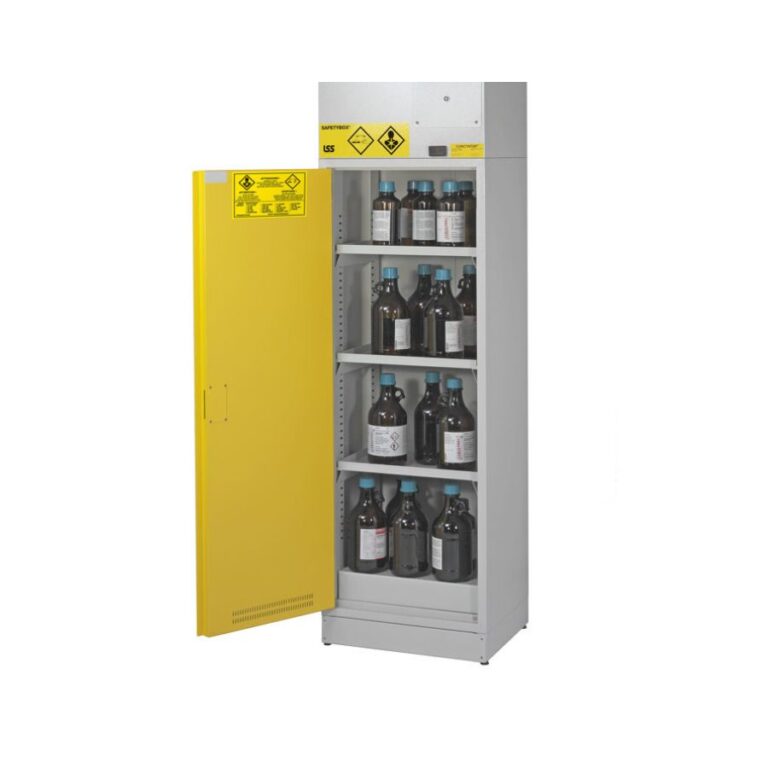

Chemical Safety Cabinet with Filtration – AA 600
Cabinet for chemicals, acids and bases width 600 mm - AA 600
Chemical Safety Cabinet with Filtration – AB 1100
Cabinet for chemicals, acids and bases width 1100 mm - AB 1100

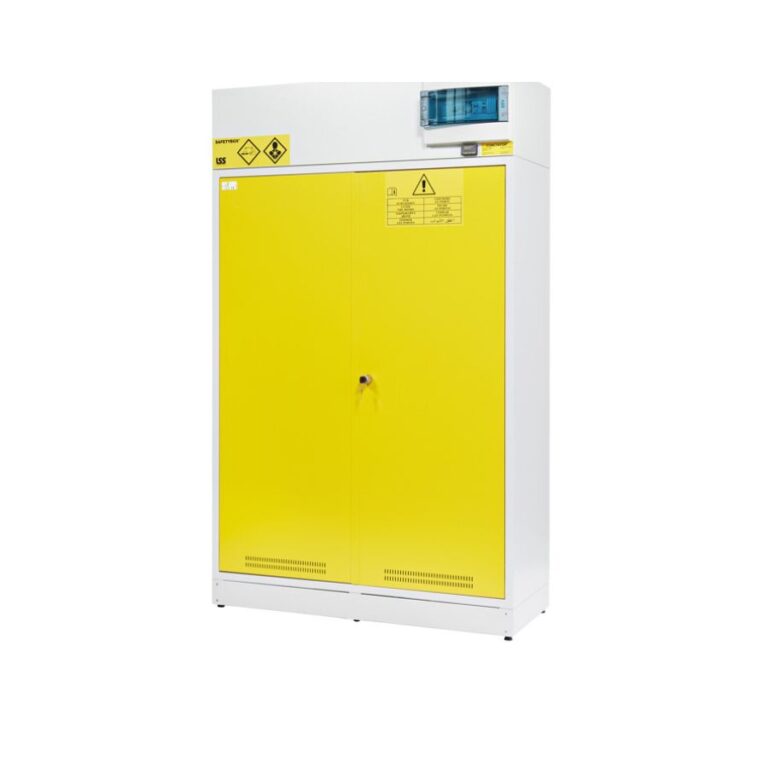

Chemical Safety Cabinet with Filtration – AAF 1200 NEW
Cabinet for chemicals, acids and bases width 1200 mm - AAF 1200 NEW

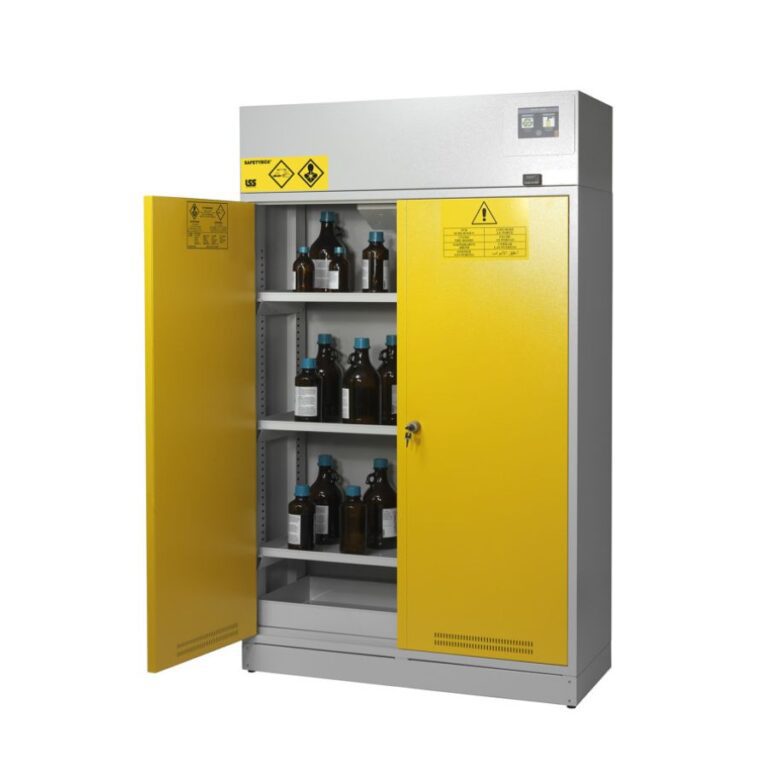

Chemical Safety Cabinet with Filtration – AA 120 NEW
Cabinet for chemicals, acids and bases width 1200 mm - AA 120 NEW

As a trusted laboratory supplier in South Africa, Apex Scientific provides expert guidance, ongoing support, and lifetime warranties on all chemical safety storage cabinets. Our goal is to help you meet compliance requirements while improving lab safety and productivity.

Accessories


Apex Scientific is proud to supply certified chemical and flammable storage equipment to laboratories throughout South Africa. Explore our full range and visit our Insights page to read the article: Essential Considerations for Chemicals, Acids, and Bases Safety Storage Cabinets.

Undercounter

ModelA 600/50AB 900/50AB 1200/50
External Dimensions (WxDxH)600X500x700 mm900x500x700 mm1200x500x700 mm
Internal Dimensions (WxDxH)530x465x555 mm450+450x465x555 mm530+530x465x555 mm
Weight45 Kg55 Kg70 Kg
Total Volume~147 lt~224 lt~295 lt
Shelf capacity100 kg100 kg100 kg



Single Door Tall Units

ModelAB 600AA 600
External Dimensions (WxDxH)600x500x1998 mm600x500x1998 mm
Internal Dimensions (WxDxH)520x440x 765+726 mm530x450x1500 mm
Weight100 Kg95 Kg
Total Volume~341 lt~357 lt
Shelf capacity100 kg100 kg
Compartments21



Double Door Units

ModelAB 1100AAF 120 NEWAA 120 NEW
External Dimensions (WxDxH)1100x500x1175 mm1200x500x1998 mm1200x500x1998 mm
Internal Dimensions (WxDxH)490+490x465x1020 mm1120x450x1500 mm1120x450x1500 mm
Weight108 Kg155 Kg155 Kg
Total Volume~464 lt~766 lt~766 lt
Shelf capacity100 kg100 kg100 kg
EFlowNoNoYes
CodeModelDescriptionDimensions WxDxH (mm)
F007SPARE FILTERSpare activated charcoal filter with CUNCTATOR®
KIT FINTERNAL FILTRATION KITNew internal filtration system with activated charcoal filter cell (F007) and CUNCTATOR® (for inflammable compartment)
CTT09CUNCTATOR® (**)Electronic system for replacement of filters – 9 months
TD005THERMIC DOOR’S LOCK WITH AUTOMATIC RELEASEThermic device for closing doors at 50°C1 FOR EACH DOOR
KIT03EXHAUST FUMES CONVEYORexhaust kit converter from the top just for underbench KEMFIRE
KIT03BEXHAUST FUMES CONVEYORexhaust kit converter from the top just for KEMFIRE 1100 A
KIT03BBEXHAUST FUMES CONVEYORexhaust kit converter from the top just for KEMFIRE 600 A
KIT05PASSING SYSTEMCertified passing system to pour waste liquids for underbench cabinets
KIT05.45BENT PASSING SYSTEMCertified passing system to pour waste liquids for underbench cabinets with 45 ° inclination

Insights Article: Essential Considerations for Chemicals, Acids, and Bases Safety Storage Cabinets

Product Enquiry Handbook: Acid Corrosive Chemical Storage Cabinet

Technical Specifications Sheet – Undercounter A 600/50

Technical Specifications Sheet – Undercounter AB 900/50

Technical Specifications Sheet – Undercounter AB 1200/50

Technical Specifications Sheet – Single Door Tall Unit AB 600

Technical Specifications Sheet – Single Door Tall Unit AA 600

Technical Specifications Sheet – Double Door AB 1100

Technical Specifications Sheet – Double Door AAF 120 NEW

Technical Specifications Sheet – Double Door AA 120 NEW

Operating Manual
