Centrifuge - Varispin 12 | Apex Scientific South Africa

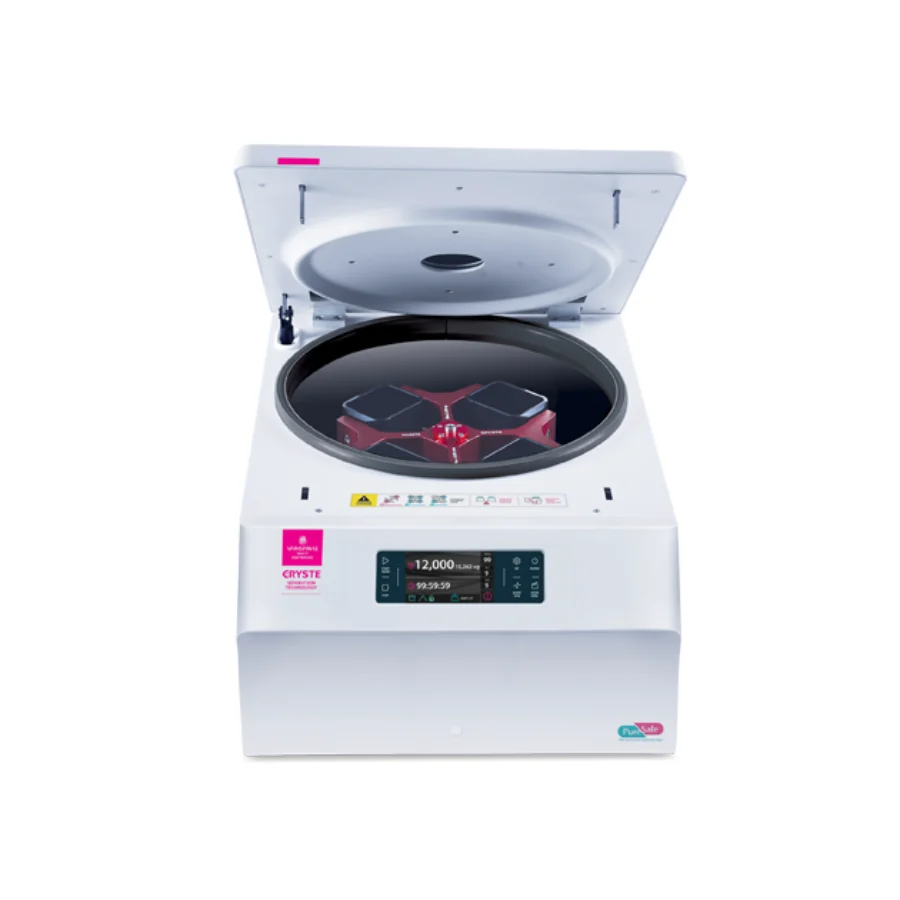

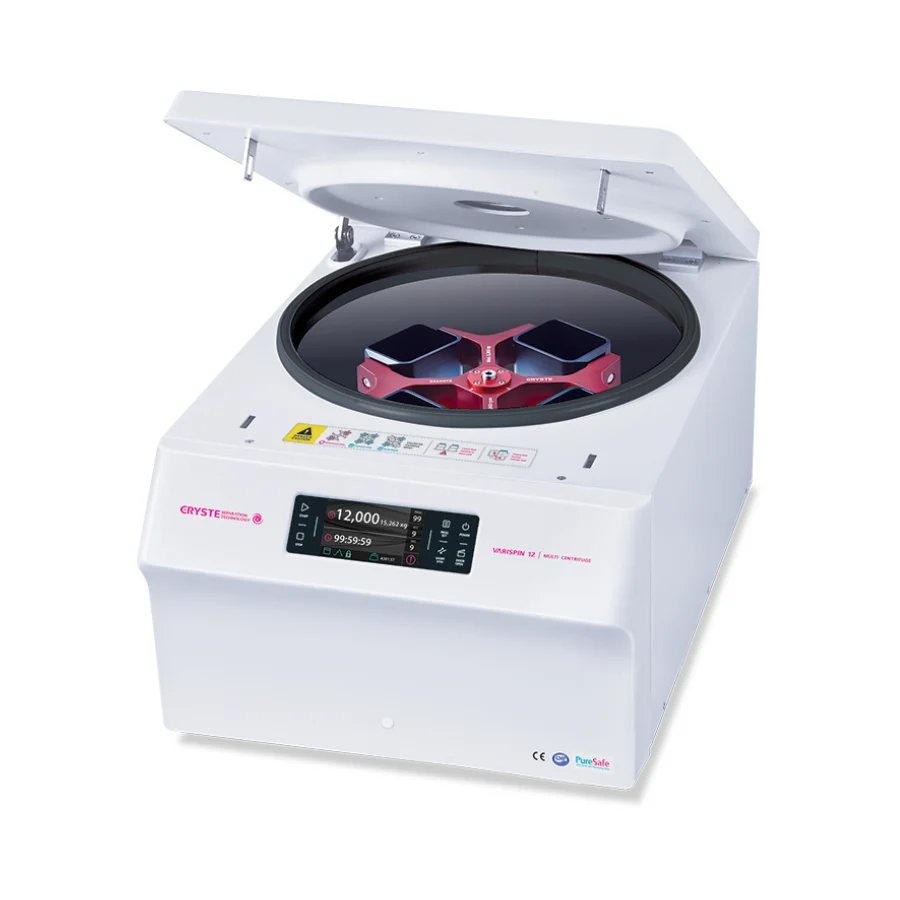

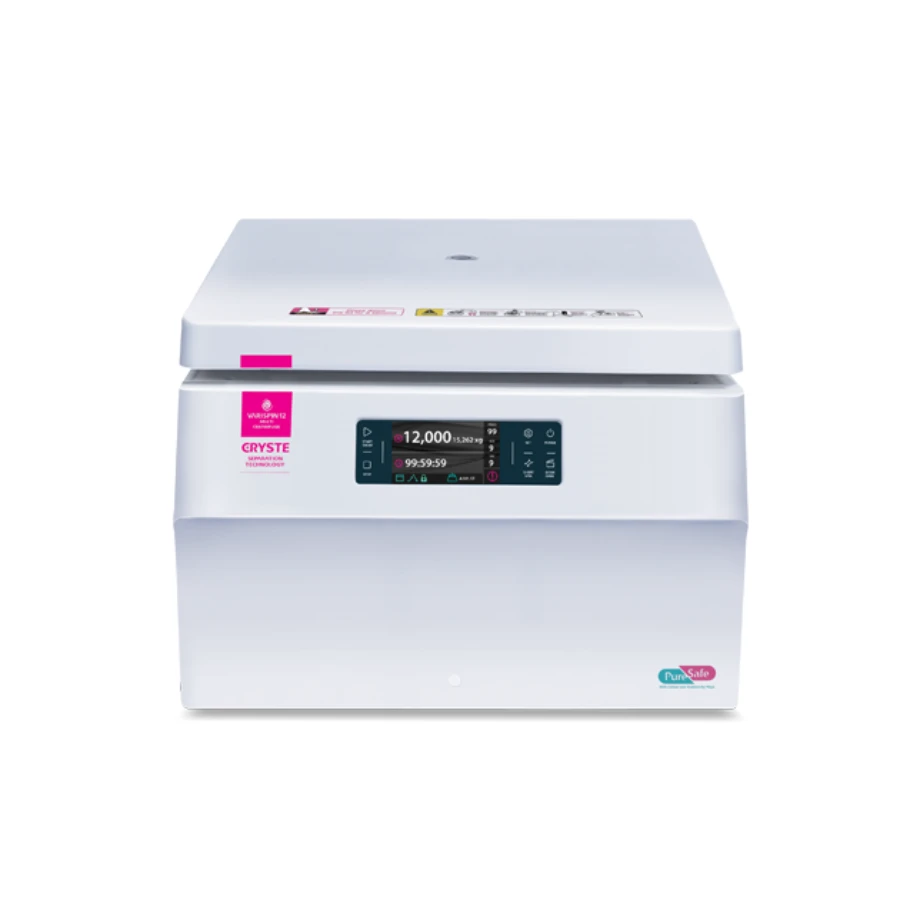

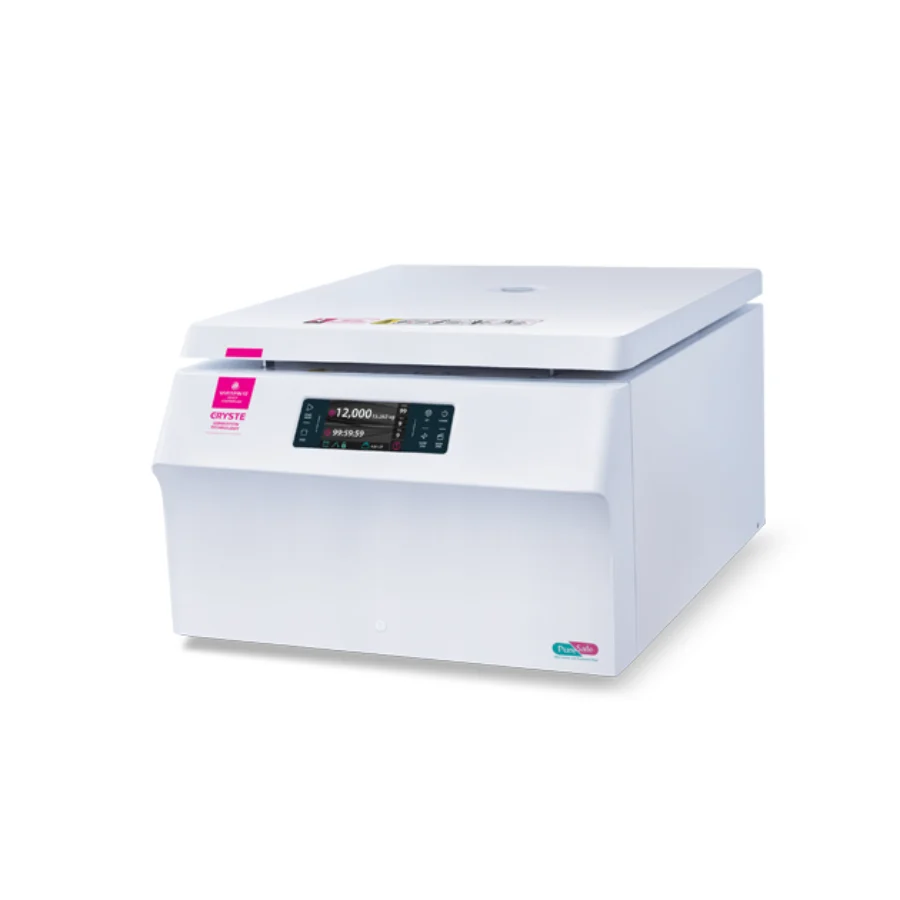

The Varispin 12 – Centrifuge by Cryste is designed to optimize space while delivering exceptional performance. This model makes efficient use of worktable space, making it ideal for any laboratory setup.

User-Friendly Touch Controller

Equipped with a 4.3” full-color touch LCD controller, the Varispin 12 allows for easy parameter adjustments. All set points are visible at a glance, ensuring straightforward operation. The touch pad lock feature prevents any accidental changes during use, guaranteeing consistent results.

Versatile Tube Compatibility

This centrifuge accommodates a wide range of tube sizes, from 0.2ml to 250ml. This flexibility is crucial for various laboratory applications, enhancing your research capabilities.

Advanced Design for Optimal Performance

The effective air dynamics and optimized inner design minimize rotor frictional heat, preventing overheating during operation. This ensures reliable performance for sensitive samples, maintaining the integrity of your research.

Bio-containment Options

For those handling hazardous materials, the Varispin 12 features a bio-containment rotor/bucket option. This ensures aerosol-tightness, providing an extra layer of safety. Additionally, the biocontainment sealing buckets are certified by TUV NORD, complying with IEC61010-2-020:2016 Annex AA.

Ideal Security Features

With password protection, unauthorized access is prohibited, ensuring the security of your laboratory operations.

For more information and helpful resources, read our article, The Ultimate Guide to Finding the Right Centrifuge for Your Lab on the insights page at Apex Scientific. You’ll also find a range of detailed articles to help you better understand our products and their applications in the laboratory.

Model		Varispin 12
Max. RPM		12,000RPM(Angle Rotor)	4,000RPM(Swing Rotor)
Max. RCF		16,647 xg	3,461 xg
Max. Capacity		85ml x 6	250ml x 4
Accel / Decel phase		0 ~ 9 (10set)
Noise Level		≤60dB
Set Time		99 hour 59 min 59sec or continuous
Time Count		From start / From set-up RPM
Program		100 memory
Rotor ID		Automatic Recognition
Display		4.3” LCD Touch Screen
Display message on screen		RPM, RCF, Time, Door open/close, ACC, DEC, Rotor ID, Program, key lock
RPM Range		400 to 12,000 RPM
Available Rotor Quantity		11
	V12-MB	AC 230V ± 10%, 50-60Hz, 1Phase
Power Supply	V12-MBT	AC 120V ± 10%, 50-60Hz, 1Phase
	V12-MBJ	AC 100V ± 10%, 50-60Hz, 1Phase
Power Consumption		1,3KW
Dimension(W x D x H)		496 x 657 x 360 mm (H:895mm with open lid)
Weight (without rotor)		55kg

Angle Rotor

Rotor
Rotor	Fixed Angle Rotor ∠ 45′ 48 x 0.2ml Radius(mm) : 83.5		Fixed Angle Rotor ∠ 45′ 30 x 1.5ml Radius(mm) : 94.8			Fixed Angle Rotor ∠ 45′ 30 x 1.5ml Radius(mm) : 94.8			Fixed Angle Rotor ∠ 45′ 48 x 1.5ml Radius(mm) : 94.8
Item	A480.2T		A301.5T			AS301.5TX 1)			A481.5T
Tube
Volume (ml)	0.2	0.2ml Strips	0.2	0.5	1.5 / 2.0	0.2	0.5	1.5 / 2.0	0.2	0.5	1.5 / 2.0
Adaptor / tube rack
Item			F1.5A-0.2	F1.5A-0.5		F1.5A-0.2	F1.5A-0.5		F1.5A-0.2	F1.5A-0.5
Number per rack / rotor	48	6	30	30	30	30	30	30	48	48	48
Adaptor bore (mm)	6.5	6.5	6.5	8	11	6.5	8	11	6.5	8	11
Max. height for use(mm)	–	–	44	52	61	44	52	61	In 51 Out 44	In 62 Out 54	In 70 Out 61
RPM	12,000	12,000	12,000	12,000	12,000	12,000	12,000	12,000	12,000	12,000	12,000
Radius (mm)	83.5	83.5	80.3	86.7	94.8	80.3	86.7	94.8	In70.3 Out80.3	In76.7 Out86.7	In84.8 Out94.8
RCF	13,443	13,443	12,928	13,958	15,262	12,928	13,958	15,262	In 11,318 Out 12,928	In 12,348 Out 13,958	In 13,652 Out 15,262

Rotor
Rotor	Fixde Angle rotor ∠ 45′ 24 x 1.5ml Radius(mm) : 84.8
Item	A241.5T
Tube
Volume (ml)	0.2	0.5	1.5 / 2.0
Adaptor / tube rack
Item	F1.5A-0.2	F1.5A-0.5
Number per rack / rotor	24	24	24
Adaptor bore (mm)	6.5	8	11.1
Max. height for use(mm)	44	51	61
RPM	12,000	12,000	12,000
Radius (mm)	70.3	76.7	84.8
RCF	11,318	12,348	13,652

Rotor
Rotor	Fixed Angle Rotor ∠ 28′ 12 x 15ml Radius(mm) : 97.1	Fixed Angle Rotor ∠ 25′ 12 x 15ml Conical Radius(mm) : 100.9	Fixed Angle Rotor ∠ 30′ 6 x 50ml Radius(mm) : 99.9		Fixed Angle Rotor ∠ 25′ 6 X 50ml Conical Radius(mm) : 95.7
Item	A1215T	A1215TC	A650T		A650TC
Tube
Volume (ml)	15(16)	15 Conical	15 Conical	50	15 Conical	50 Conical
Adaptor / tube rack
Item			F50A-15C		F50CA-15C
Number per rack / rotor	12	12	6	6	6	6
Adaptor bore (mm)	19	17	17	29.5	17	30
Max. height for use(mm)	117	129	122	120	124	121
RPM	12,000	12,000	12,000	12,000	12,000	12,000
Radius (mm)	97.1	100.9	94.3	99.9	91.3	95.7
RCF	15,632	16,244	15,182	16,083	14,699	15,407

Rotor
Rotor	Fixed Angle Rotor ∠ 30′ 8 x 50ml Radius(mm) : 103.4		Fixed Angle Rotor ∠ 25′ 6 x 85ml Radius(mm) : 99.8				Fixed Angle Rotor ∠ 25′ 6 x 85ml Radius(mm) : 99.8
Item	A850T		A685T				AS685TX
Tube
Volume (ml)	15 Conical	50	15 Conical	50 Conical	50	85	15 Conical	50 Conical	50	85
Adaptor / tube rack
Item	F50A-15C		F85A-15C	F85A-50C	F85A-50		F85A-15C	F85A-50C	F85A-50
Number per rack / rotor	8	8	6	6	6	6	6	6	6	6
Adaptor bore (mm)	17	29.5	17	30	29	39	17	30	29	39
Max. height for use(mm)	123	120	123	122	118	118	123	122	118	118
RPM	12,000	12,000	12,000	12,000	12,000	12,000	12,000	12,000	12,000	12,000
Radius (mm)	97.8	103.4	90.7	94.7	95.3	99.8	90.7	94.7	95.3	99.8
RCF	15,745	16,647	14,602	15,262	15,343	16,067	14,602	15,262	15,343	16,067

Swing Out Rotor

S4250TE	EB250	EBS250								BW250

		Tested by TUV NORD
	S250ET -3-12	S250ET -5-12	S250ET -10-12	S250ET -15-12	S250ET -15C-9	S250ET -50-4	S250ET -50C-3	S250ET -85-2	S250EA -250

Swing Out Rotor Max. RPM : 4,000 Radius(mm) : 182.5 Max. RCF : 3,265
Volume (ml)	3	5	10	15	15 Conical	50	50 Conical	85	250	MTP	DWT
Number per rack / rotor	12/48	12/48	12/48	12/48	9/36	4/16	3/12	2/8	1/4	4/16	1/4
Adaptor bore (mm)	13.2	13.2	16	17.2	17	29.5	29.5	38.5	62.5	–	–
Max. height for use(mm)	124	124	124	124	127	124	127	124	138	–	–
RPM	4,000	4,000	4,000	4,000	4,000	4,000	4,000	4,000	4,000	4,000	4,000
Radius (mm)	177.5	177.5	177.5	177.5	180.5	177.5	180.5	177.5	180.5	153.5	153.5
RCF	3,175	3,175	3,175	3,175	3,232	3,175	3,229	3,175	3,229	2,746	2,746

S4250T	B250

	S250T-5-8	S250T-10-7	S250T-15-5	S250T-15C-4	S250T-50-2	S250A-50C

Swing Out Rotor Max. RPM : 4,500 Radius(mm) : 193.5 Max RCF : 4,381
Volume (ml)	5	10	15	15 Conical	50	50 Conical	250
Number per rack / rotor	8/32	7/28	5/20	4/16	2/8	1/4	1/4
Adaptor bore (mm)	13.5	16	17.5	17	29.5	30	62
Max. height for use(mm)	145	145	145	148	145	150	150
RPM	4,500	4,500	4,500	4,500	4,500	4,500	4,500
Radius (mm)	190.5	190.5	190.5	193.5	190.5	193.5	193.5
RCF	4,313	4,313	4,313	4,381	4,313	4,381	4,381

SKU	Description
CSCT12-MIB	VARISPIN 12 – 230V±10%, 50-60Hz, 1 Phase, Eu Plug, 496x657x360mm, 55Kg

Angle Rotor

SKU	Description
CSC-T10010	A480.2T – 0.2ml x 48 fixed angle rotor for PCR tubes (x6 PCR strips) (Max 12,000RPM)
CSC-T-10020	A301.5T – 1.5/2.0ml x 30 fixed angle rotor (Max 12,000RPM)
CSCT-10040	A481.5T – 1.5/2.0ml x 48 fixed angle rotor (Max 12,000RPM)
CSCT-10050	A1215T – 15ml x 12 fixed angle rotor (Max 12,000RPM)
CSCT-10061	A1215TC – 15ml x 12 fixed angle rotor for conical tubes (Max 12,000RPM)
CSCT-10070	A650T – 50ml x 6 fixed angle rotor (Max 12,000RPM)
CSCT-10081	A650TC – 50ml x 6 fixed angle rotor for conical tubes (Max 12,000RPM)
CSCT-10090	A850T – 50ml x 8 fixed angle rotor (Max 12,000RPM)
CSCT-IOIOO	A685T – 85ml x 6 fixed angle rotor (Max 12,000RPM)
CSCT-10032	AS301.5TX – 1.5/2.0ml x 30 aerosol-tightness fixed angle rotor with Axllock lid mechanism (Max 12,000RPM)
CSCT-10112	AS685TX – 85ml x 6 aerosol-tightness fixed angle rotor with Axllock lid mechanism (Max 12,000RPM)

Swing Out Rotor

SKU	Description
CSCT-20010	S4250TE – 250ml x 4-wing swing rotor for rectangular/micro plate buckets (Max 4,000RPM)
GCT-20020	S4250T – 250ml x 4-wing swing rotor for round buckets (Max 4,000RPM)
