Benchtop Front Loading Autoclave Solutions for Laboratory Sterilization

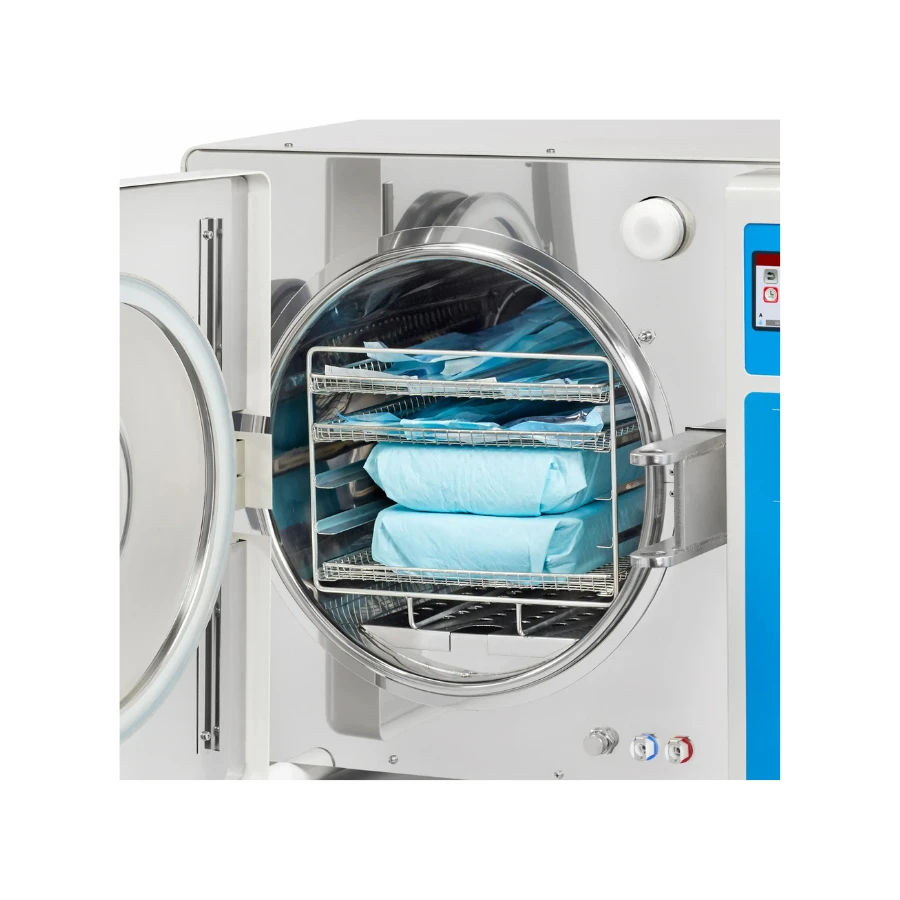

Benchtop Front Loading Autoclave systems from Raypa offer compact, high-performance sterilization for modern laboratory workflows across South Africa. Designed with horizontal chambers and front-access doors, these space-saving units are available in three configurations: without drying, with drying, and with pre-vacuum and drying, delivering versatile solutions for a wide range of scientific applications.
AHS-N Series – Compact and Cost-Effective
The AHS-N Series offers reliable sterilization for glassware, culture media, plastics, and lab waste. These horizontal front-loading autoclaves are easy to install, requiring only a power source and a manually filled water tank—making them ideal for facilities with limited infrastructure. With programmable cycles and robust stainless-steel chambers, this series delivers efficient results without drying functionality.
Fast Sterilizations with Deep Steam Penetration
Achieve fast cycle times with instant steam production from the built-in steam generator. The pre-vacuum phase, featuring multiple vacuum pulses, thoroughly removes air pockets, ensuring effective sterilization of all types of loads.
Advanced features and fully automatic
Touchscreen display with up to 50 programs, mechanical purge and integrated steam generator. Includes bacteriological filter and water tanks. Filling with purified water can be automated. Includes bacteriological filter and water tanks. Filling with purified water can be automated.

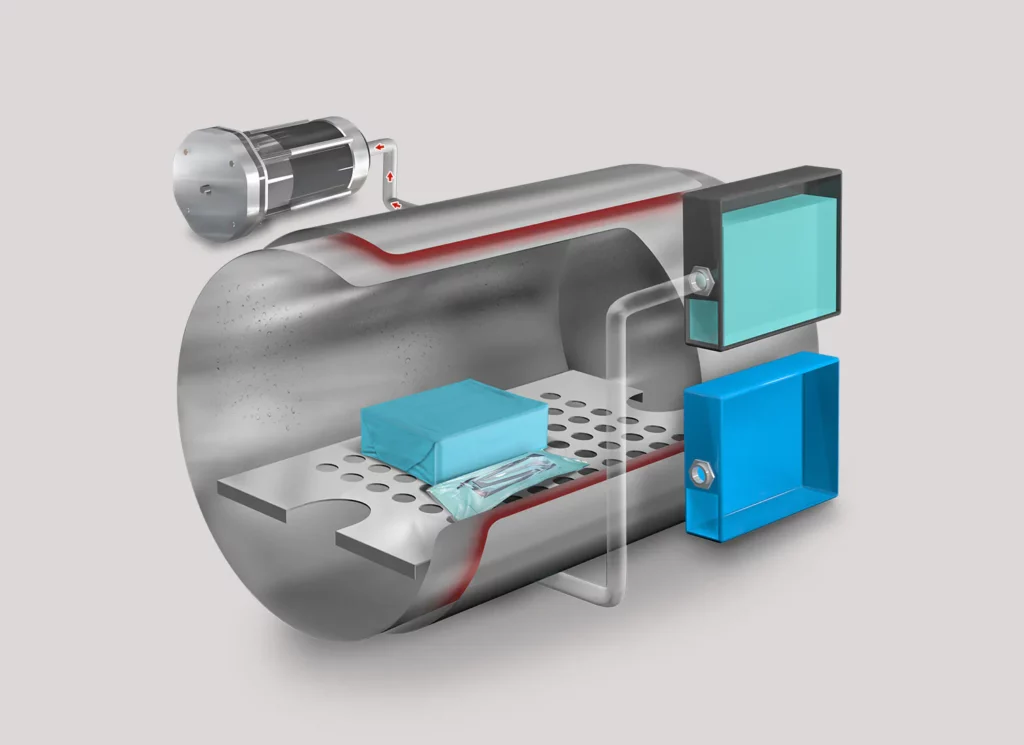

Thoroughly Dries the Load with the Final Drying Function
Thanks to its final drying function using a heating jacket and vacuum pump, the load will be completely dry at the end of the cycle, ensuring safe processing of porous solids and packaged objects. There is no need to dry the load in an external oven, which saves time, energy, and reduces the risk of contamination.
AHS-DRY Series – Integrated Drying for Solid Loads
When drying is essential, the AHS-DRY Series steps up. These models feature a vacuum pump and heating jacket for post-cycle drying of solids, porous items, and complex geometries. With programmable cycles for both solids and liquids, built-in safety systems, and optional core temperature probes, this series boosts efficiency and reduces handling time between cycles.

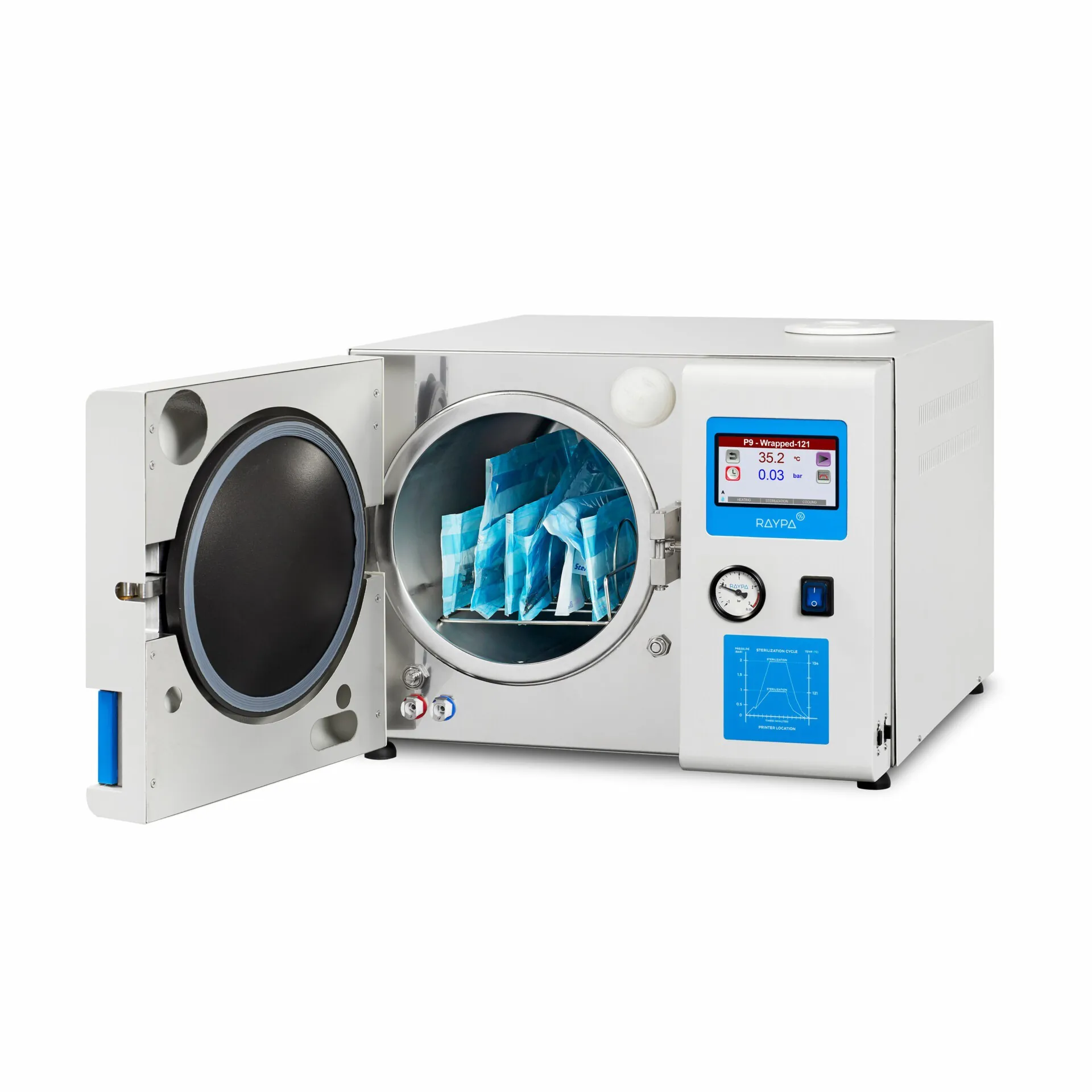

AHS-B Series – Pre-vacuum and Advanced Drying
For the most demanding sterilization tasks, the AHS-B Series combines pre-vacuum air removal with vacuum drying, ensuring full steam penetration and complete drying of wrapped and unwrapped loads. These autoclaves are equipped with 10 customizable programs, a digital interface, and compliance with international standards—making them ideal for research labs, healthcare, and industrial applications.
Built for Scientific Excellence
All models feature:
- Front-loading, horizontal chambers (22L to 79L)
- AISI-316L stainless steel sterilization chambers
- Intuitive LCD or touchscreen displays
- Optional integrated or external printers and data tracking
- Independent water tanks with optional automatic fill systems
- RS-232 connectivity for data logging and PC communication
Safety and Standards Compliance
Raypa’s benchtop autoclaves include essential safety features such as overpressure valves, door interlocks, bacteriological filters, and programmable alarms. Built according to EN-61010, EN-61326, and EU directives, they’re designed for safe, repeatable, and compliant sterilization in any regulated laboratory setting.
Accessories
Trusted by Apex Scientific
As a leading supplier of laboratory equipment in South Africa, Apex Scientific brings you expertly supported sterilization solutions from Raypa. Whether you need simple cycles or advanced drying and vacuum performance, we’ll help you choose the best benchtop front loading autoclave for your lab. Check out our article: Find the Perfect Autoclave for Your Laboratory in South Africa: A Buyer’s Guide
